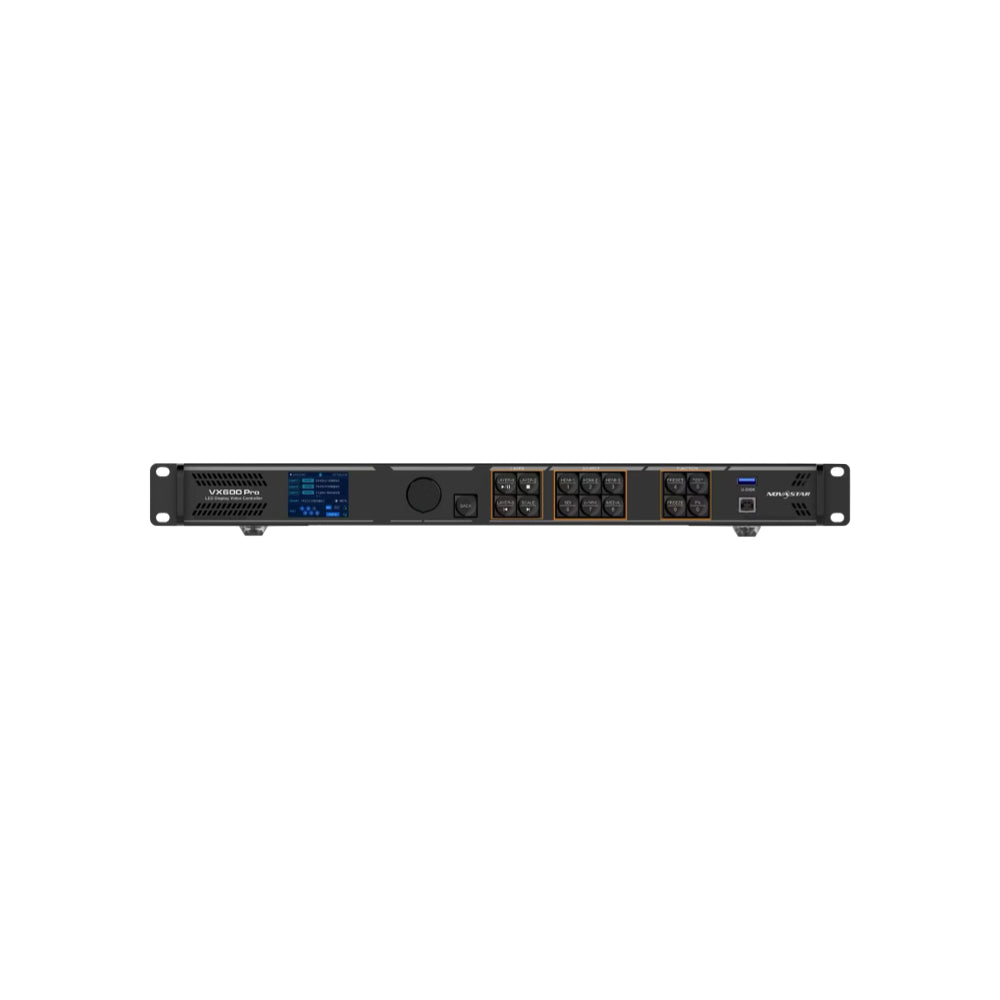

NovaStar VX600 Pro is a professional all-in-one LED video controller combining video processing and LED display control in a single unit.
Designed for LED rental, live events, stage productions and professional AV installations, the VX600 Pro offers powerful video processing, flexible layer management, 10G optical fiber connectivity and professional backup capabilities for reliable LED display operation.
Key Features
-
All-in-one LED Video Processor + Controller
-
Up to 6 layer resources
-
Supports 4K, DL and SL layers
- 10G optical fiber connectivity
- Supports optical transmission and backup
-
Video Controller / Fiber Converter / Bypass operating modes
- Full-link backup for improved system reliability
- Flexible screen configuration and output mapping
-
Supports 4K-class input signals
- Controlled and managed through NovaStar Unico
- Ideal for rental, stage and professional LED applications
NovaStar states that VX600 Pro supports up to six layer resources. The VX Pro series supports 4K (4K×2K@60Hz), DL (4K×1K@60Hz) and SL (2K×1K@60Hz) layers, 10G optical interfaces, and Video Controller, Fiber Converter and Bypass operating modes.
Main Specifications
Model: VX600 Pro
Product Type: All-in-One LED Video Controller
Maximum Layer Resources: 6
Layer Types: 4K / DL / SL
Maximum 4K Layer: 4K × 2K @ 60Hz
Maximum DL Layer: 4K × 1K @ 60Hz
Maximum SL Layer: 2K × 1K @ 60Hz
Optical Interface: 10G
Operating Modes: Video Controller / Fiber Converter / Bypass
Backup: Full-Link Backup
Control Software: NovaStar Unico
The VX Pro family is designed with 4K-class inputs, flexible cabling, fiber transmission, multiple operating modes and full-link backup.
Typical Applications
LED Display Rental
Built for rental companies requiring fast deployment, flexible configuration and reliable backup.
Live Events & Stage Production
Ideal for concerts, touring, conferences and large-scale stage LED displays.
Professional AV Systems
Suitable for corporate events, exhibition spaces, studios and AV integration projects.
Fine-Pitch LED Displays
Flexible processing and screen configuration for professional indoor LED installations.
NovaStar specifically positions the VX Pro series for mid-to-high-end rental, stage control and fine-pitch LED display applications.
Why Choose VX600 Pro?
The VX600 Pro provides a balanced solution for professional LED systems that need powerful video processing without moving to the higher-capacity VX1000 Pro or VX2000 Pro.
By integrating video processing, LED control, fiber connectivity and backup functions into one platform, it helps simplify system configuration while providing the reliability required for professional live productions.
Software & Support
VX600 Pro is supported by NovaStar Unico device control software. NovaStar currently provides the VX600 Pro specification, VX Pro series user manual, quick guide, firmware and Unico software through its official support resources.
NovaStar VX600 Pro Official Product Page
