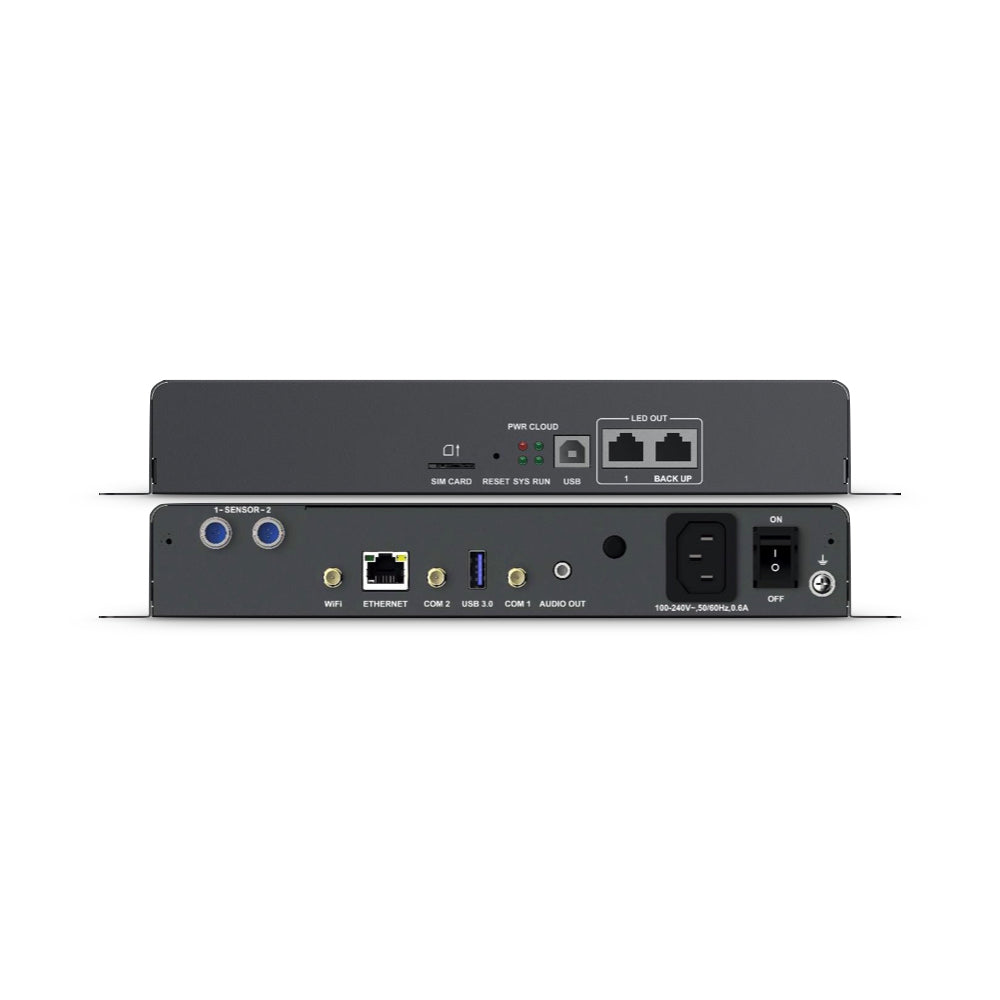

NovaStar TB30 Taurus Multimedia Player for LED Displays

NovaStar TB30 is a compact and powerful multimedia player designed for full-color LED displays, integrating media playback and LED sending/control functions into one device.

The latest TB30 supports a loading capacity of up to 1.3 million pixels, with 2 Gigabit Ethernet outputs, 4K video decoding, 32 GB internal storage, Wi-Fi and optional 4G connectivity.

Designed primarily for LED digital signage, advertising displays, LED posters, retail stores and smart city applications, the TB30 allows users to publish content and remotely manage LED displays using a computer, smartphone or tablet.

Key Features

• Up to 1,300,000 pixels loading capacity
• 2 × Gigabit Ethernet LED outputs
• Maximum standard width: 4096 pixels
• Maximum standard height: 4096 pixels
• Ultra-long screen width up to 23,040 pixels
• Powerful 4K video decoding
• Quad-core ARM A55 1.8 GHz processor
• 1 GB RAM + 32 GB internal storage
• Built-in 2.4 GHz Wi-Fi
• Optional 4G connectivity
• Remote content publishing and screen management
• Multi-screen synchronous playback
• USB playback and storage expansion
• Supports brightness and temperature/humidity sensors
• Stereo audio output
• Compact all-in-one design for commercial LED displays

The key change in V1.2.4 is that both Gigabit Ethernet ports can operate as primary outputs by default, allowing the TB30 to reach the new 1.3-million-pixel loading capacity.

Main Specifications

Model: TB30
Series: NovaStar Taurus Series
Product Type: Multimedia Player / LED Sending Player

Loading Capacity: 1,300,000 Pixels
Maximum Width: 4096 Pixels
Maximum Height: 4096 Pixels
Ultra-Long Screen Maximum Width: 23,040 Pixels
LED Outputs: 2 × Gigabit Ethernet

Processor: Quad-Core ARM A55 @ 1.8 GHz
Video Decoding: H.264 / H.265 4K Video
RAM: 1 GB
Internal Storage: 32 GB

Wi-Fi: 2.4 GHz
4G: Optional 4G Module
Control Ethernet: 1 × Gigabit Ethernet
USB: USB 3.0 Type-A + USB Type-B
Sensor Ports: 2
Audio Output: Stereo Audio

Operating System: Android 11

Input Power: 100–240V~, 50/60Hz
Maximum Power Consumption: 18 W
Recommended Supply Power: 25 W

Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +80°C
IP Rating: IP20

Dimensions: 274.3 × 139.0 × 40.0 mm
Net Weight: Approx. 1.23 kg

The processor, memory, storage, USB, sensor, environmental and physical specifications are also consistent with NovaStar’s preceding official TB30 specifications.

4K Media Playback

The TB30 features a quad-core ARM A55 1.8 GHz processor with hardware decoding for high-resolution H.264/H.265 video.

This provides smooth multimedia playback for commercial advertising, digital signage and other content-rich LED display applications.

Remote LED Screen Management

The TB30 is designed for standalone and remotely managed LED display systems.

Users can publish content and control displays from a:

• Computer
• Smartphone
• Tablet

When connected to the Internet, LED screens can be remotely managed through NovaStar’s cloud-based publishing and monitoring platform, allowing content updates and screen management from virtually anywhere.

Flexible Network Connectivity

The TB30 provides multiple ways to connect and manage the LED display:

Ethernet
Connect directly to a computer, LAN or public network.

Wi-Fi
Built-in Wi-Fi supports AP and STA modes for convenient local or network control.

4G
An optional 4G module enables remote management where wired Internet or Wi-Fi is unavailable.

This makes the TB30 especially useful for distributed commercial LED displays installed across different locations.

Typical Applications

LED Posters & Digital Signage
Ideal for standalone advertising screens and LED poster displays.

Retail & Chain Stores
Remotely publish and update promotional content across multiple locations.

Commercial LED Displays
Suitable for shopping malls, restaurants, hotels, showrooms and corporate spaces.

Outdoor Advertising Displays
Ideal as the control and playback device inside outdoor LED advertising systems.

Smart City Applications
Suitable for lamp-post screens, information displays, door-head displays and other distributed LED signage systems.

NovaStar specifically positions the TB30 for commercial displays and smart-city applications including fixed displays, lamp-post displays, chain stores, advertising players, retail displays, door-head displays and shelf displays.

Why Choose NovaStar TB30?

The latest TB30 V1.2.4 is particularly attractive because its maximum loading capacity has increased to 1.3 million pixels, giving this compact Taurus player significantly more flexibility than earlier TB30 specifications.

With 2 Gigabit LED outputs, 4K decoding, 32 GB storage, Wi-Fi, optional 4G and cloud-based remote management, it is an excellent controller for small-to-medium commercial LED displays that need reliable standalone playback and remote content management.
