Description:

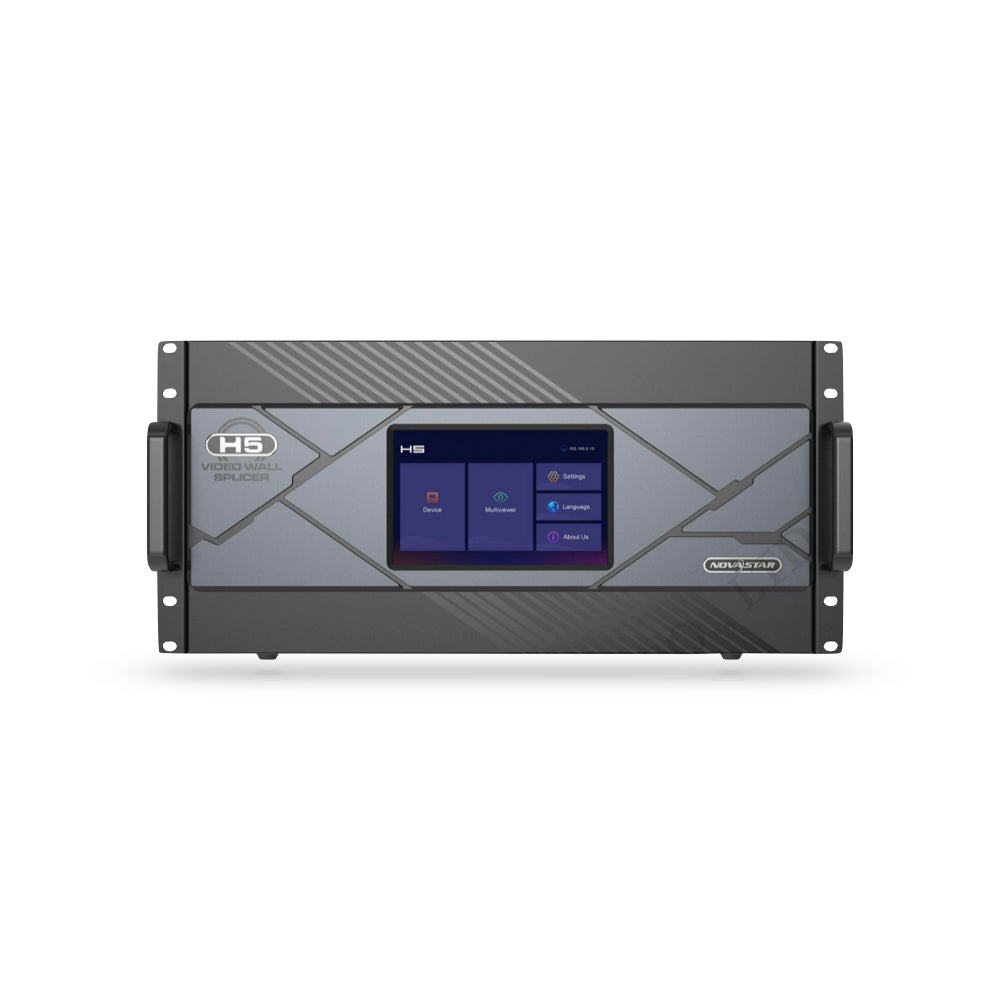

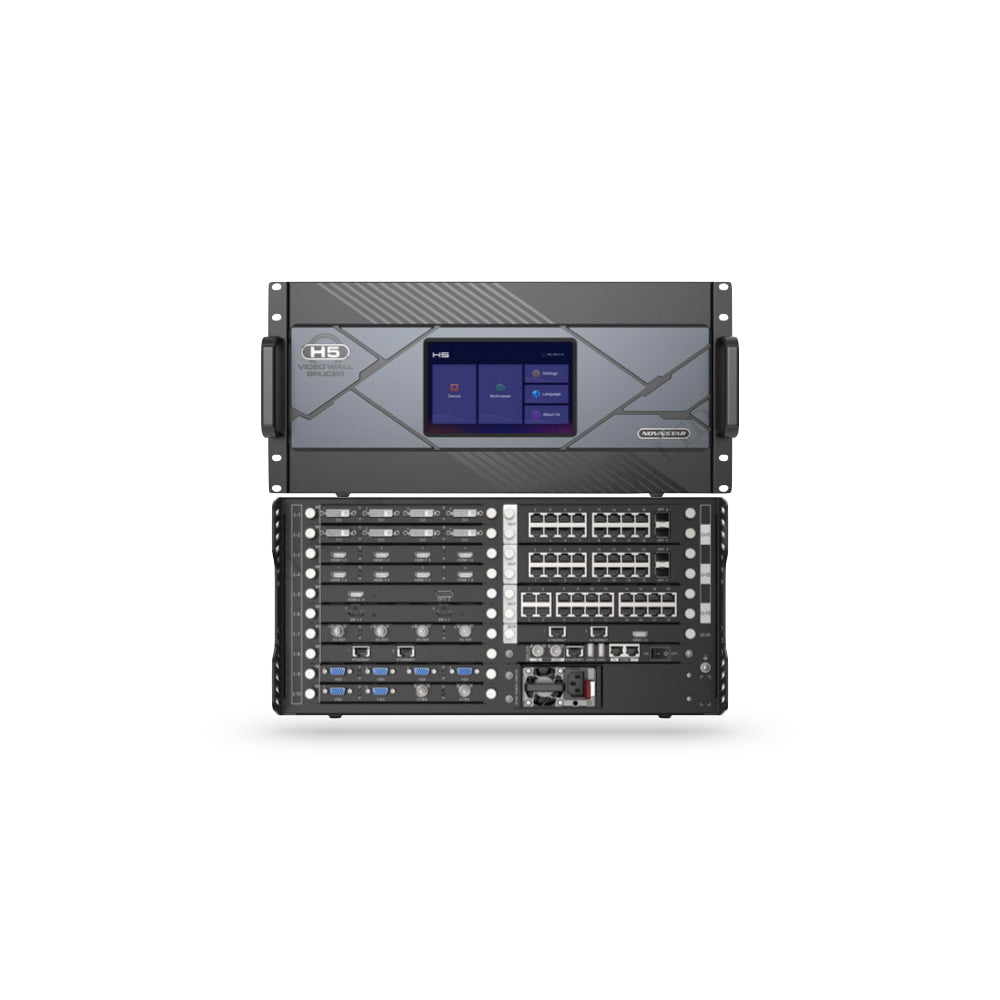

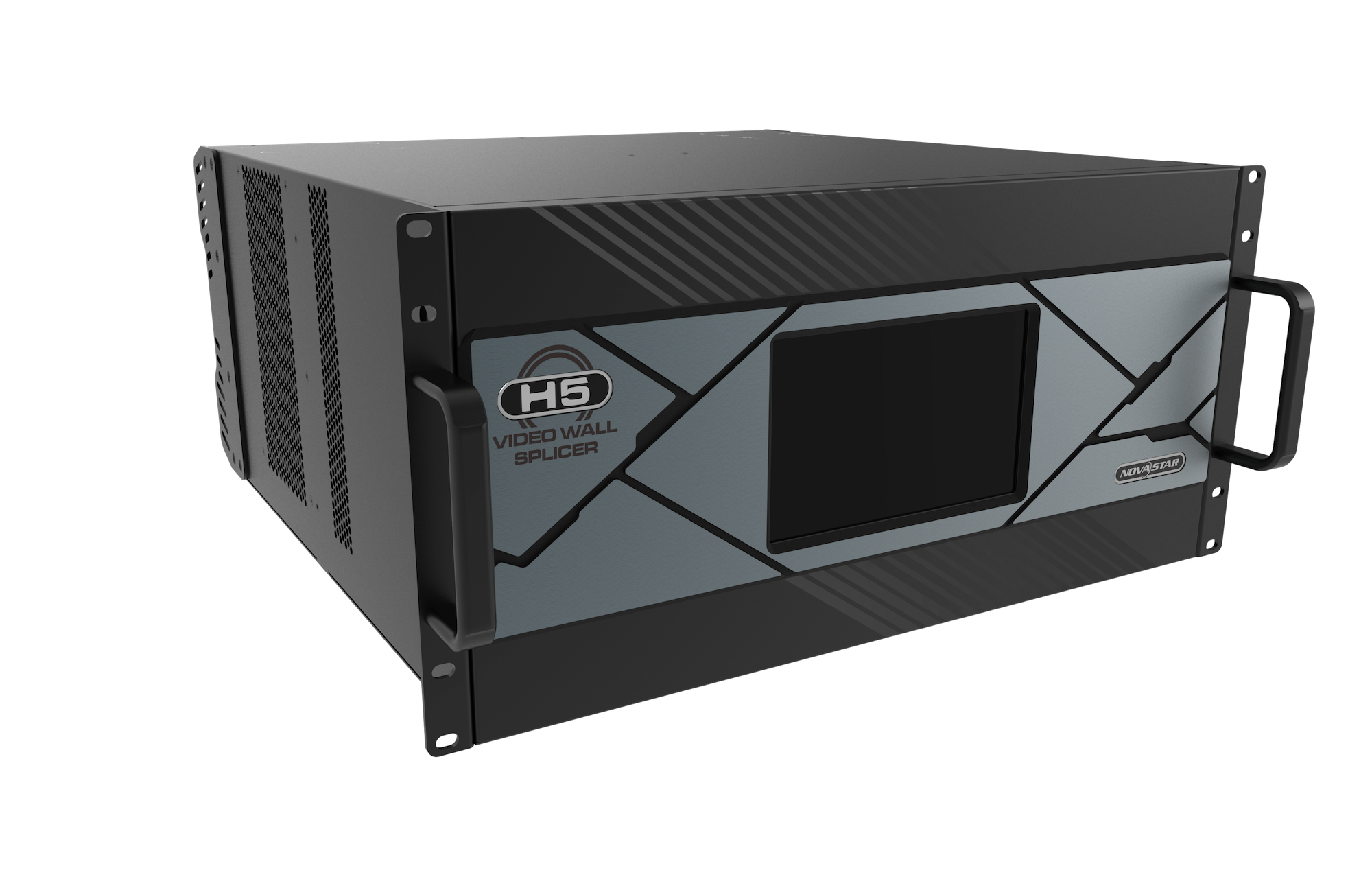

The H5 is NovaStar’s newest generation of video wall splicer, featuring excellent image quality and designed especially for fine-pitch LED screens. The H5 can work as splicing processors that integrate both video processing and video control capabilities or work as pure splicing processors. The whole unit adopts a modular and plug-in design and allows for flexible configuration and hot swapping of input and output cards. Thanks to excellent features and stable performance, the H5 can be widely used in a variety of applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake prediction, enterprise management, the metallurgy of steel, banking and finance, national defense, public security traffic management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage rental applications.

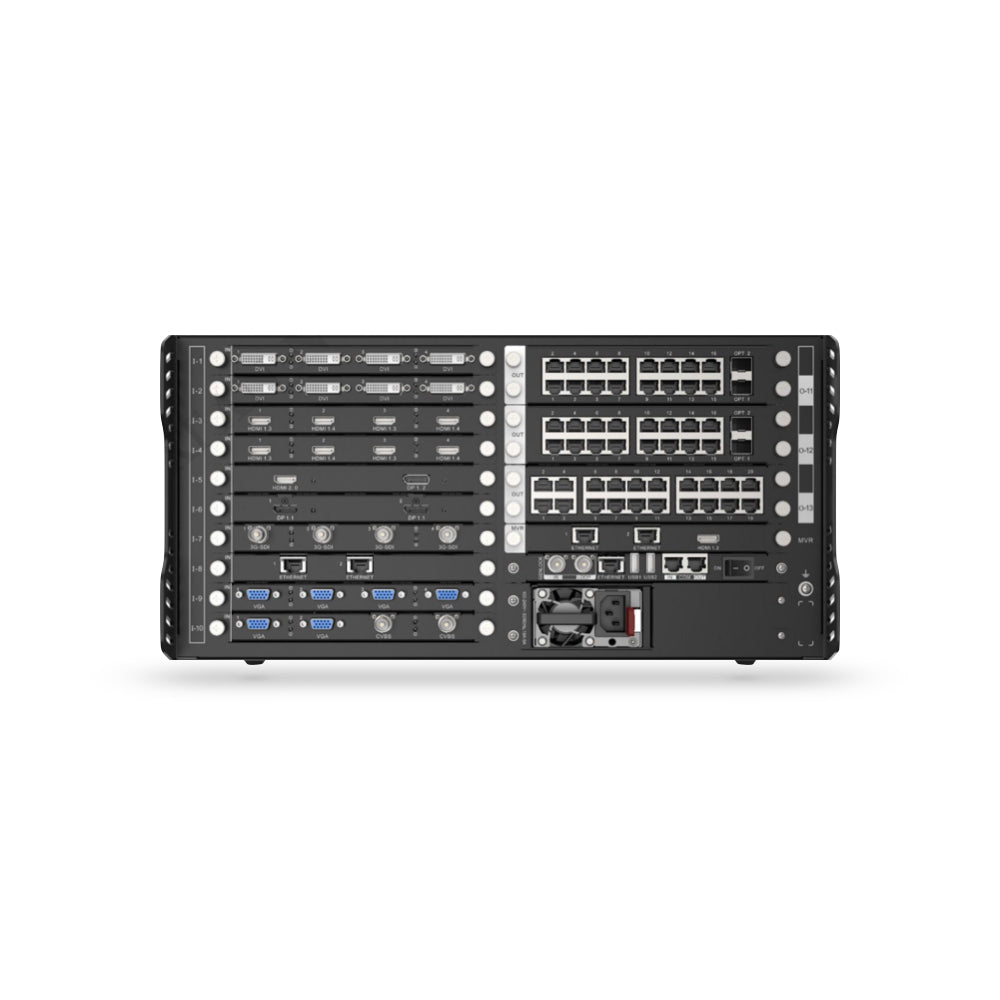

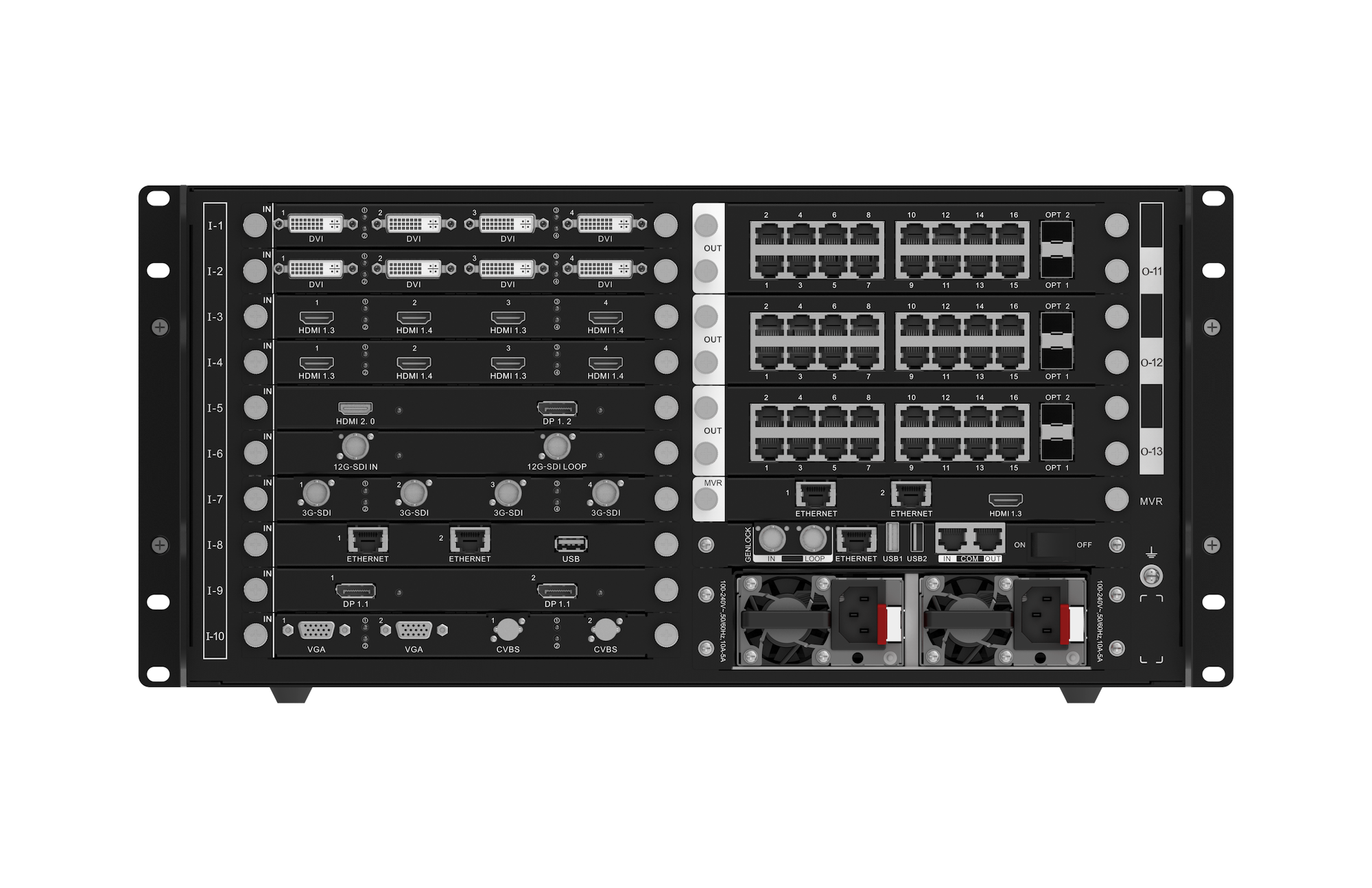

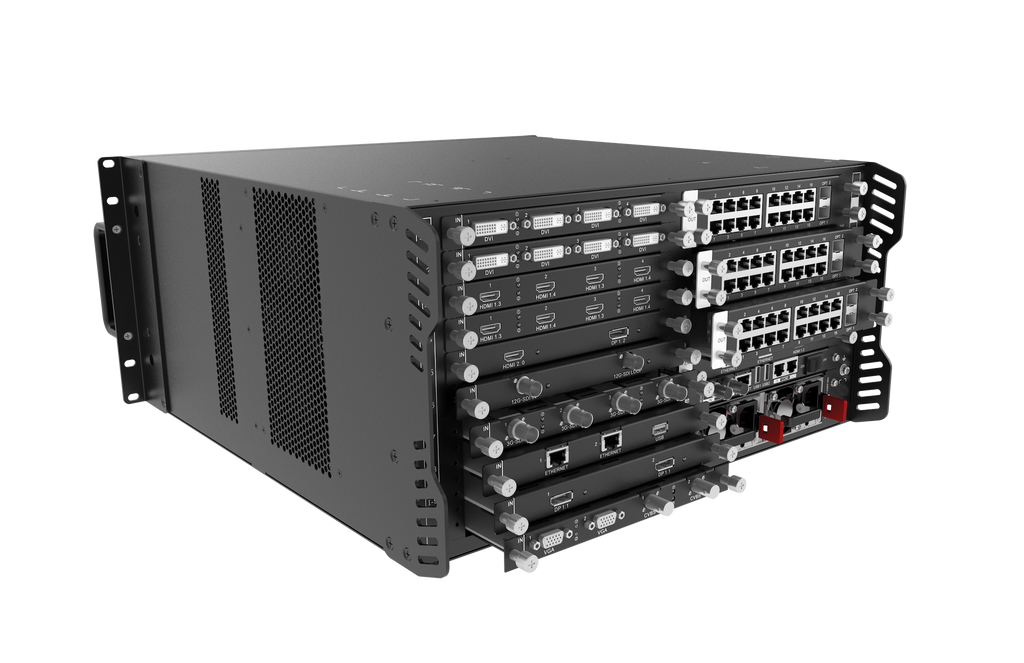

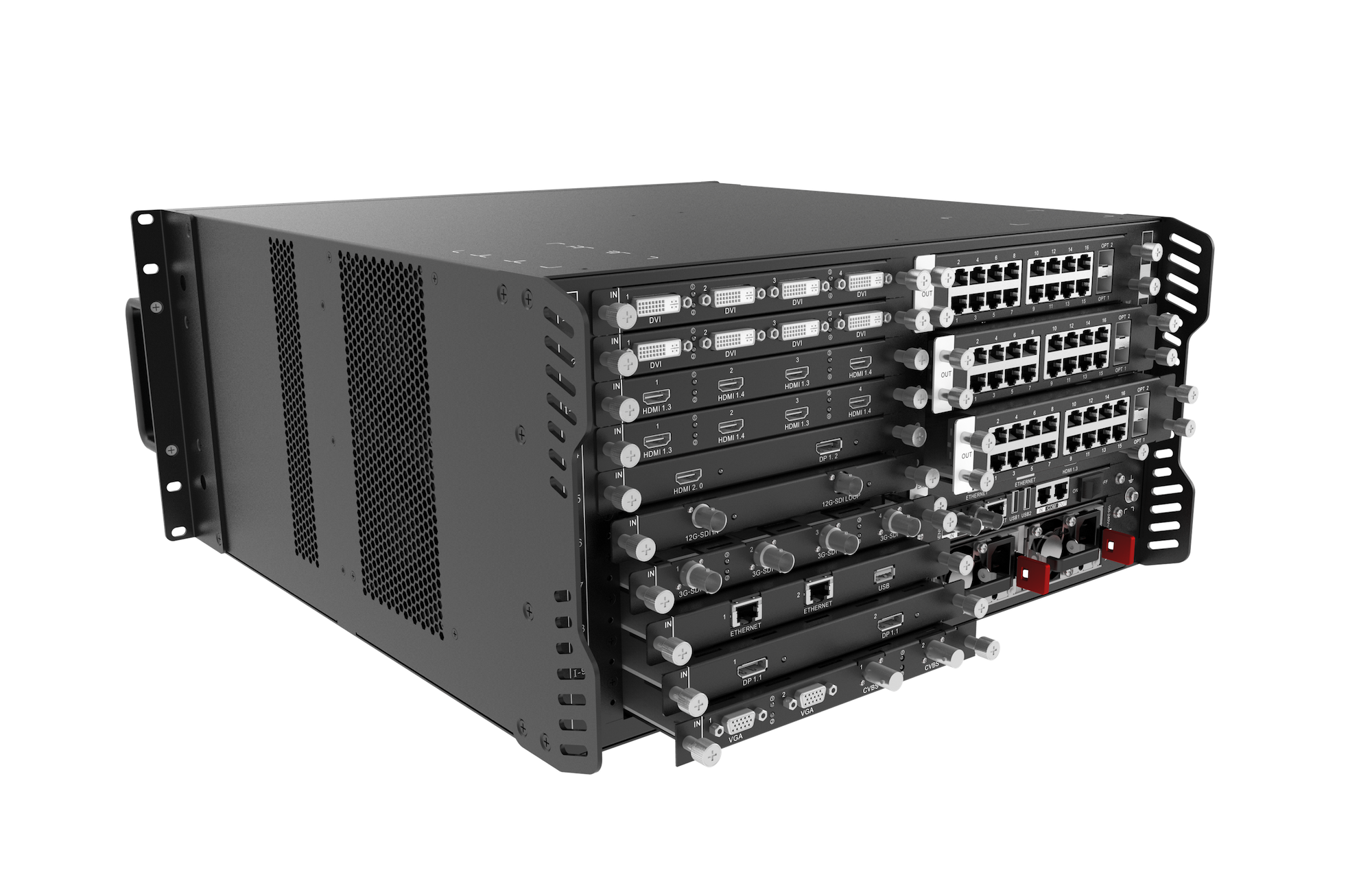

Based on the powerful hardware FPGA system architecture, with a modular and plug-in design, the H5 features a stable and highly efficient pure hardware architecture, and provides a variety of connector modules for flexible and personalized configuration, allowing for easy maintenance and low failure rate. The H5 provides industry-standard input connectors, including HDMI, DVI, DP, VGA, CVBS, SDI and IP, and supports 10-bit video source input and processing, as well as 4K high-definition inputs and outputs. The H5 also provides two kinds of LED 4K sending cards, allowing for the backup between the OPT ports and Ethernet ports as well as ultra-long distance transmission. Moreover, the H5 supports multi-screen and multi-layer management, input and output EDID management and monitoring, input source renaming, BKG and OSD settings and more, bringing you a rich image construction experience.
In addition, the H5 adopts the B/S architecture and supports cross-platform, cross-system access and control without the need to install an application program. On a Windows, Mac, iOS, Android or Linux platform, online collaboration of multiple users is supported and the Web page response speed is very fast, which greatly improves on-site setup efficiency. What’s more, the H5 supports online firmware updates, allowing for easy hardware updates on a PC.
Features:
-
Modular and plug-in design, free combination at your will
-
Multi-screen management for centralized control
-
Diverse display possibilities for flexible configuration
-
Web-page control, easy, friendly and convenient
-
Status monitoring for better stability and reliability
Technical Specifications:
-
Max. Number of input cards: 10
-
Max. Number of input channels: 40
-
Max. Number of output cards: 3
-
Max. Loading Capacity: 39 million pixels
-
Max. Number of layers: 48
-
Rack Unit: 5U
