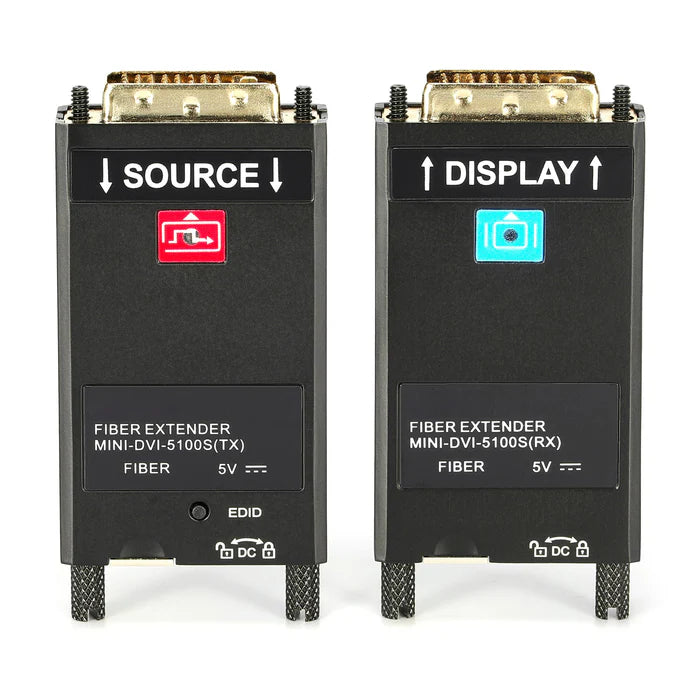

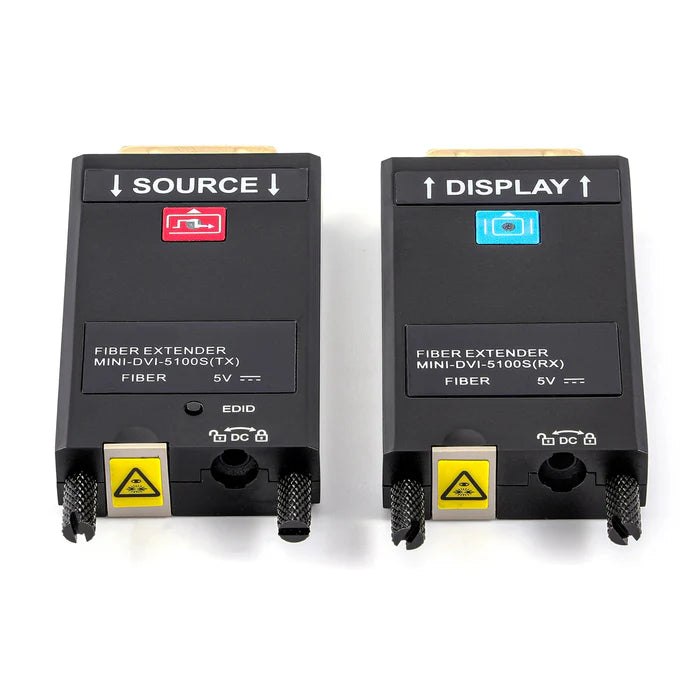

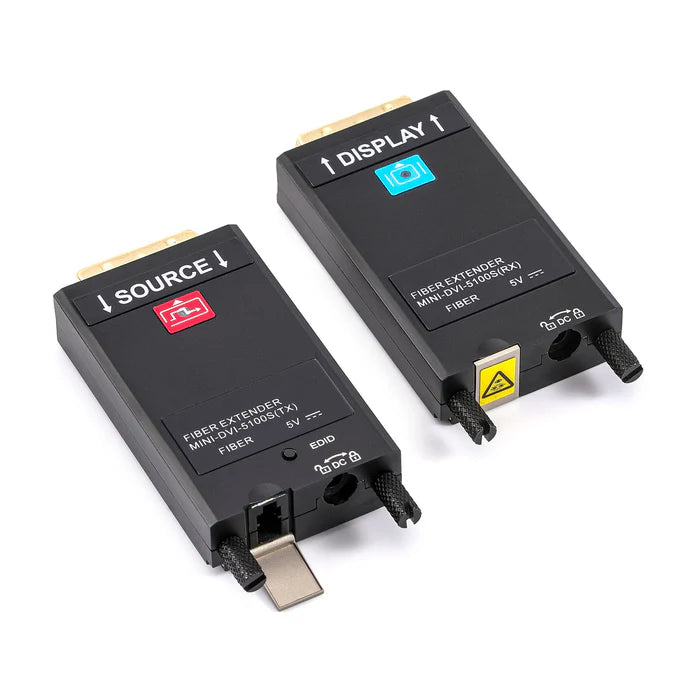

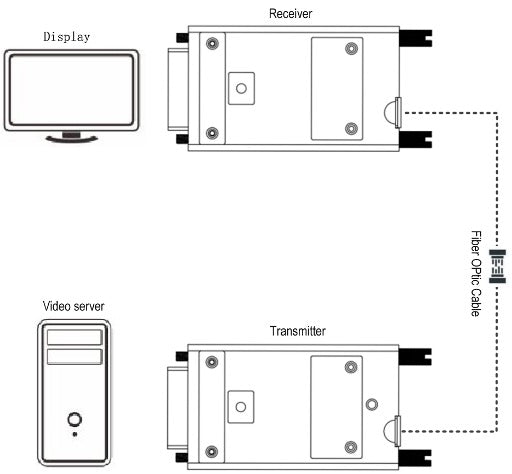

Extend DVI via Fiber optic cable with the DVI to Fiber set. This compact, transmitter receiver set plugs directly into DVI ports avoiding the need for additional rack space or shelving with DVI to Fiber Set being ideal for portable applications. DVI to Fiber Set features integral LC ports – simply connect to a Fiber cable for transmission up to 300m with multi-mode Fiber or up to 10km with single mode Fiber. Power from supplied plug-packs. Resolutions up to 3840x2160@60Hz are supported with EDID copy available via push-pin.
Features
1.Complies with DVI 1.0 single link standard and uses HDMI 2.0 protocol;
2.Support downward compatibility of 4K*2K*60Hz resolution;
3.Built-in EDID mode and EDID manual learning mode,support button mode switching;
4.Support EDID memory storage function after power off;
5.Support unilateral power supply technology and can be powered from the signal source DVI port;
6.Support dust prevention of fiber optic interfaces and have anti detachment design to prevent the loss of dust covers;
7.Supportthe power socket with lock to prevent the equipment from falling off during operation;
8.Support portable installation of rear long screws;
9.Support single fiber transmission of 10km,compatible with multi-mode and single-mode modes;
10.Support status light indication;
11.Plug and play,without debugging;
Application
1.Stage rental;
2.LED large screen;
3.Projection fusion;
4.Live TV;
5.Radio and television and video recording;
6.Video conferencing;
7.Information release and display system;
8.Command and dispatch center;
