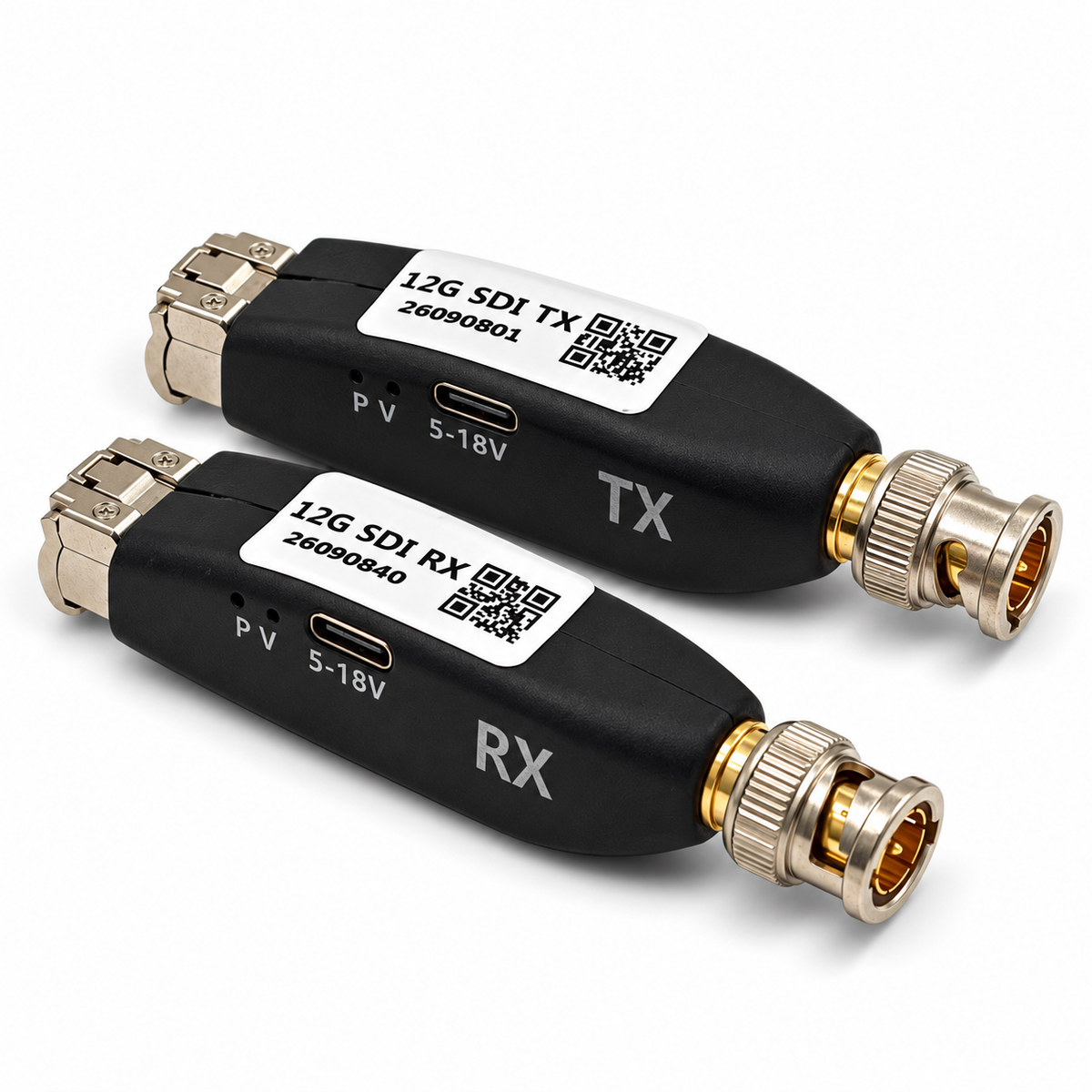

Extend uncompressed SDI video over optical fiber with a compact transmitter and receiver set. Supporting resolutions up to 4096 × 2160 at 60Hz, the Mini 12G-SDI Fiber Converter brings long-distance video connectivity to rental stages, live events, broadcast studios and professional AV installations.
Its direct BNC connection, simplex LC optical interface and USB-C power input make it easy to integrate into compatible SDI equipment setups.
Key Features
-

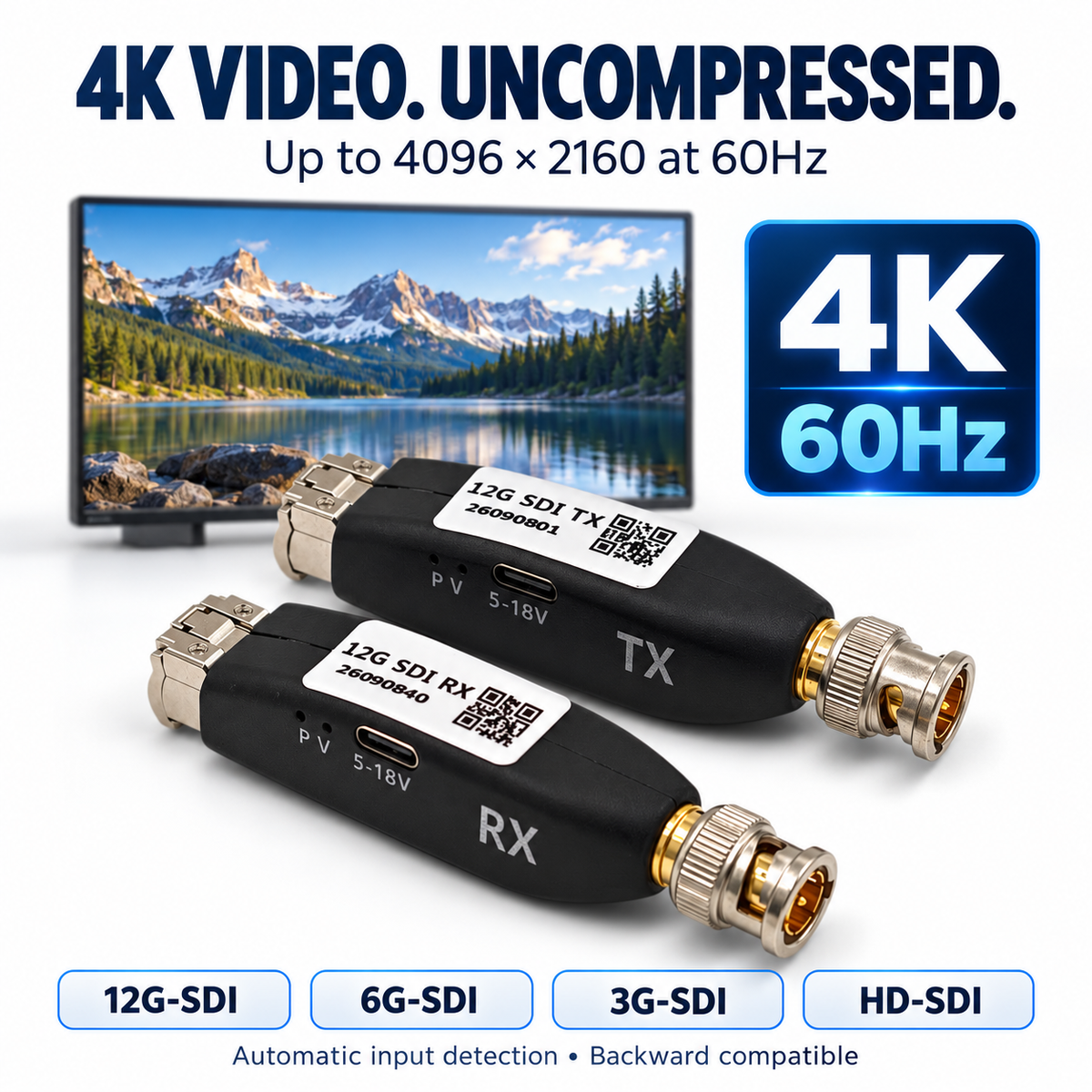

Uncompressed 4K 60Hz Video
Transmit detailed video at resolutions up to 4096 × 2160 at 60Hz. Automatic input detection supports 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI for use across different production formats.
-

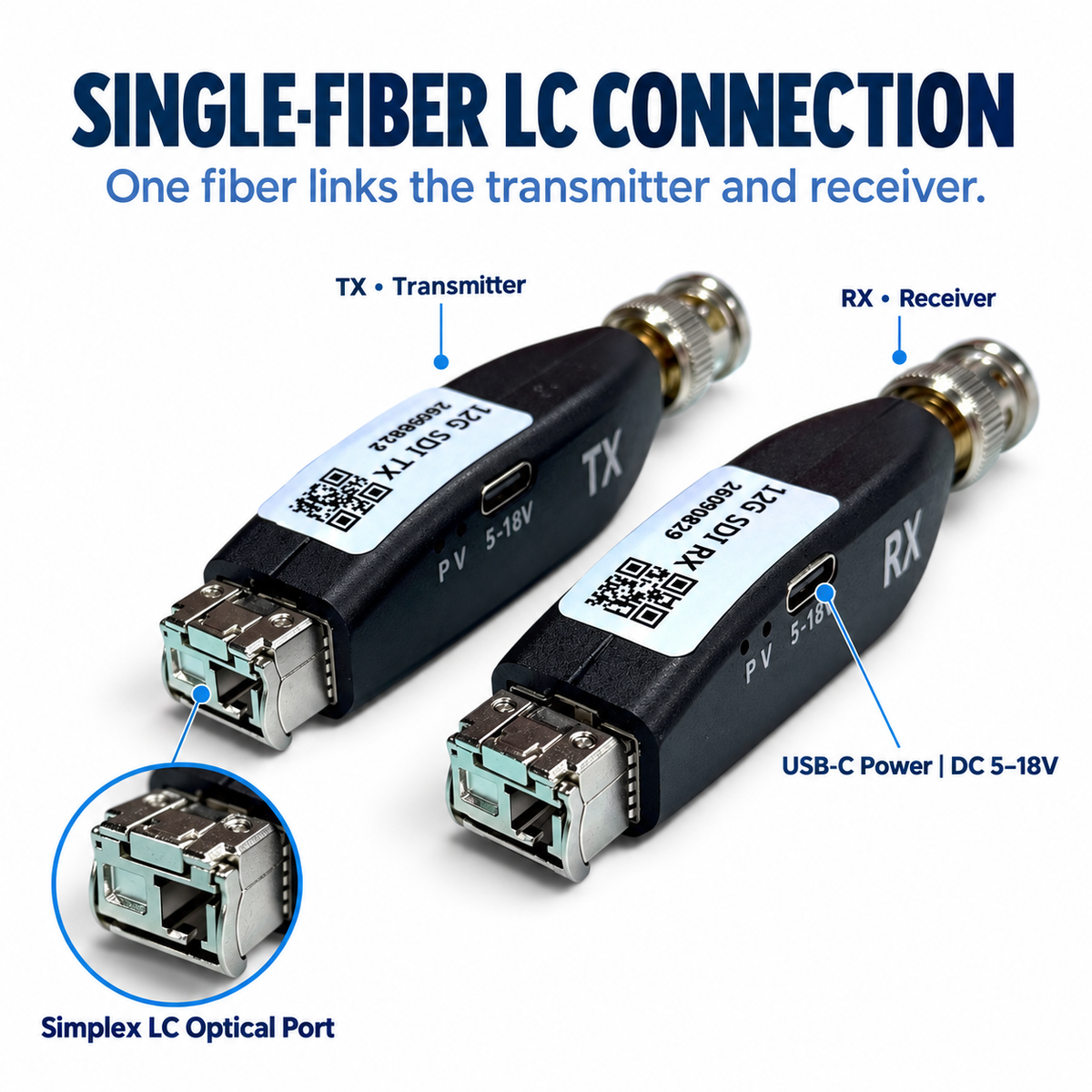

Single-Fiber LC Connection

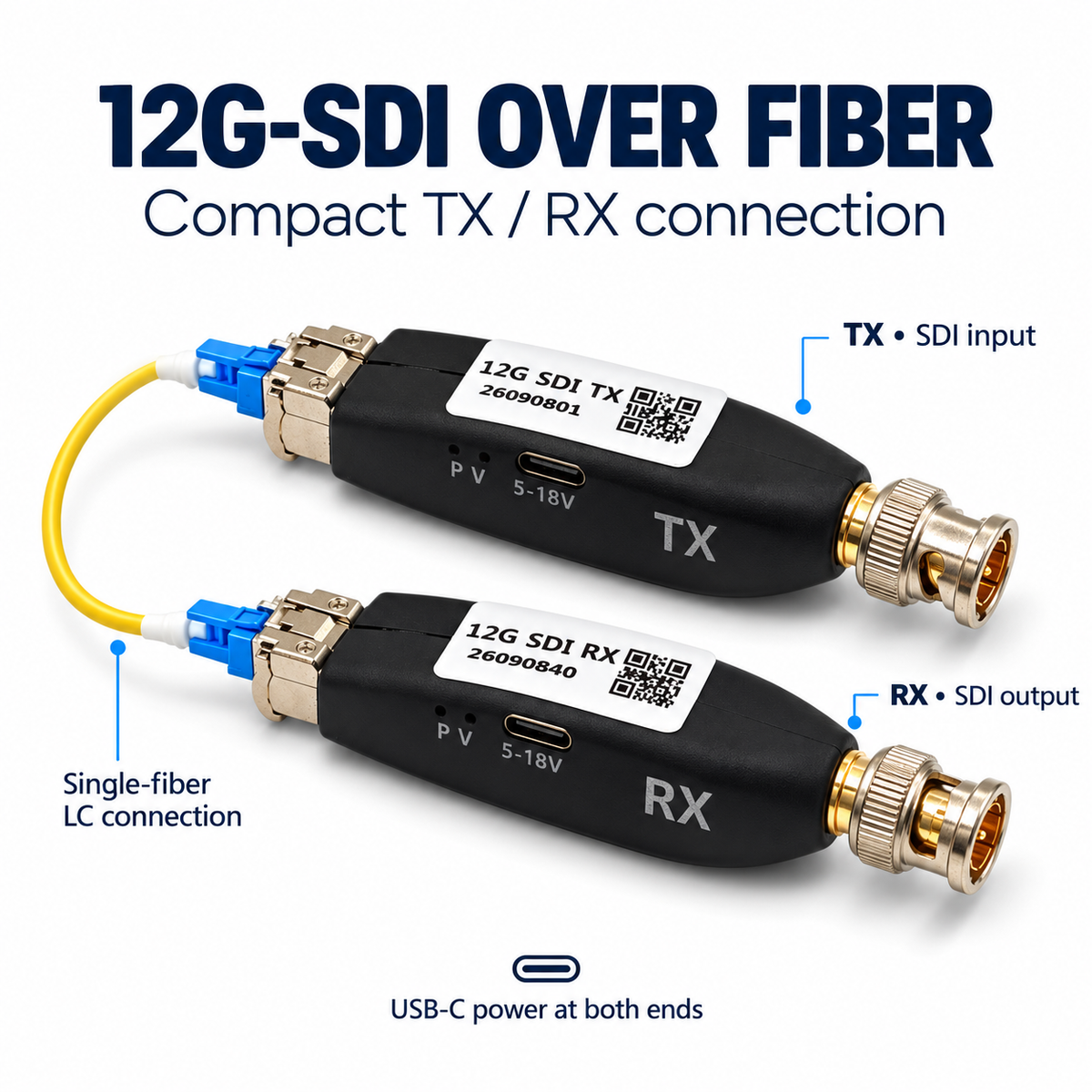

Connect the transmitter and receiver using one compatible fiber strand through the simplex LC optical ports. The compact optical connection keeps cabling straightforward for temporary event setups and permanent installations.
-
Direct BNC Connection
The integrated BNC plug connects directly to compatible SDI equipment, eliminating the need for an additional short SDI adapter cable where equipment access allows.
-

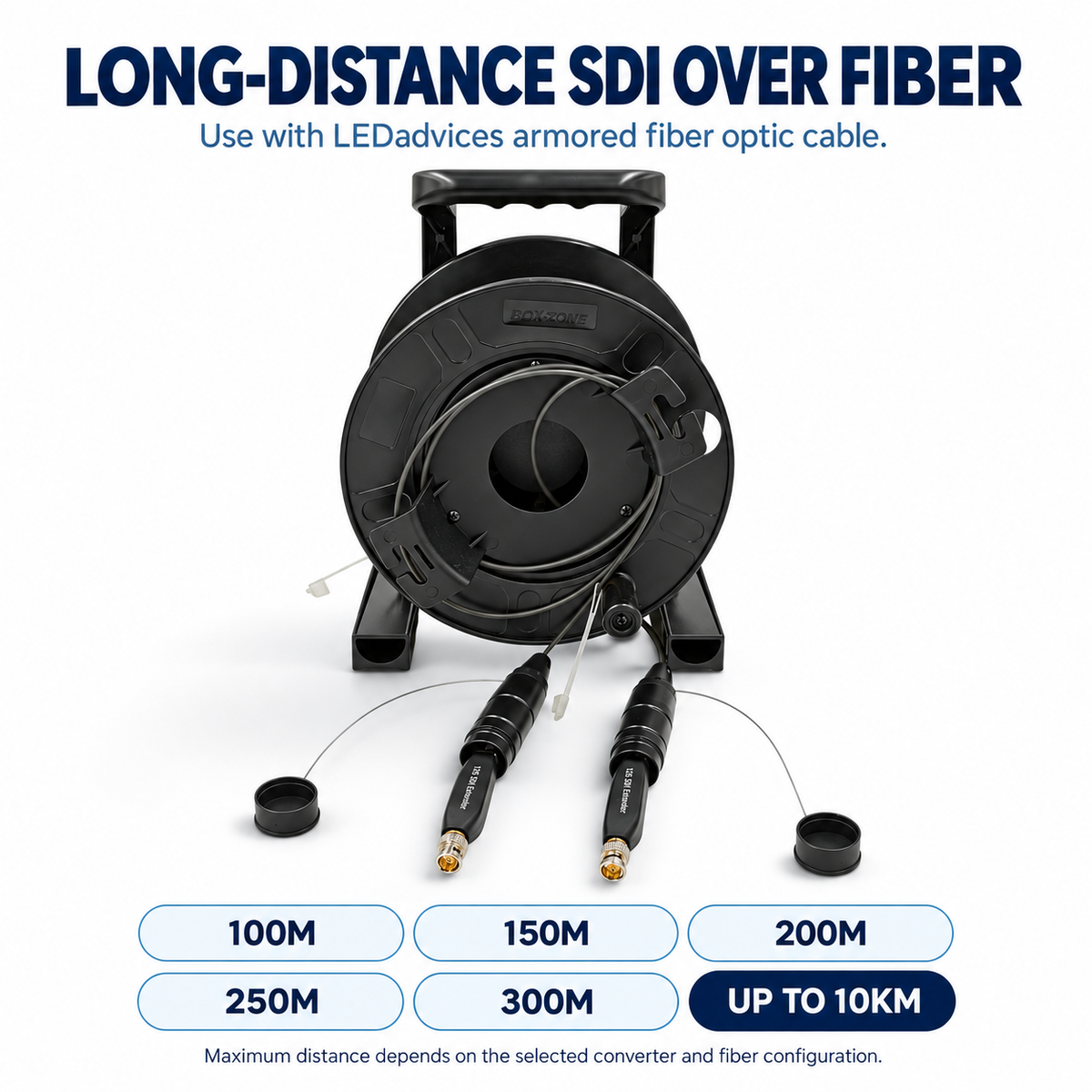

Flexible Distance Options
Pair with LEDadvices armored fiber optic cable for 100 m, 150 m, 200 m, 250 m and 300 m setups. Transmission configurations up to 10 km are available. Maximum distance depends on the selected converter version and fiber configuration.
-
USB-C Power at Both Ends
Each converter accepts DC 5–18V through its USB-C power input. Compact housings and visible status indicators support convenient installation and connection checks.
-

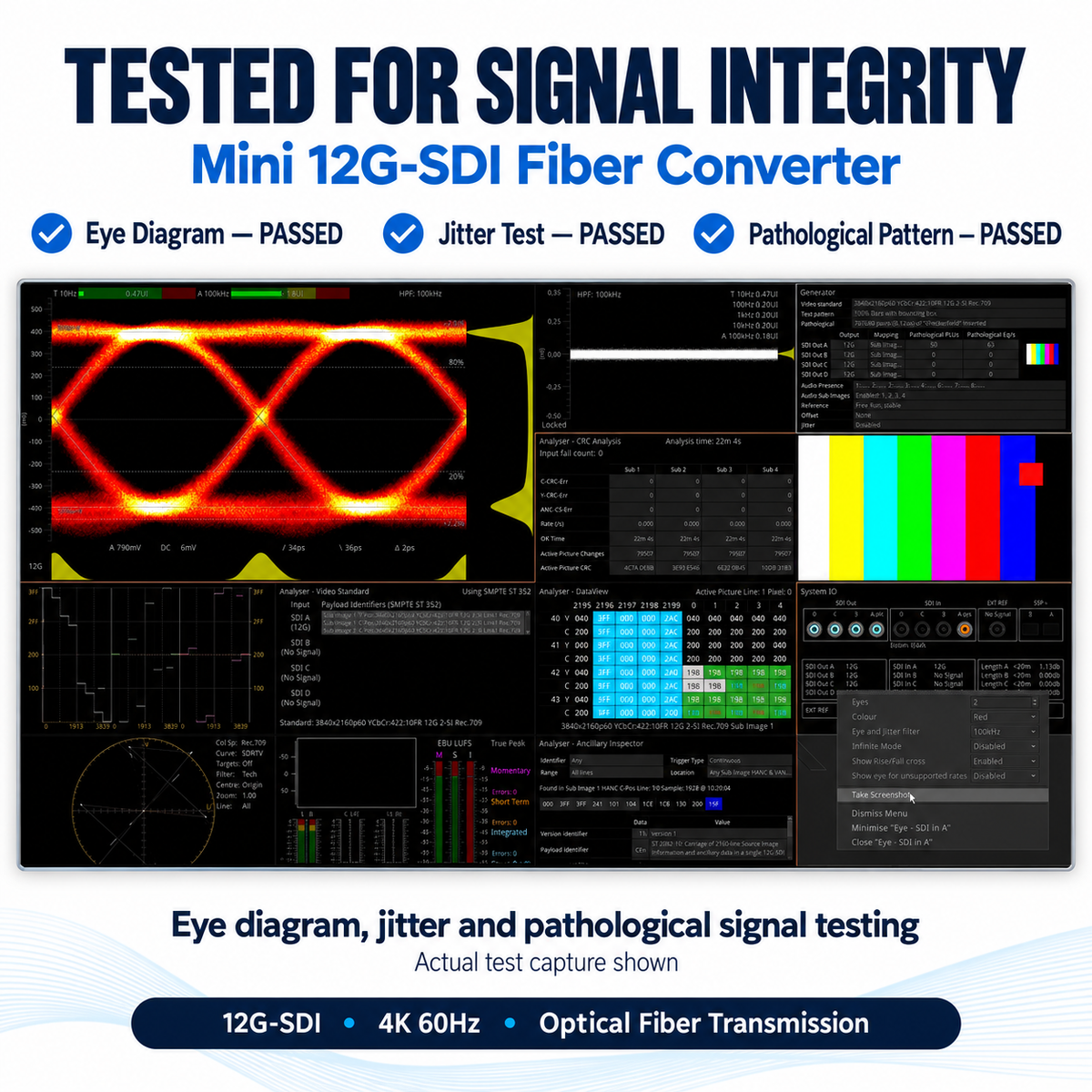

Signal Integrity Testing
Passed eye diagram, jitter and pathological signal testing to verify signal performance under the tested conditions.
Designed for Professional Video Workflows

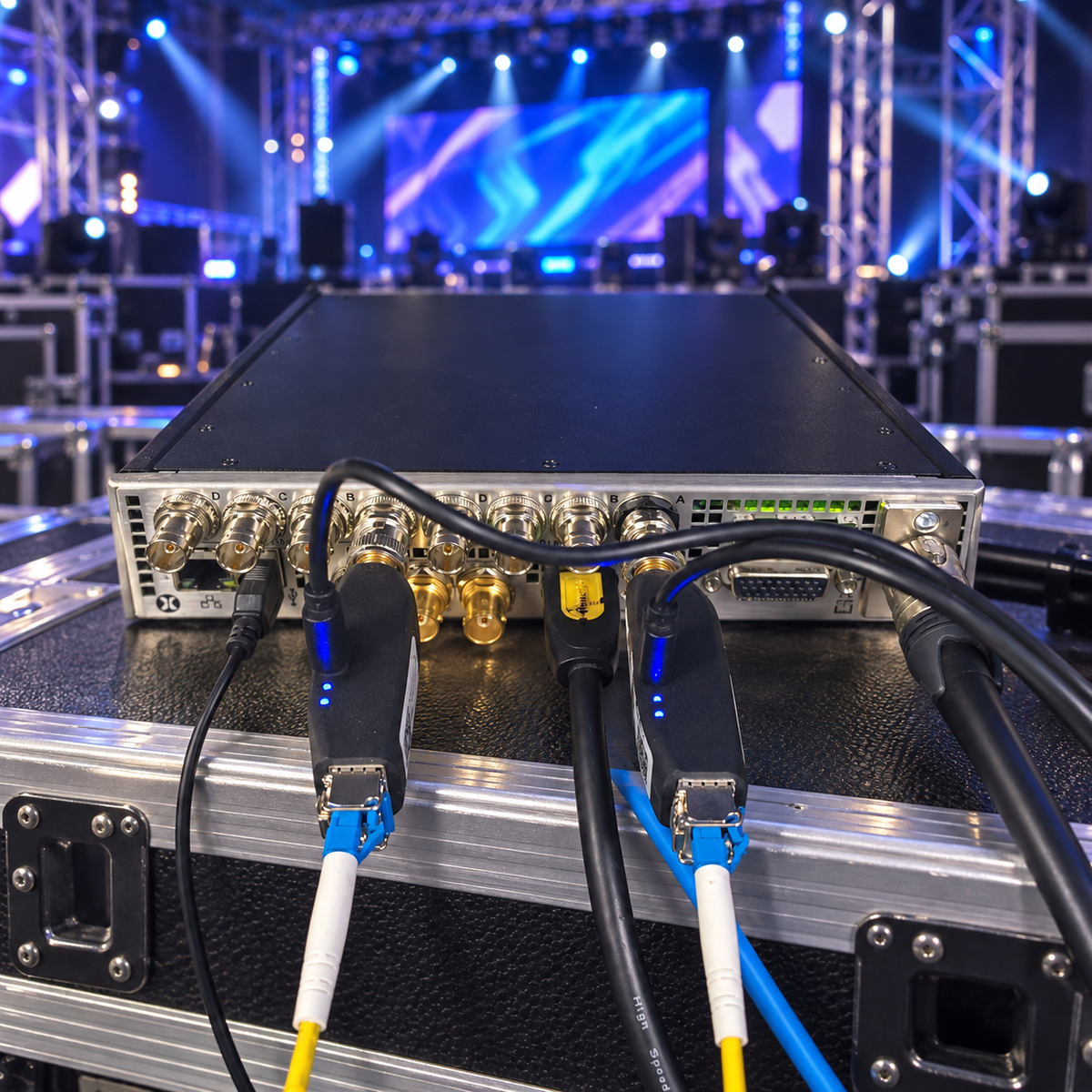

Use the TX/RX set to link compatible SDI cameras, video switchers, routers, recorders and monitors across production spaces. Its small form factor is particularly useful around equipment racks, flight cases and stage production stations.
For rental applications, combine the converters with LEDadvices armored fiber optic cable and an optional cable reel for convenient deployment, storage and transport.
Technical Specifications
| Specification |
Details |
| Maximum resolution |
4096 × 2160 at 60Hz |
| Supported SDI formats |
12G / 6G / 3G / HD-SDI |
| Input detection |
Automatic |
| Video transmission |
Uncompressed |
| Transmitter SDI interface |
1 × BNC input |
| Receiver SDI interface |
1 × BNC output |
| Optical interface |
Simplex LC |
| Fiber connection |
One fiber strand between TX and RX |
| Transmission distance |
Up to 10 km, depending on configuration |
| Default optical wavelength |
1310 nm |
| Power input |
DC 5–18V via USB-C |
| Specified operating temperature |
−25°C to +55°C |
Package Options

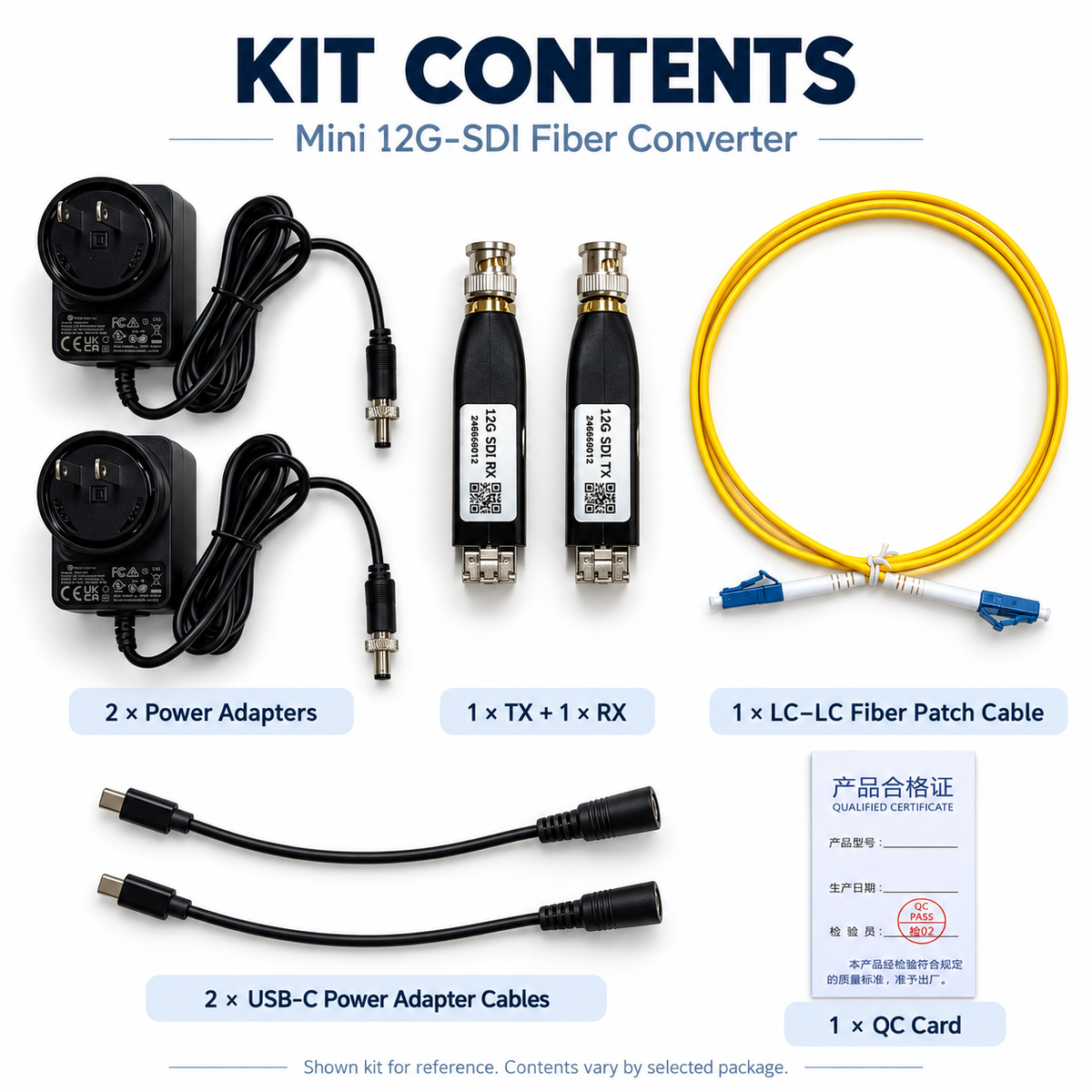

The illustrated sample kit contains:
- 1 × Mini 12G-SDI transmitter
- 1 × Mini 12G-SDI receiver
- 2 × Power adapters
- 2 × USB-C power adapter cables
- 1 × LC–LC fiber patch cable
- 1 × Quality inspection card
Package contents vary by the selected option. Armored fiber cable, cable reels and protective housings are included only when specified in the selected package.
Before Ordering
Select the converter and fiber configuration to match your required distance. Confirm single-mode or multimode compatibility for the chosen version. Both the transmitter and receiver require external power, and the source and receiving equipment must support the intended SDI video format.
