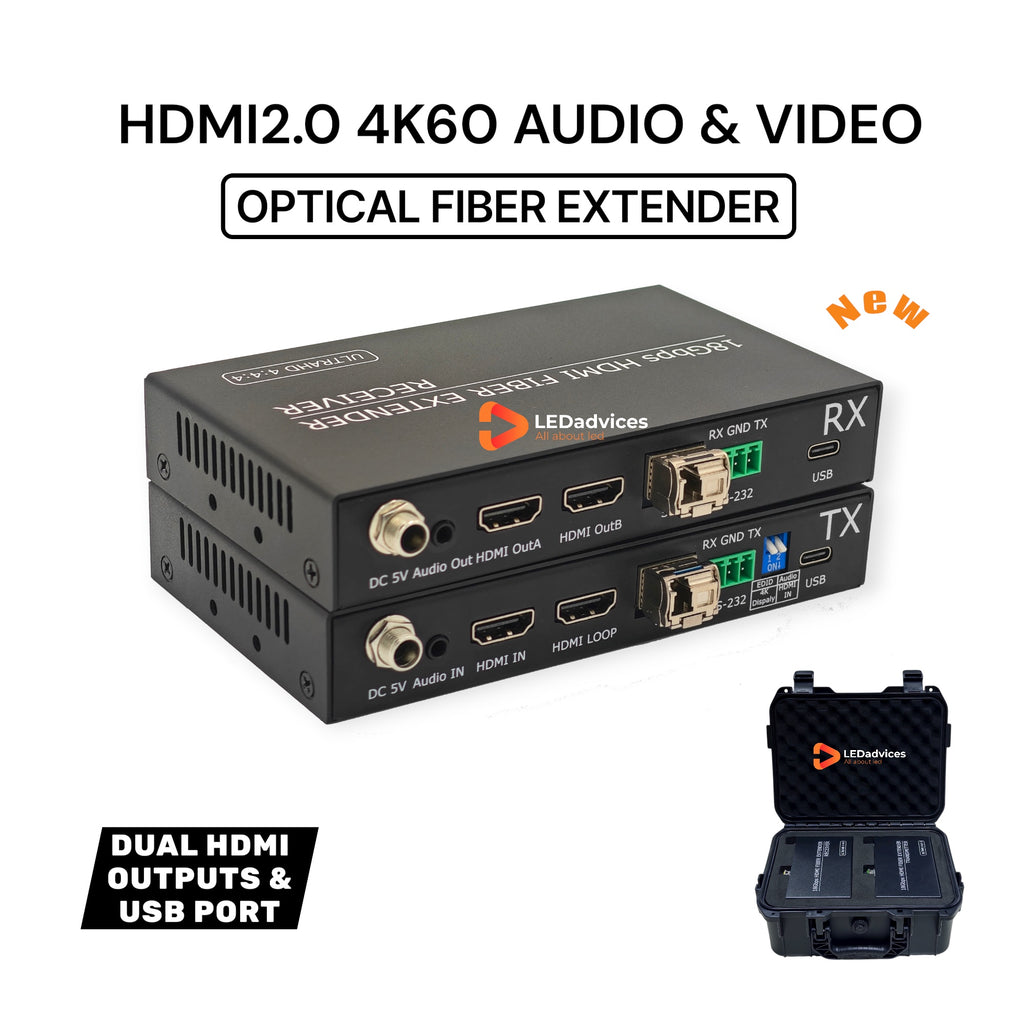

HDMI 2.0 4K Audio & Video Optical Extender – 10km Transmission

🔹 Key Features

• Supports synchronous audio and video signal extension

• Up to 18Gbps video bandwidth, ensuring ultra-clear 4K image transmission

• Transmitter with HDMI loop-out for local monitoring and external audio embedding

• Receiver with dual HDMI outputs and audio de-embedding function

• Supports bidirectional IR control, RS-232 pass-through, and EDID management

• Long-distance transmission up to 10km via single-mode optical fiber

• Supports 4K@50/60Hz 4:4:4 ultra-high-definition video resolution

• Compatible with multiple HDMI audio formats:

  LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-HD Master Audio, DSD, etc.

• Fully compliant with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards



Supported Video Standards

SMPTE: 720p, 1080p, 2160p

VESA: 800×600, 1024×768, 1280×720, 1280×800, 1280×960, 1280×1024,

1400×1050, 1600×1200, 1920×1080, 1920×1200, 2048×1152,

2560×1600, 3840×1080, 3840×2160, 4096×2160

Frame Rates: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60Hz



🔌 Interfaces

Transmitter (TX):

• 1 × HDMI 2.0 Input (4K@60Hz)

• 1 × HDMI 2.0 Loop Out (4K@60Hz)

• 1 × Audio Input

• 1 × SFP Fiber Port

• 1 × RS-232

• 2 × IR

Receiver (RX):

• 2 × HDMI 2.0 Outputs (4K@60Hz)

• 1 × Audio Output

• 1 × SFP Fiber Port

• 1 × RS-232

• 2 × IR



---





📦 Package Includes

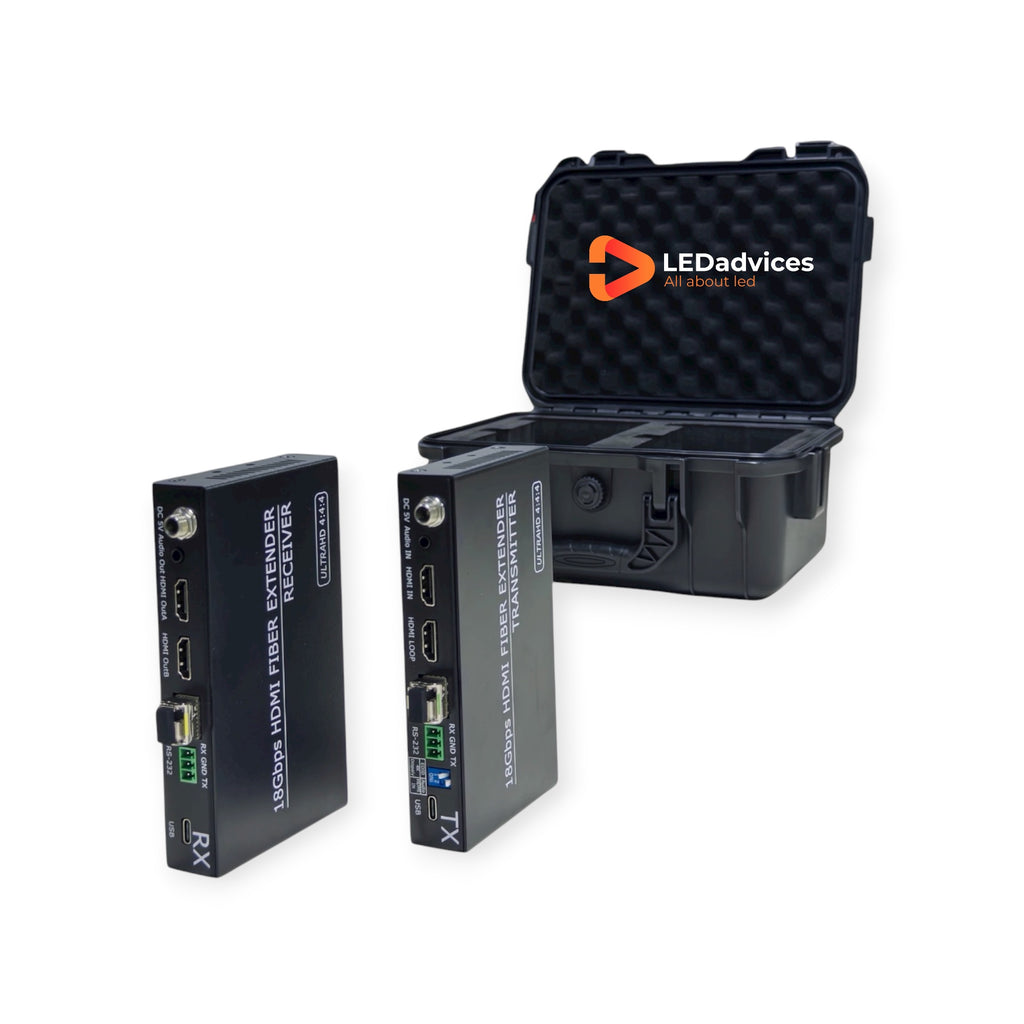

• 1 × HDMI 2.0 Optical Transmitter (TX)

• 1 × HDMI 2.0 Optical Receiver (RX)

• 2 × Power Adapters (DC 5V)

• 1 × User Manual

---



✅ Application Scenarios

Perfect for:

• LED displays and large screen systems

• Conference rooms & lecture halls

• Broadcasting & monitoring systems

• Exhibition centers, control rooms, and stage events
