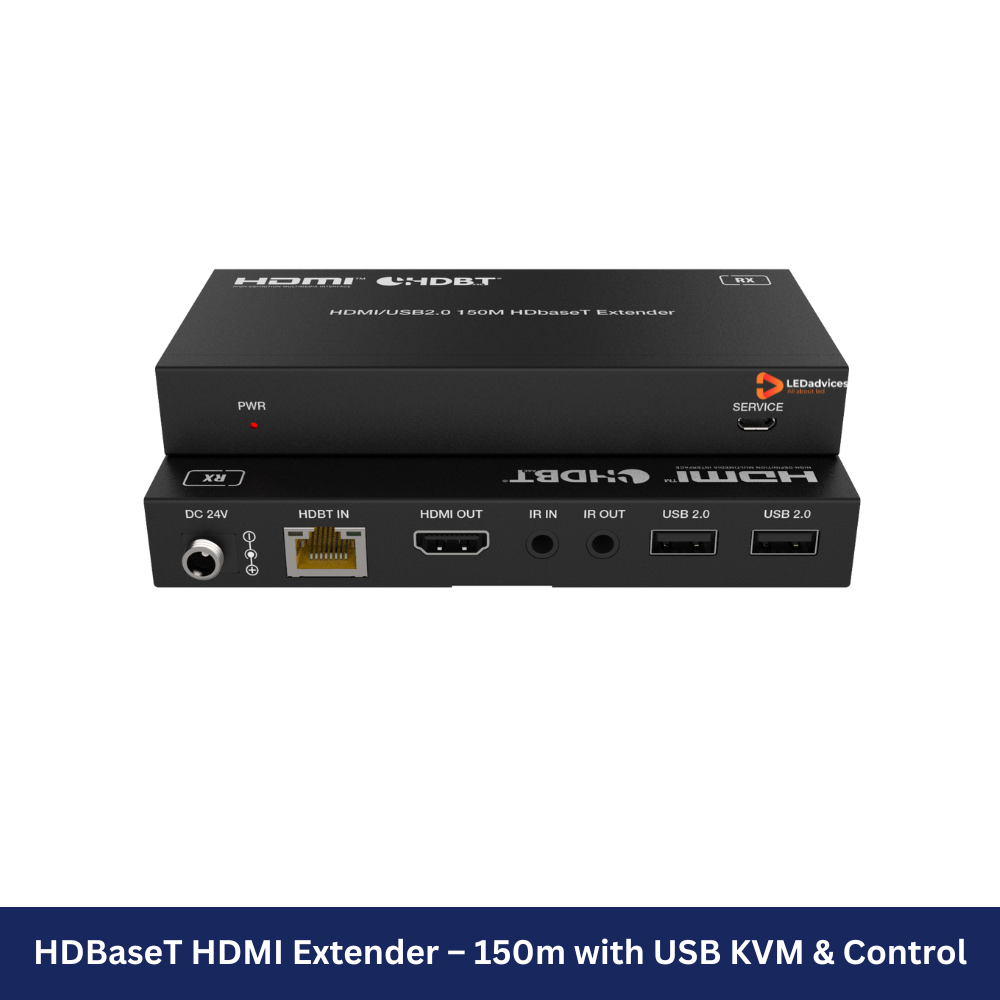

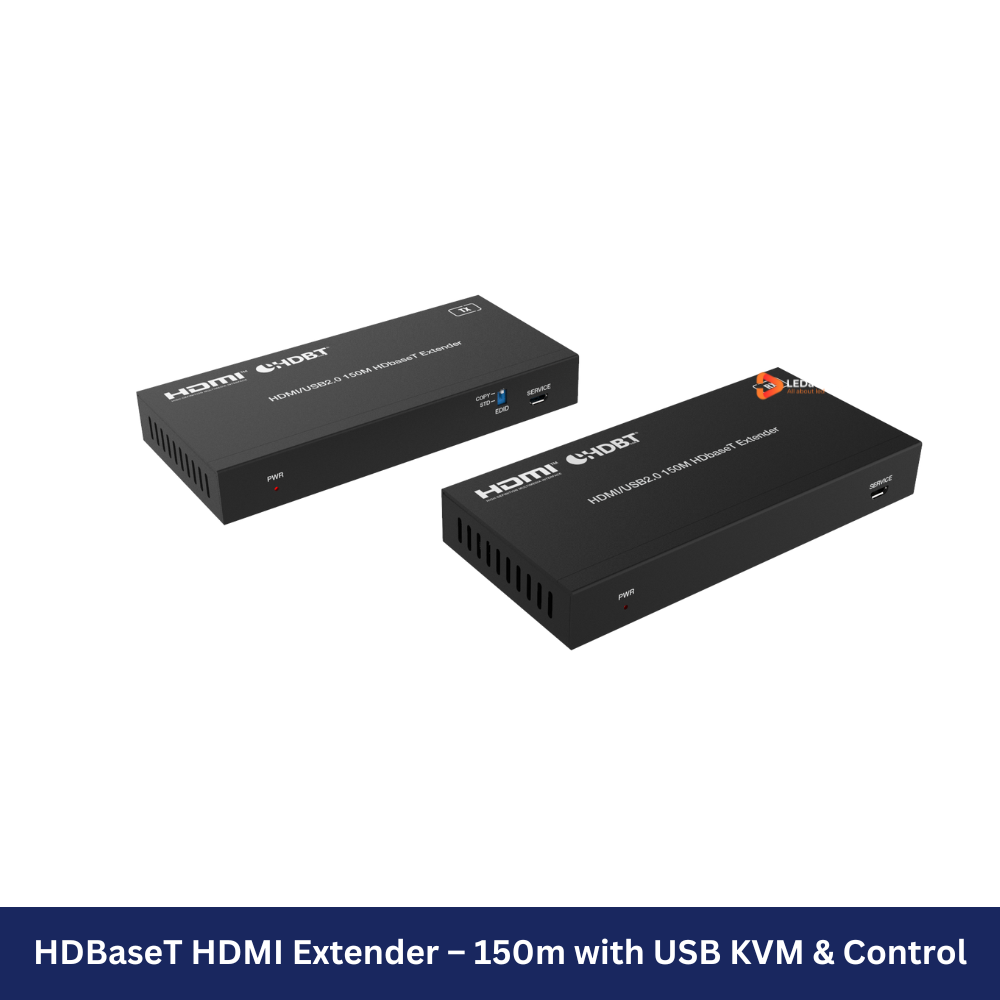

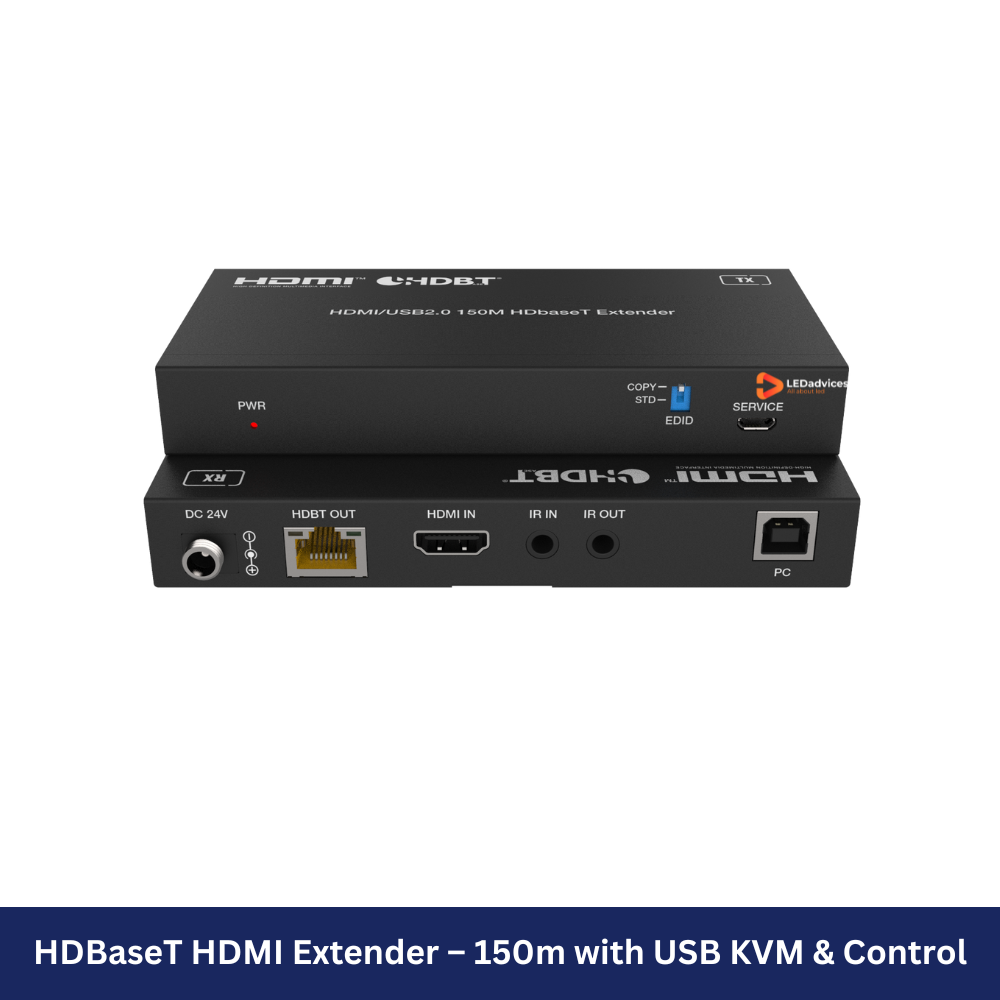

The HDC-EHB150U2 is a high-performance 18Gbps HDBaseT extender that transmits HDMI, USB KVM, and bi-directional IR signals over a single CAT6 cable—up to 150m (492ft) in Long Reach Mode.
With support for 4K2K@60Hz 4:4:4 video resolution, this extender ensures uncompromised image quality. A DIP switch allows easy selection between HDBaseT Mode for full USB 2.0 functionality (up to 100m for 4K60) and Long Reach Mode for HID-only USB devices (up to 150m for 1080p or 120m for 4K60).
Advanced EDID management ensures compatibility across different displays, while PoC (Power over Cable) technology simplifies installation by requiring only one power adapter. Its compact design and plug-and-play setup make it perfect for conference rooms, classrooms, control centers, and multi-room AV systems.
Key Features:
-
✅ HDMI 2.0b and HDCP 2.2 compliant
-
✅ Supports up to 18Gbps video bandwidth
-
✅ Video resolution up to 4K2K@60Hz YUV 4:4:4
-
✅ Two transmission modes:
• HDBaseT Mode – USB 2.0 support; 4K60 up to 100m
• Long Reach Mode – USB HID support; 1080p up to 150m, 4K60 up to 120m
-
✅ USB KVM extension for remote keyboard, mouse, camera, and storage devices
-
✅ Bi-directional IR control pass-through
-
✅ Advanced EDID management
-
✅ Bi-directional PoC (Power over Cable) – only one power adapter needed
-
✅ Compact design for flexible installation
Applications:
-
Video conferencing and remote collaboration
-
Multimedia teaching and training rooms
-
Control room and monitoring systems
-
Corporate and residential AV extension
