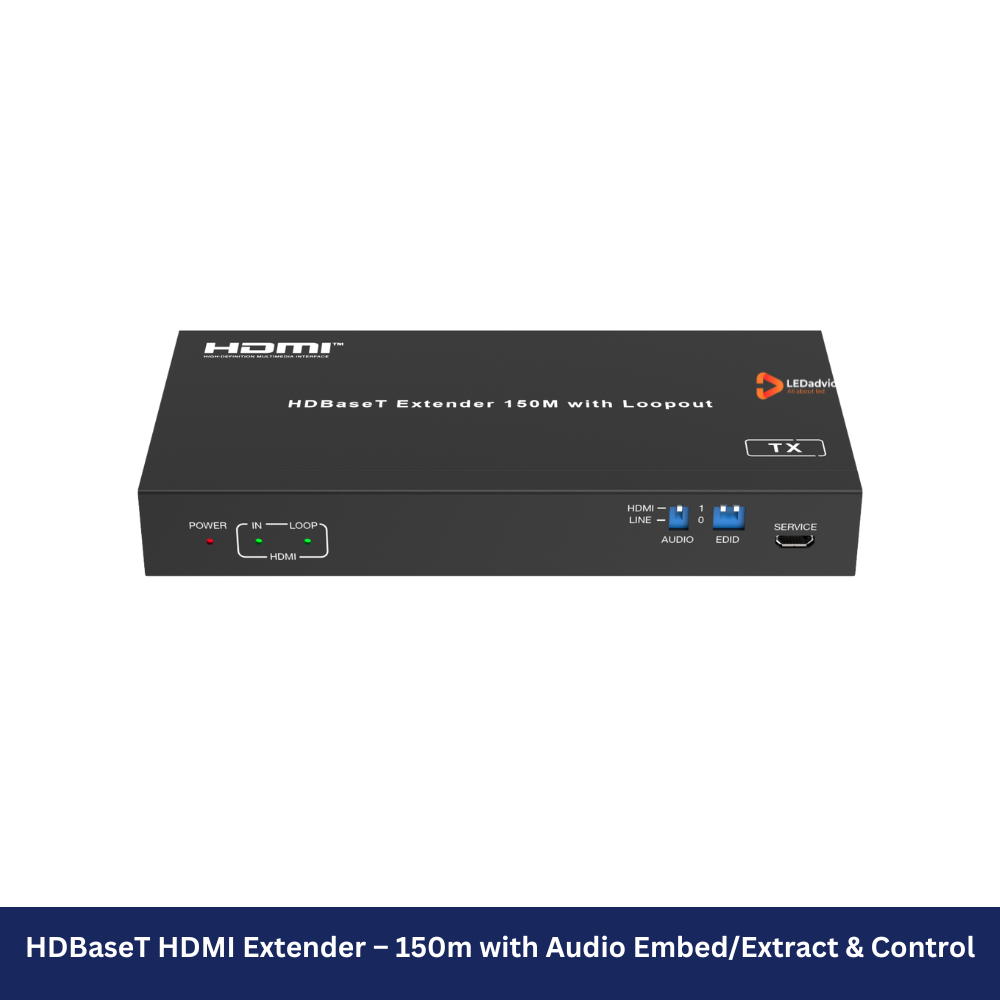

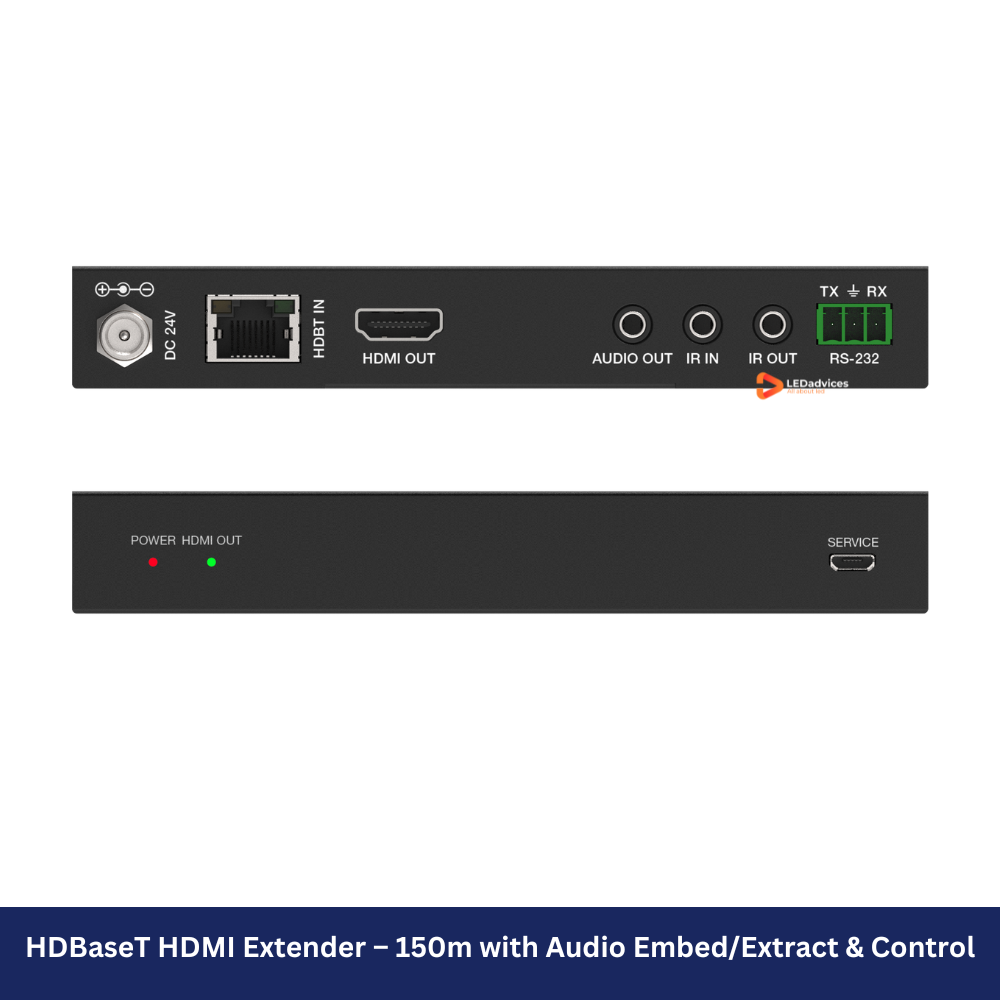

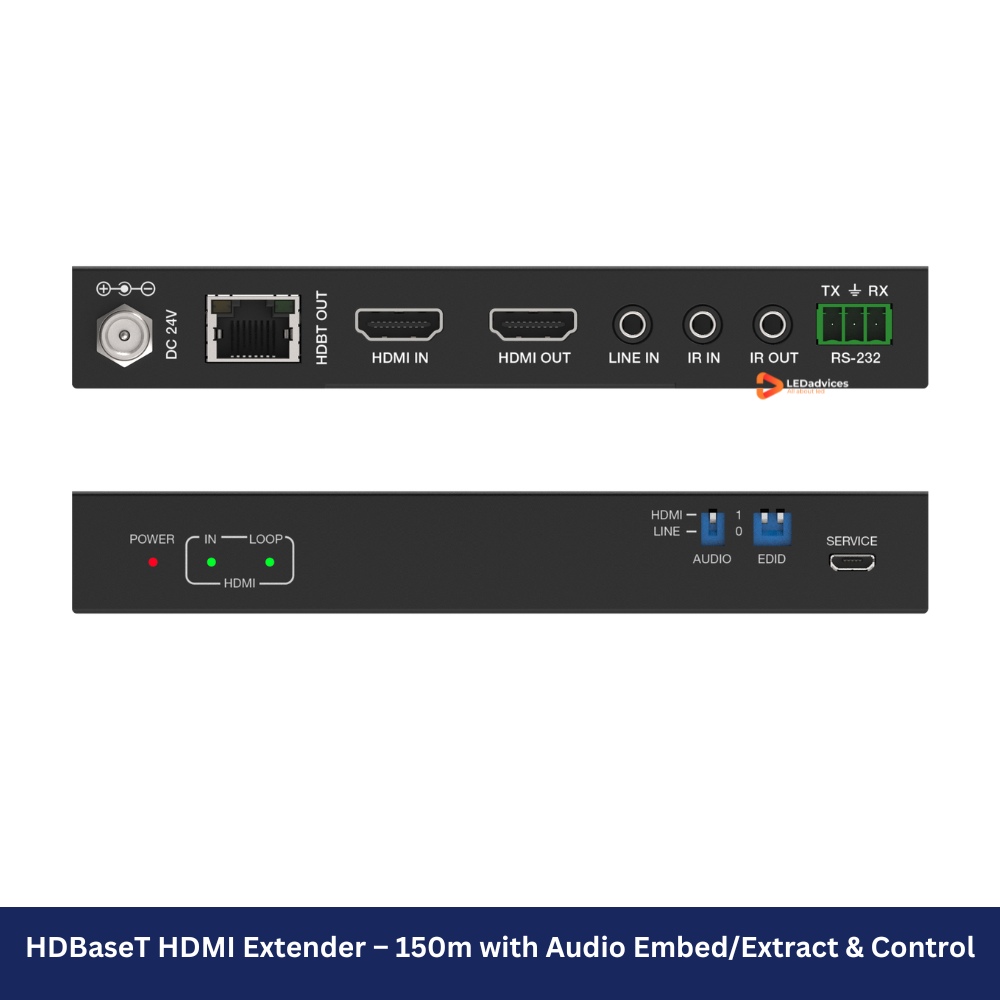

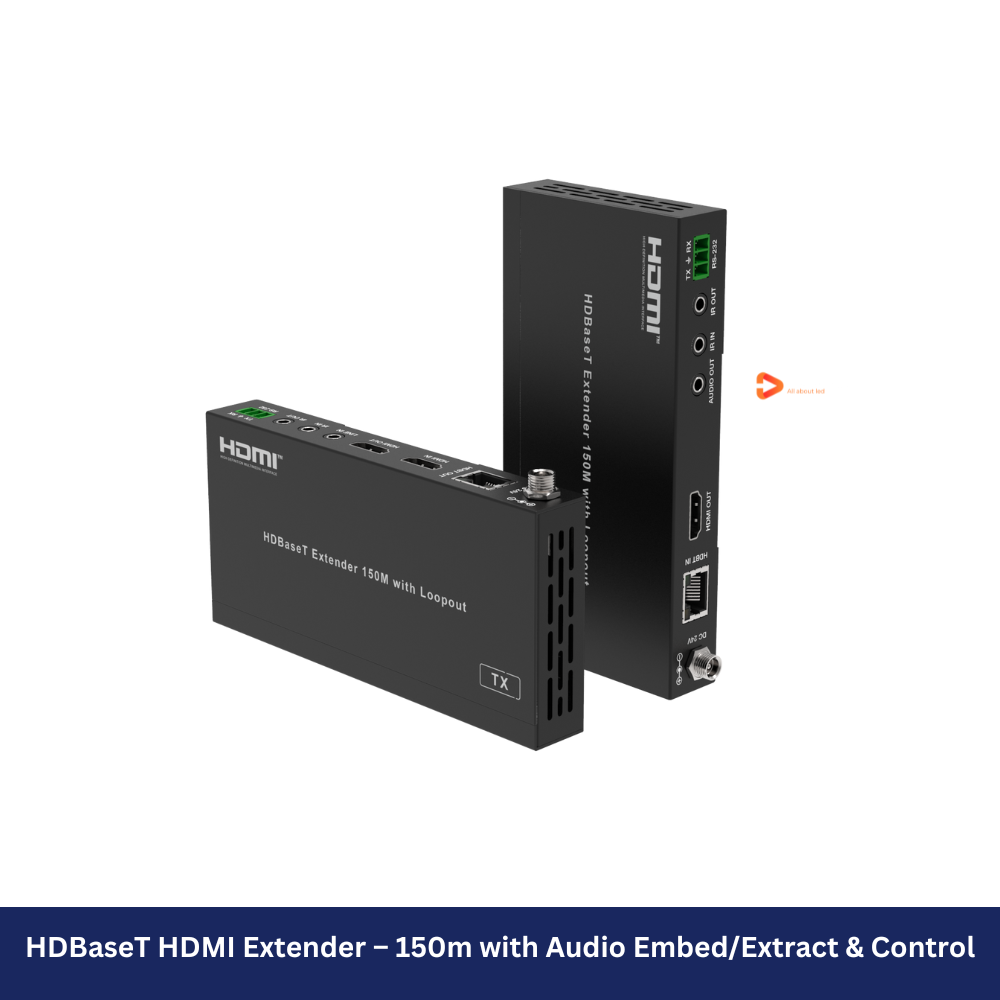

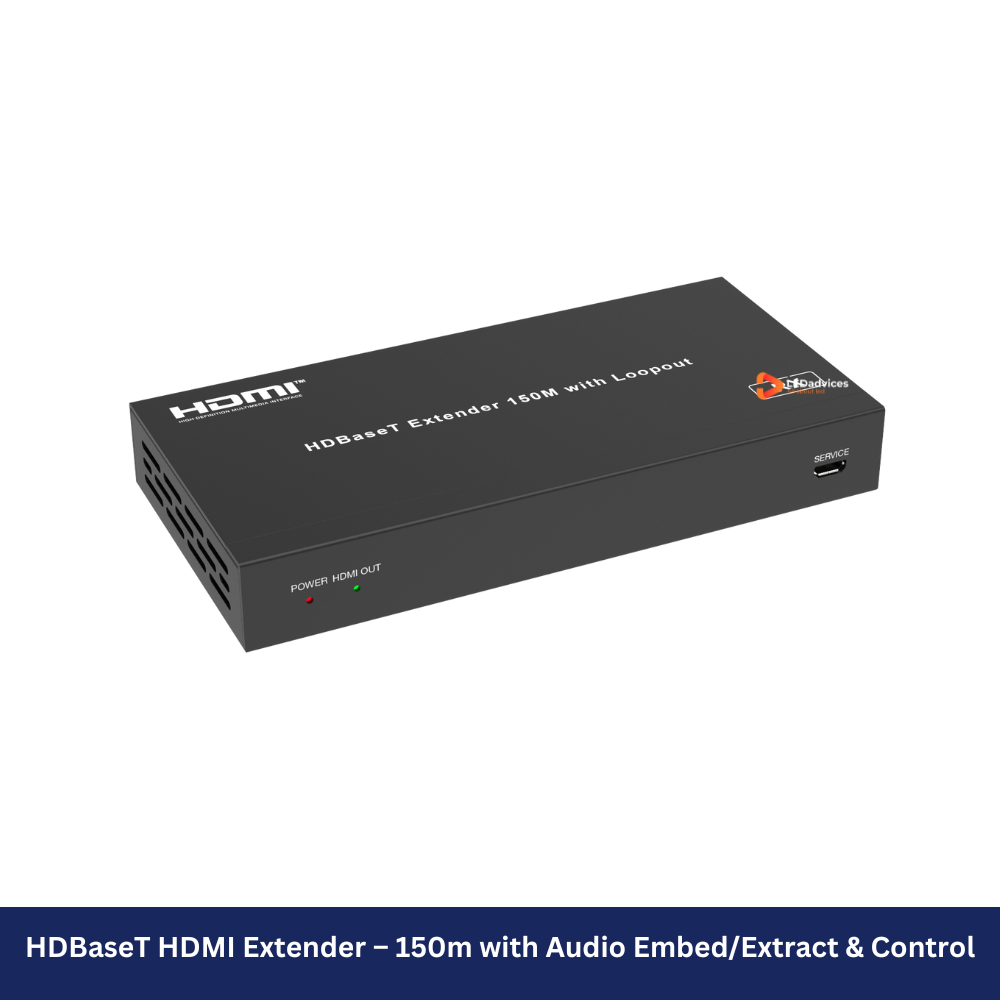

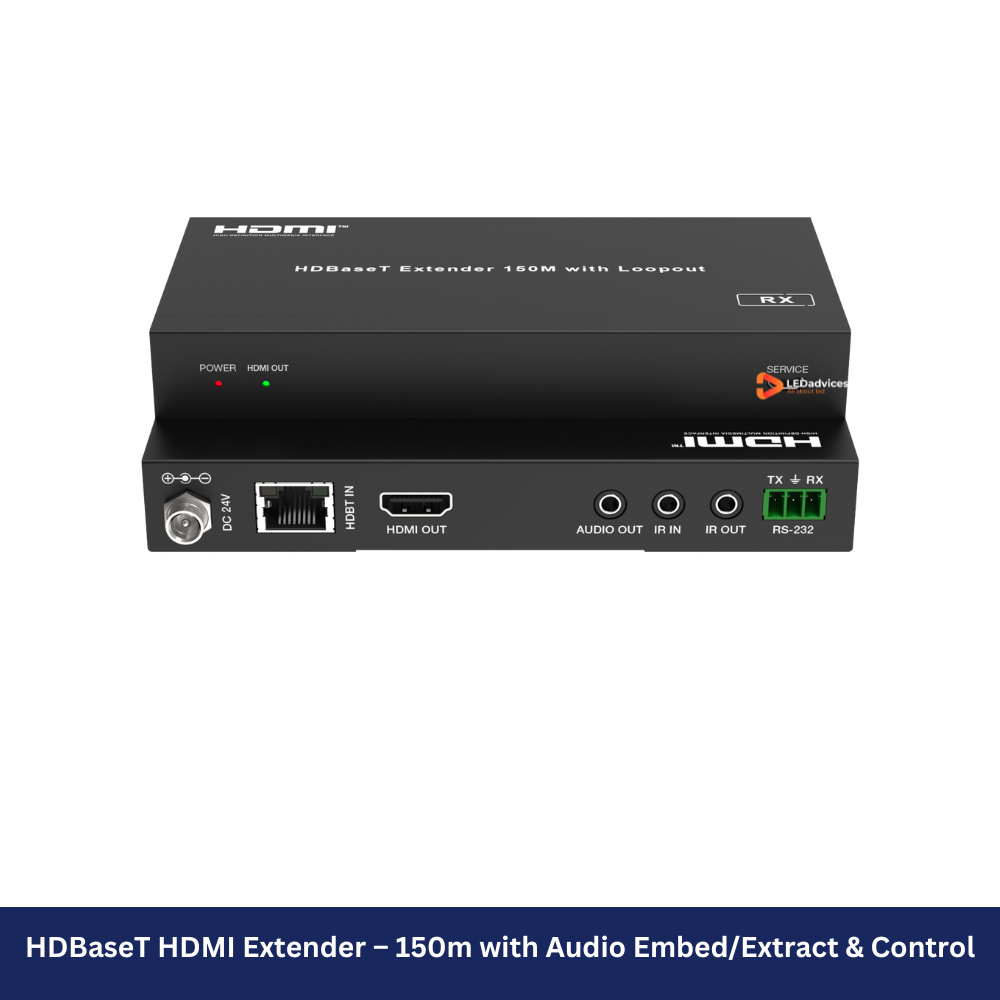

The HBT-E150CLA is a professional HDBaseT extender designed to transmit HDMI signals over long distances using a single CAT5e/6 cable—up to 150m (492ft)—with video resolutions up to 1080p@60Hz YUV 4:4:4.
It supports bi-directional IR control, RS-232 control, EDID management, audio embedment (on TX) and audio extraction (on RX). The transmitter also features HDMI loop-out for local monitoring. Built with a high-performance chipset, it ensures stable 24/7 operation with low power consumption.
Its plug-and-play design and compact form factor make it ideal for video conferencing, large-scale digital signage, outdoor displays, and home theater setups.
Key Features:
-
✅ HDMI 1.3 and HDCP 1.4 compliant
-
✅ Supports resolutions up to 1080p@60Hz YUV 4:4:4
-
✅ Extends HDMI signal up to 150m (492ft) via a single CAT5e/6 cable
-
✅ Supports bi-directional IR control and RS-232 control
-
✅ Intelligent EDID management for optimal compatibility
-
✅ Audio embedment (TX) and extraction (RX) support
-
✅ Bi-directional PoC (Power over Cable) – only one power supply needed
-
✅ HDMI loop-out for local display monitoring (TX)
-
✅ Compact, easy-to-install design
Applications:
-
Video conferencing systems
-
Outdoor LED wall and large-screen display setups
-
Home theater installations
-
Control room and security monitoring
-
Multimedia classrooms and training environments
Download the technical specification sheet here - LINK
