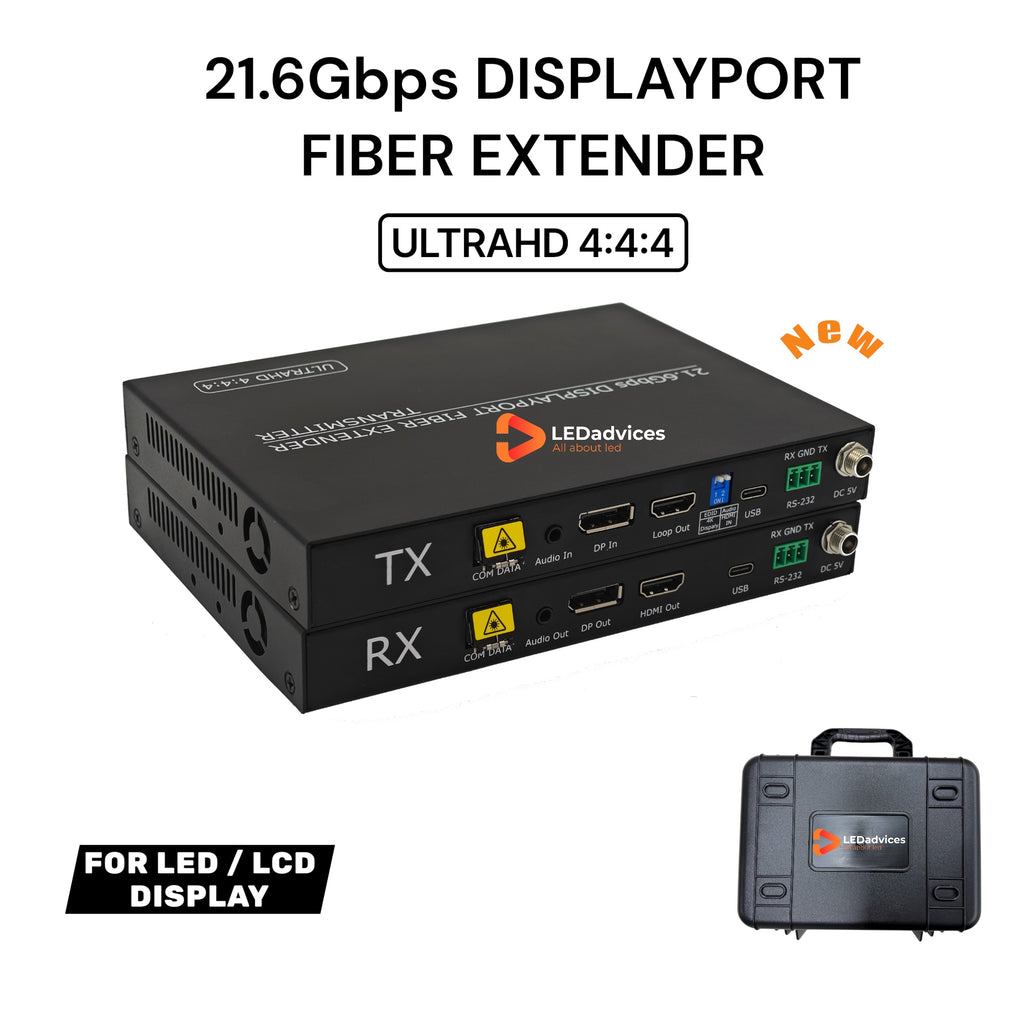

DP 1.2 4K@60Hz 4:4:4 Uncompressed Audio & Video Optical Extender – 10km Transmission

Key Features

• Supports synchronous audio and video extension output

• Up to 21.6Gbps video bandwidth, ensuring high-speed and lossless signal transmission

• Transmitter with HDMI loop-out for local signal monitoring and external audio embedding

• Receiver with HDMI backup output and audio de-embedding function

• Supports RS-232 pass-through and EDID management, simple and flexible control

• Transmission distance up to 10km via single-mode fiber optic cable

• Supports 4K2K@50/60Hz and 8K (7680×2160@30Hz 4:4:4) transmission

• Supports custom non-standard resolutions, max width and height up to 7680 pixels

• Compatible with multiple audio formats:

  LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-HD, DSD, etc.

• Fully compliant with DP 1.2, HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards

• Highly compatible with LED/LCD/Projector and other display systems



Interfaces

Transmitter (TX):

• 1 × DP 1.2 Input (4K@60Hz)

• 1 × HDMI 2.0 Loop Out (4K@60Hz)

• 1 × Audio Input

• 2 × LC Optical Ports

• 1 × RS-232

Receiver (RX):

• 1 × DP 1.2 Output (4K@60Hz)

• 1 × HDMI 2.0 Output (4K@60Hz)

• 1 × Audio Output

• 2 × LC Optical Ports

• 1 × RS-232

Supported Standards

• DisplayPort: 1.2 / 1.1

• HDMI: 1.3 / 1.4 / 2.0

• HDCP: 2.2

• DVI: 1.0

Application Scenarios

Ideal for:

• LED & LCD display systems

• Projection and large-screen installations

• Broadcasting and monitoring centers

• Conference rooms, exhibitions, and control rooms
