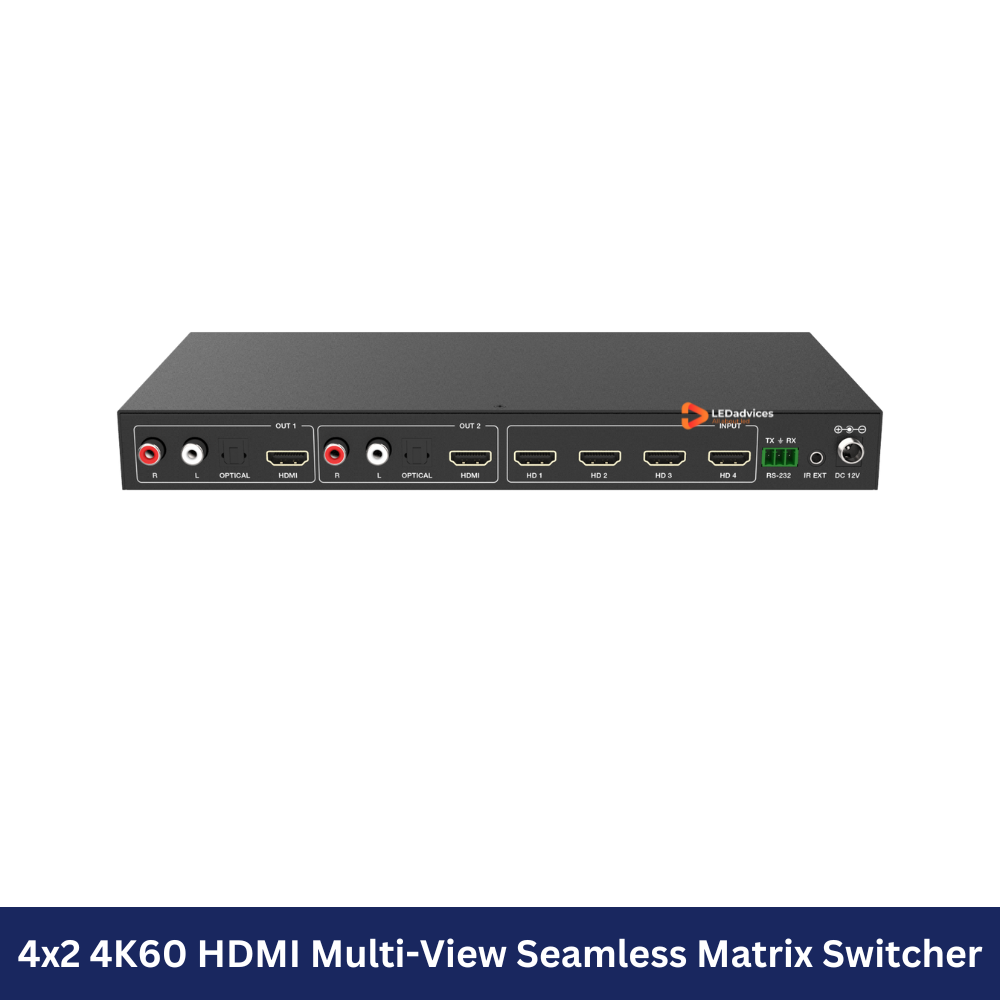

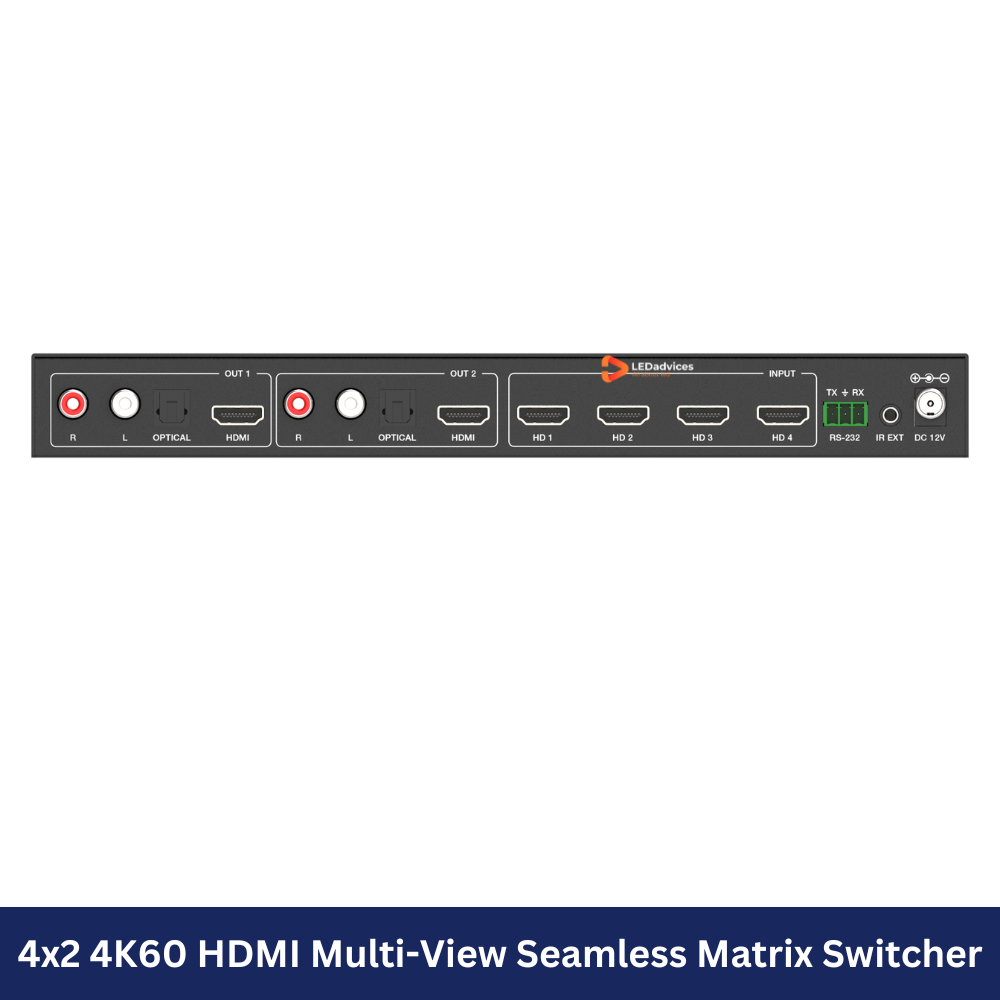

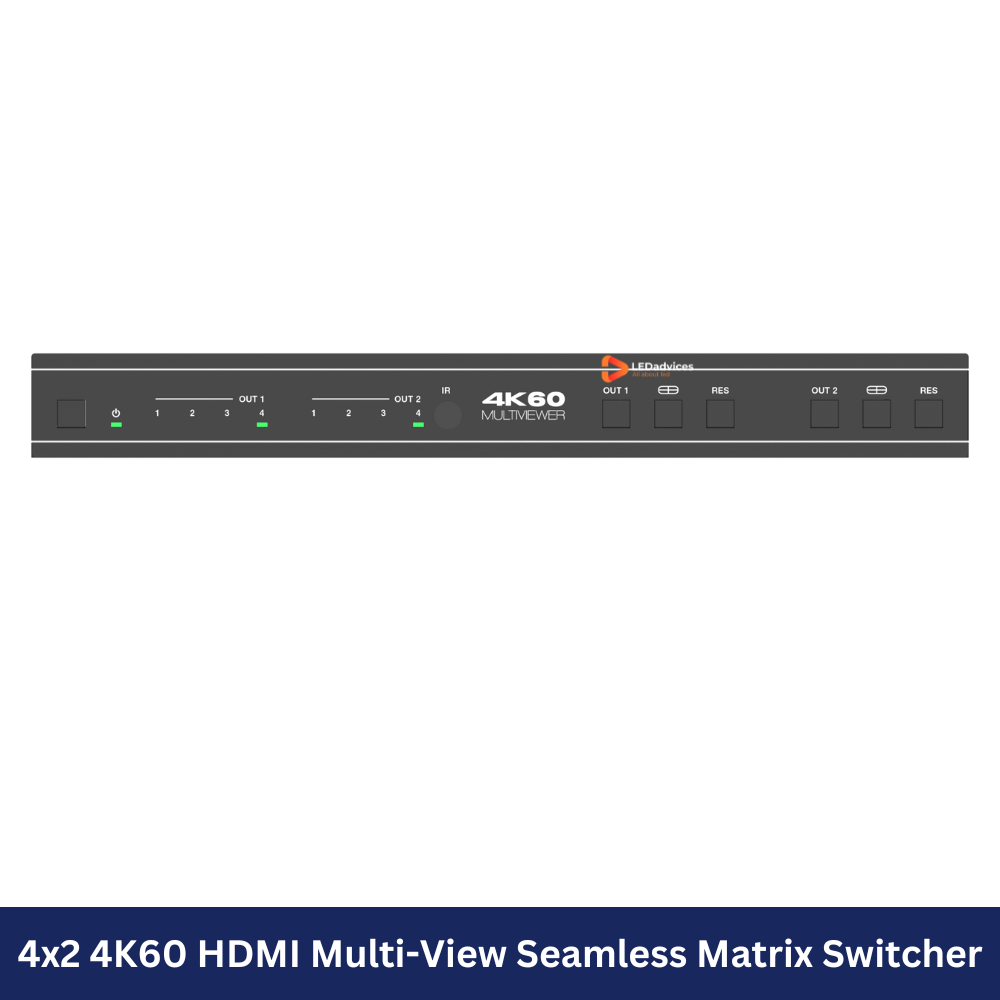

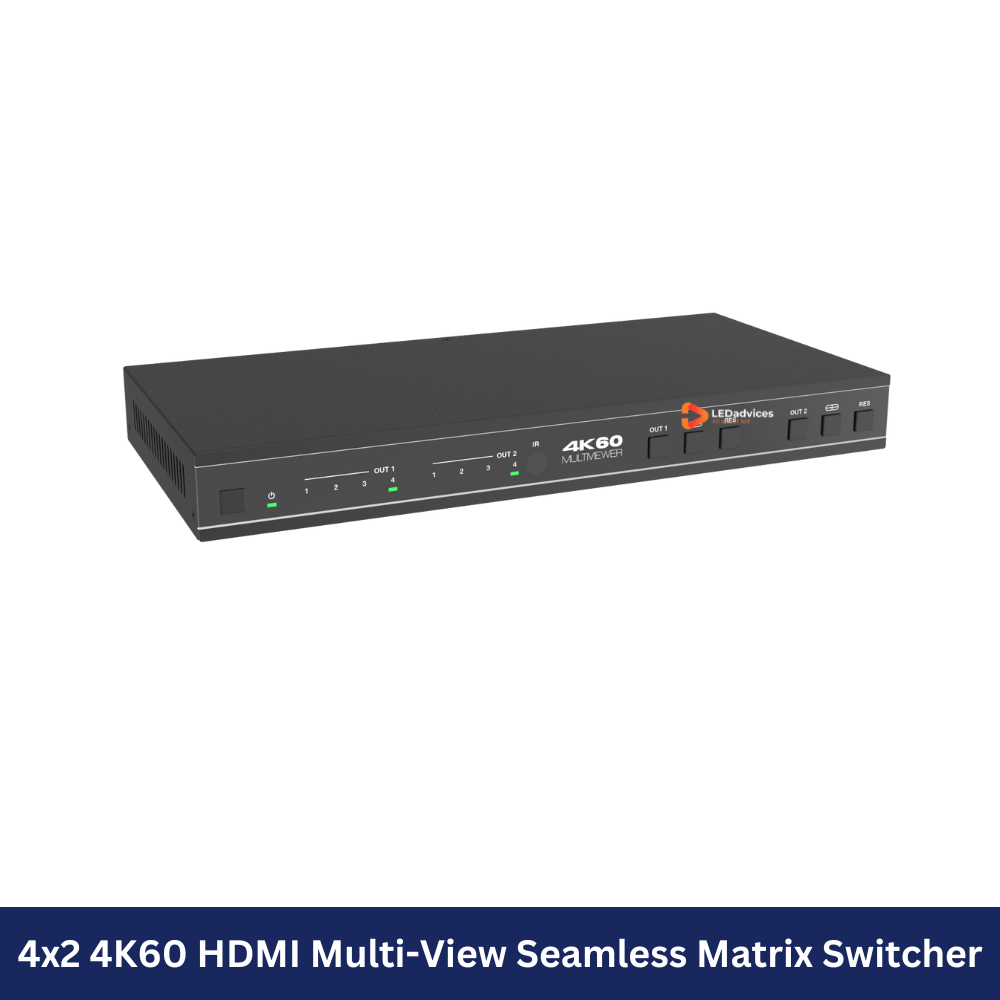

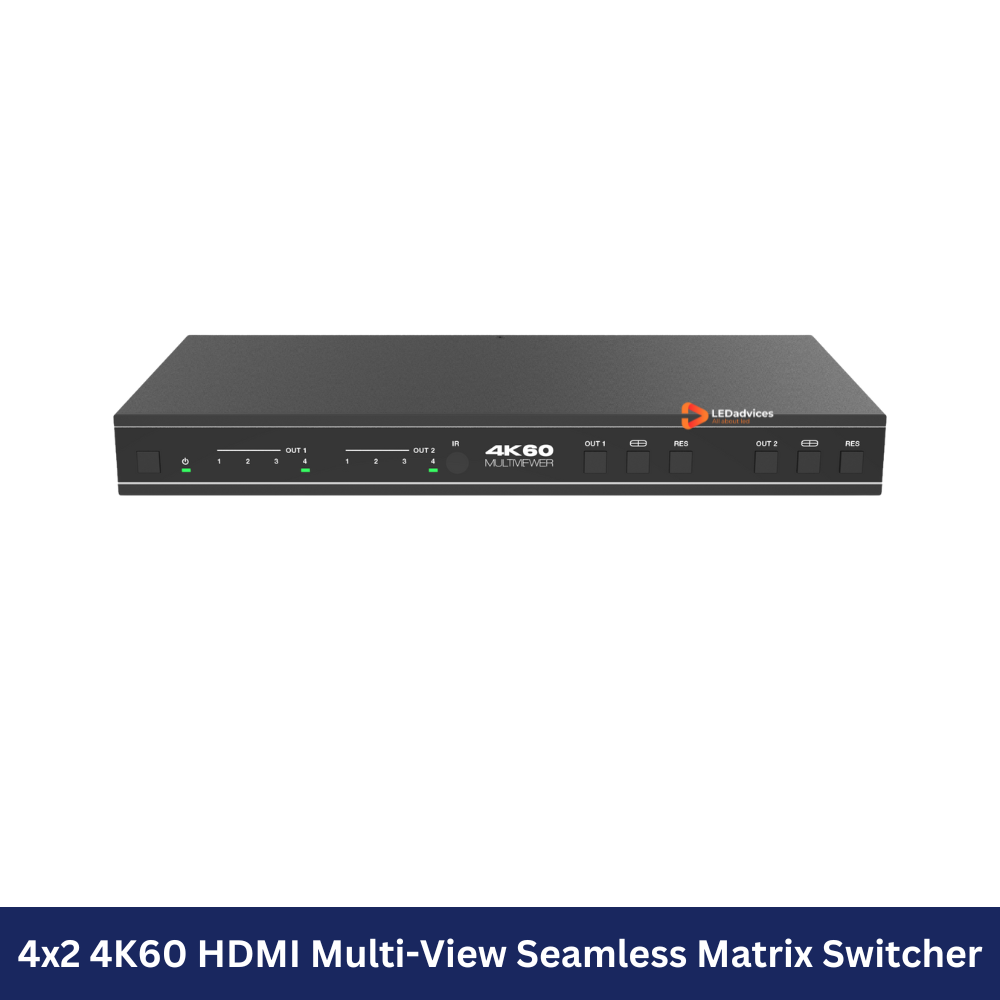

The HDC-MXB42MV is a professional-grade 4x2 4K60 HDMI multi-view seamless matrix switcher designed to display multiple input signals on one or two Ultra HD displays. With support for resolutions up to 4K@60Hz (RGB, 18Gbps bandwidth), it allows flexible, high-performance video processing, seamless switching, and multi-view configurations across 8 display modes.
Ideal for advanced AV installations, control rooms, live events, digital signage, and security monitoring, this device allows users to freely arrange, scale, and switch among four HDMI inputs across two outputs with zero latency or black screen.
✅
Key Features
-
Compliant with HDMI 2.0b and HDCP 2.2 / 1.x
-
Supports video bandwidth up to 18Gbps
-
4 HDMI inputs and 2 HDMI outputs, max resolution: 4K@60Hz (RGB 4:4:4)
-
8 flexible display modes:
SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
-
Seamless switching between input channels – no black screen or delay
-
Multi-view capability – combine and customize multiple inputs across two screens
-
Audio de-embedding – extract audio via analog (L/R) and optical (SPDIF) outputs
-
Supports LPCM, Dolby Digital+, Dolby TrueHD, DTS, DTS-HD Master Audio passthrough
-
Advanced OSD menu with on-screen setup
-
Multiple control options: front panel buttons, IR remote, OSD, RS-232, and PC software
-
Audio output selection and EDID management
-
Built-in scaling function for flexible layout and compatibility
🎯
Applications
-
Live video production & broadcasting
-
Multi-camera surveillance & monitoring
-
Digital signage and commercial displays
-
Corporate AV systems
-
Control centers and education environments
Download the technical specification sheet here - LINK
