Product Description

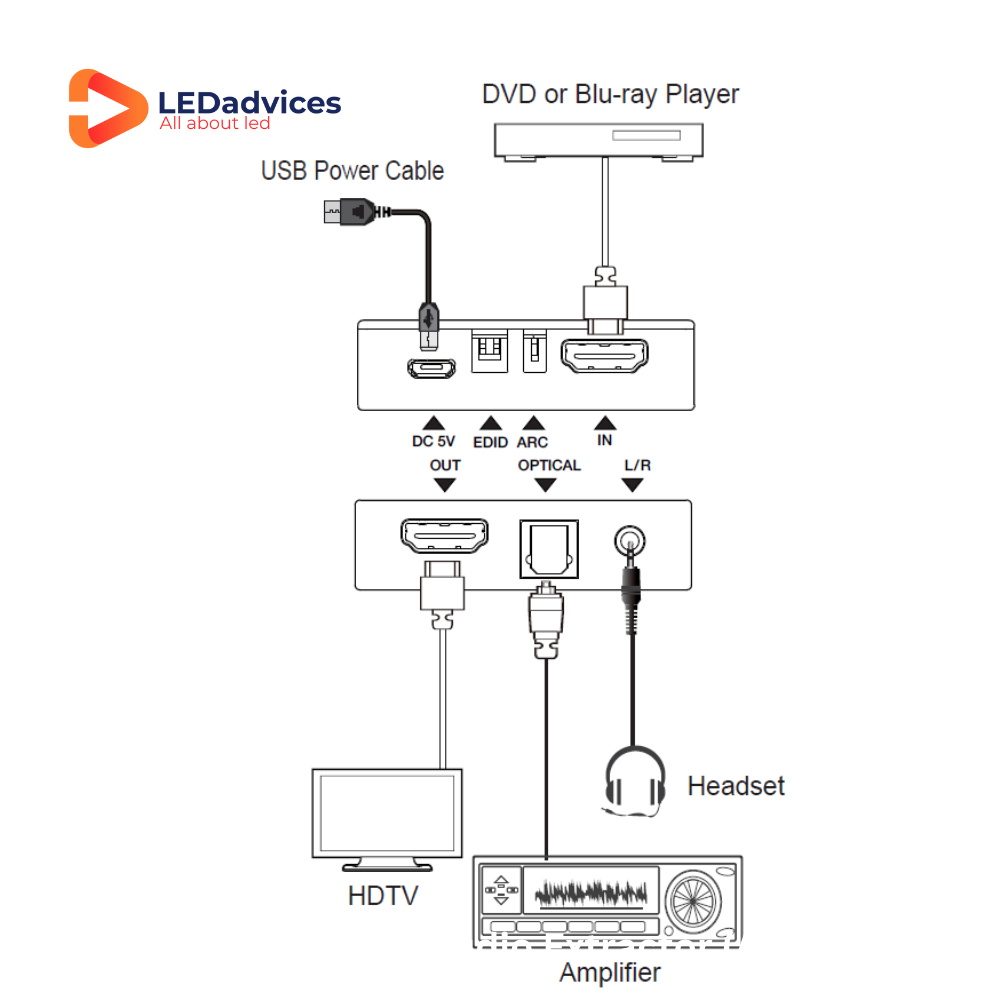

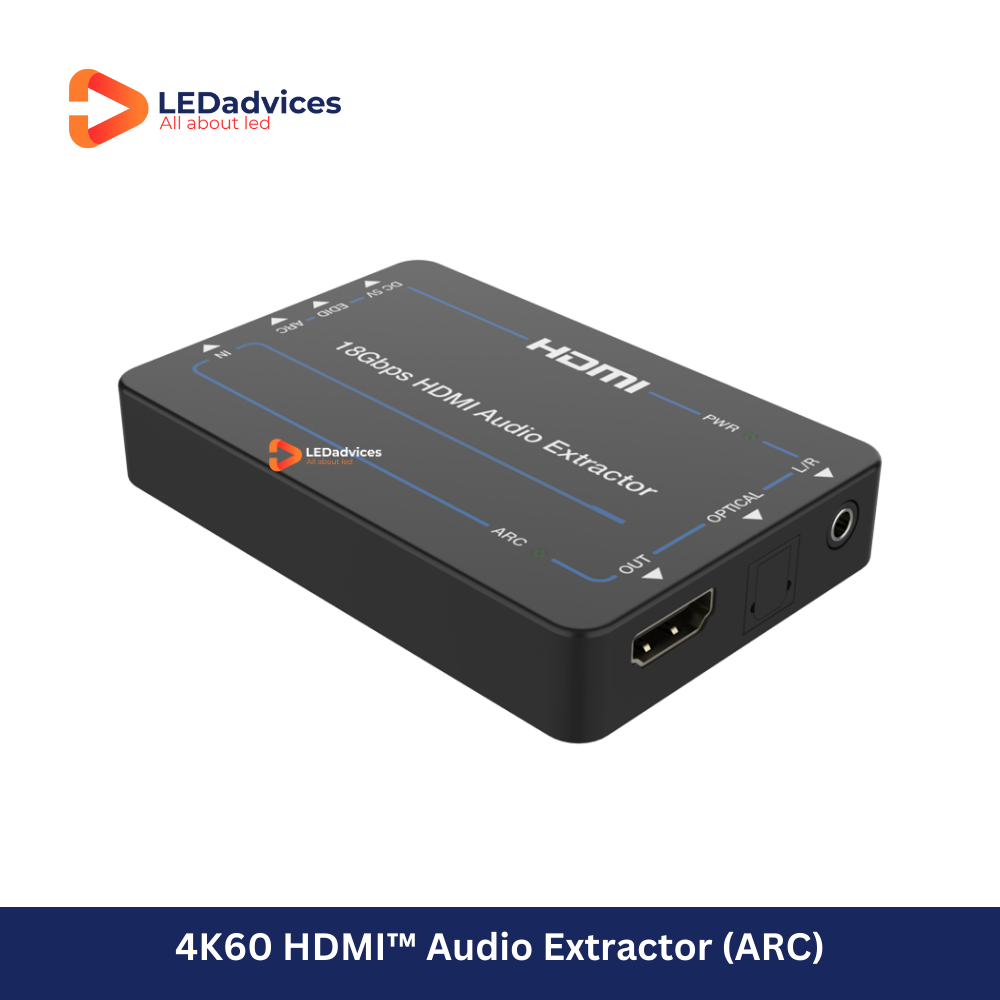

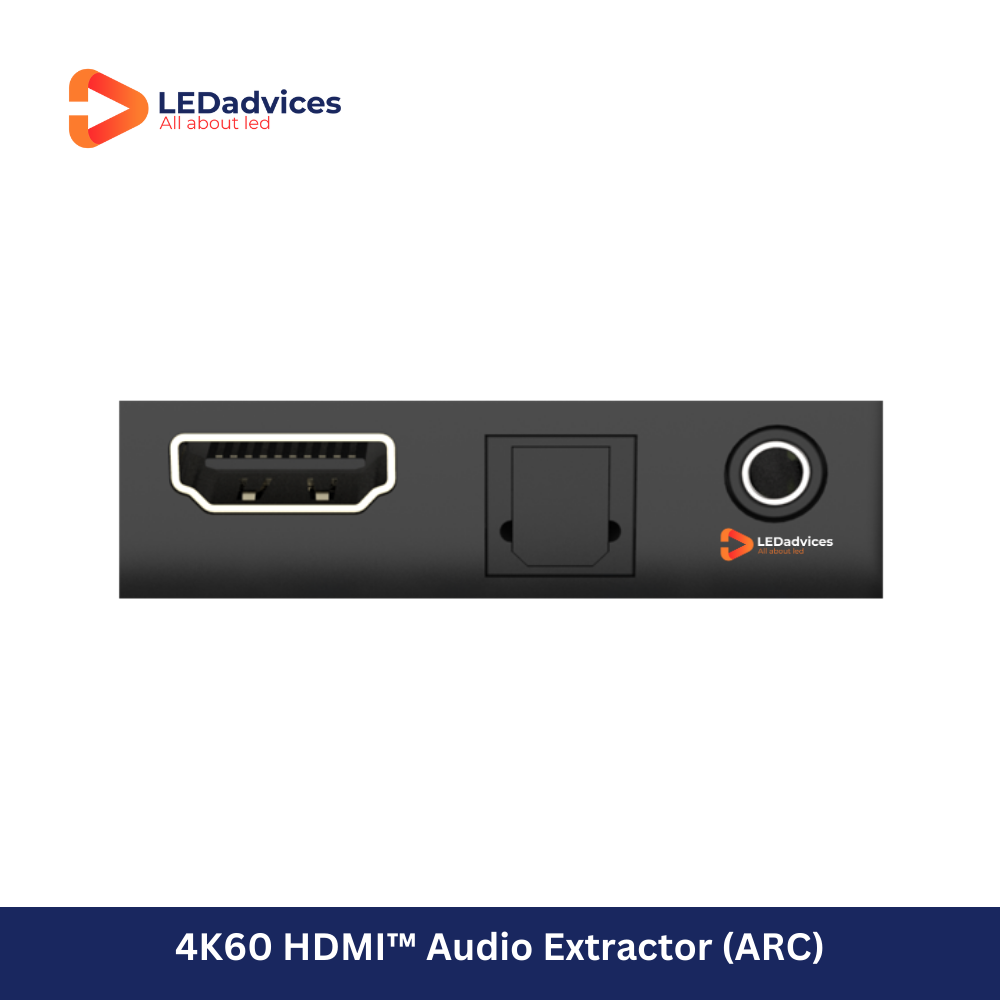

The HDC-MB01EB is a high-performance 4K60 HDMI Audio Extractor designed to extract audio from an HDMI source to both optical (SPDIF) and analog L/R audio outputs. It features one HDMI loop-out port and supports ARC (Audio Return Channel), allowing audio from a connected HDMI display to be returned via the same HDMI cable and output through the optical SPDIF port.

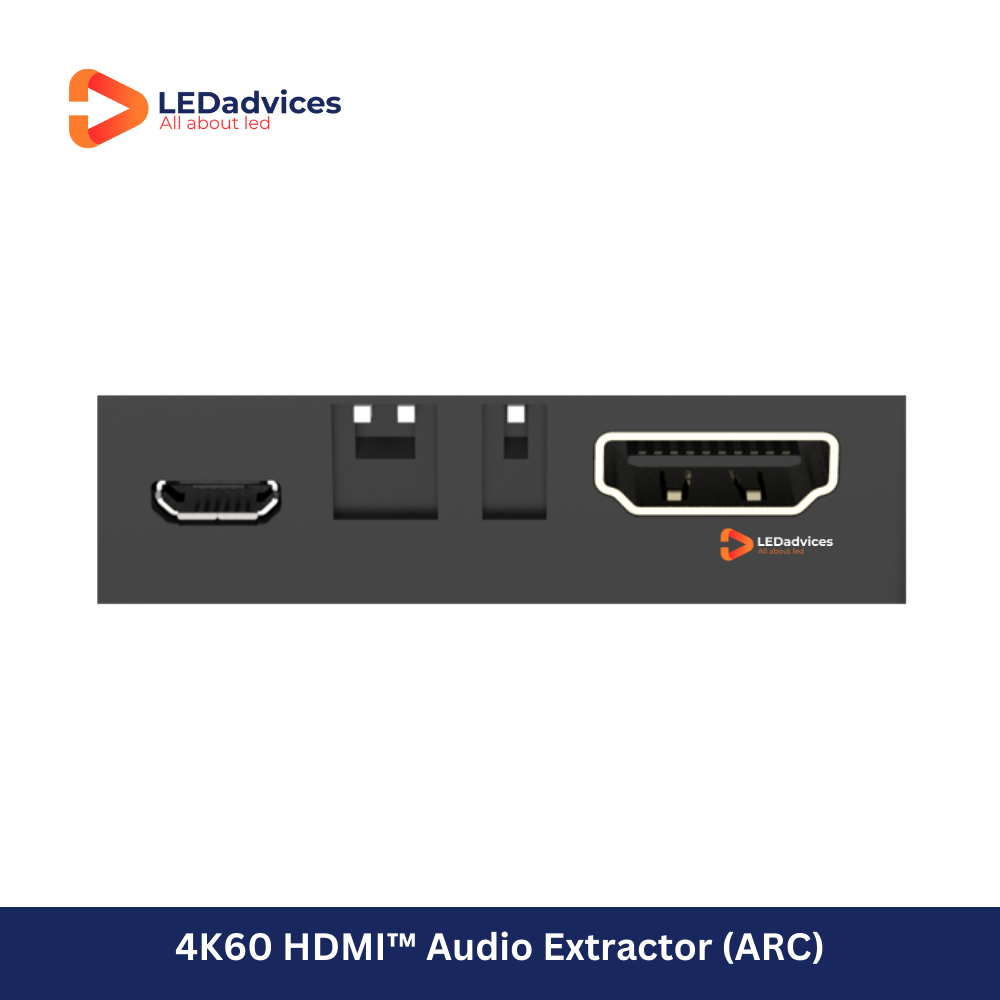

With support for HDMI 2.0b, HDCP 2.2, and resolutions up to 4K@60Hz (YUV 4:4:4), this device ensures excellent video and audio performance. Smart EDID management and ARC can be configured via front panel switches, making installation quick and user-friendly.
Key Features
✅ Compliant with HDMI 2.0b, HDCP 2.2, and DVI 1.0
✅ Supports ultra-high bandwidth up to 18Gbps
✅ 4K×2K@60Hz YUV 4:4:4 video resolution
✅ Extracts HDMI audio to both SPDIF (optical) and L/R analog outputs
✅ ARC support – return display audio to SPDIF via HDMI cable
✅ SPDIF supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
✅ Pass-through of HDMI high bit-rate (HBR) audio
✅ Audio sampling rates up to 192kHz
✅ HDR, HDR10, HDR10+, Dolby Vision, and HLG supported
✅ CEC pass-through available when ARC is disabled
✅ Compact design, easy to install and operate
Applications
-
Home Theater Systems
-
Conference Room AV Integration
-
Audio Extraction for Soundbars, Amplifiers, or AV Receivers
-
Digital Signage with Separate Audio Output
