Product Description

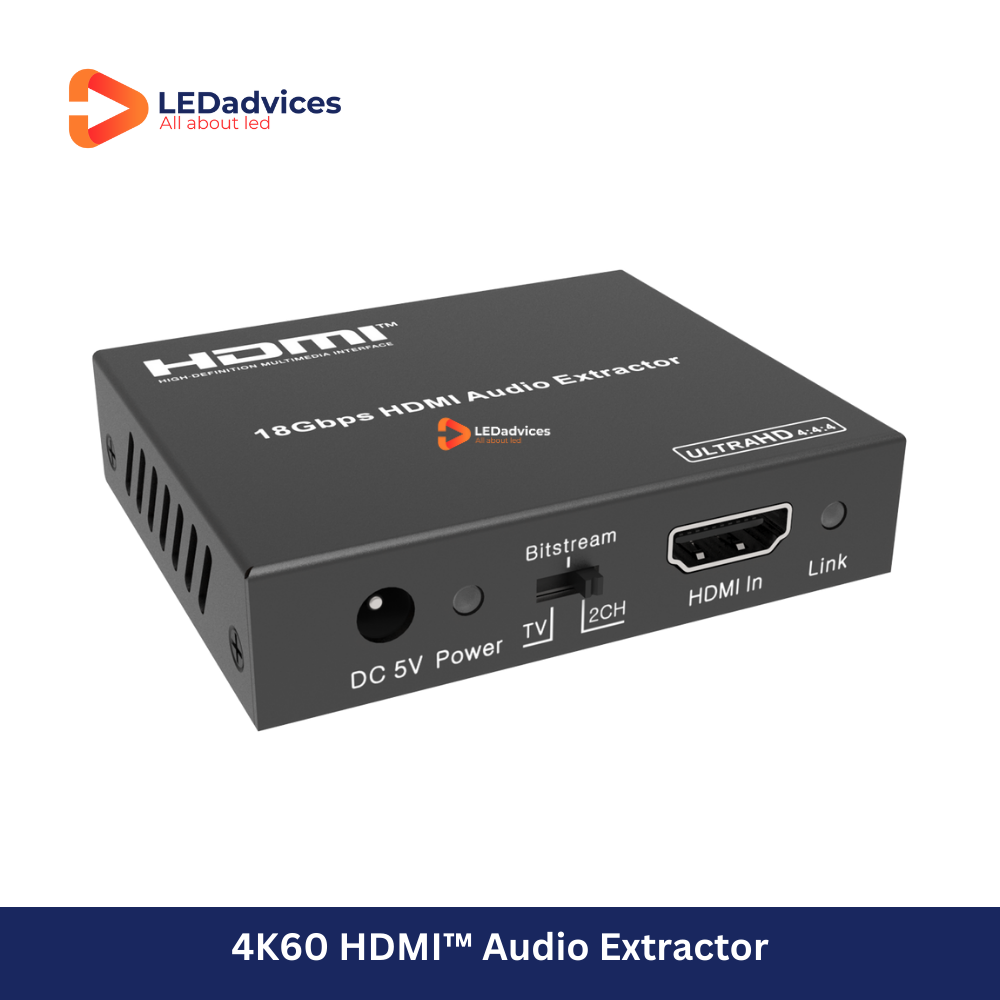

The HDV-MB01 is a high-performance 4K60 HDMI Audio Extractor designed to separate audio from an HDMI source to both optical (SPDIF) and analog L/R outputs. Supporting resolutions up to 4K@60Hz (YUV 4:4:4), this device also supports 10-bit HDR pass-through and high-bit-rate HDMI audio formats such as LPCM 2CH, Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio.

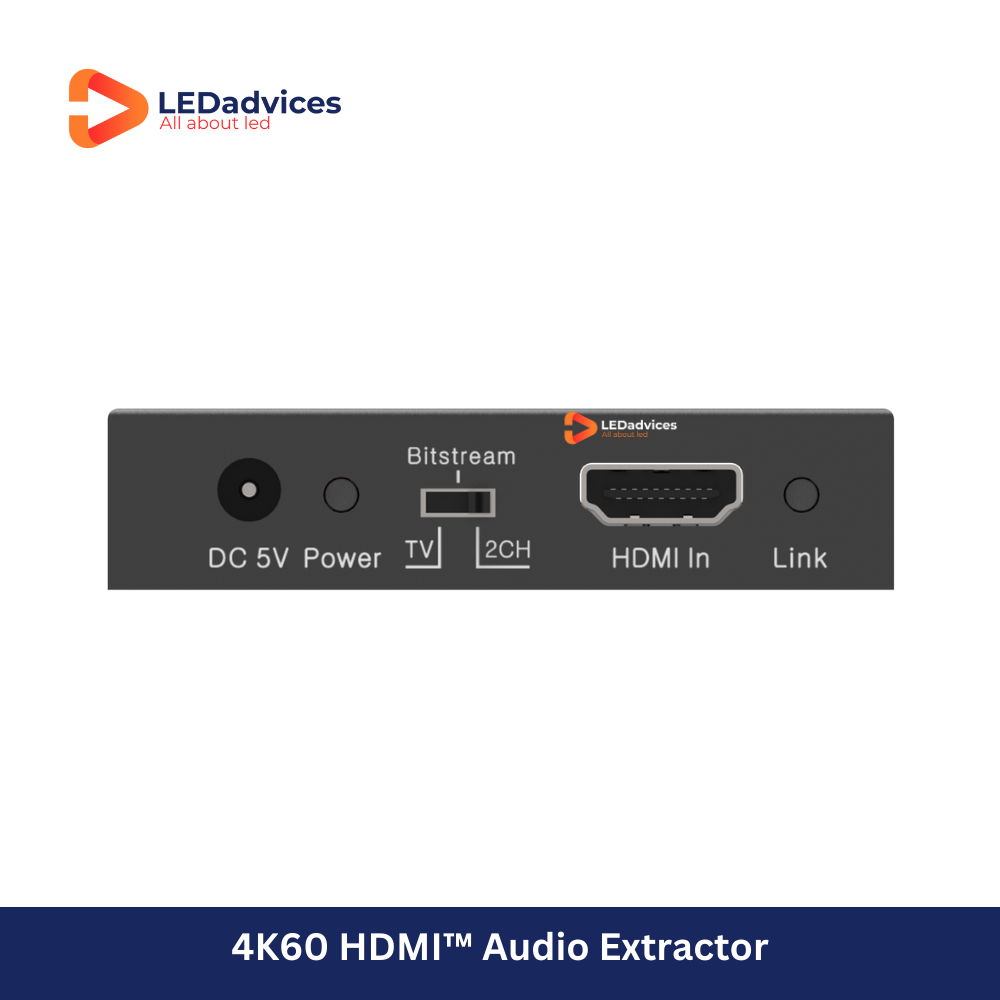

The front-panel dip switches allow users to select among TV, Bitstream, or 2CH audio modes for flexible output. With HDCP 2.2 and CEC pass-through, the HDV-MB01 integrates easily into home theater or professional AV systems.
Key Features
✅ Compliant with HDMI 2.0b, HDCP 2.2, and DVI 1.0
✅ Supports 4K2K@50/60Hz (YUV 4:4:4) video resolution

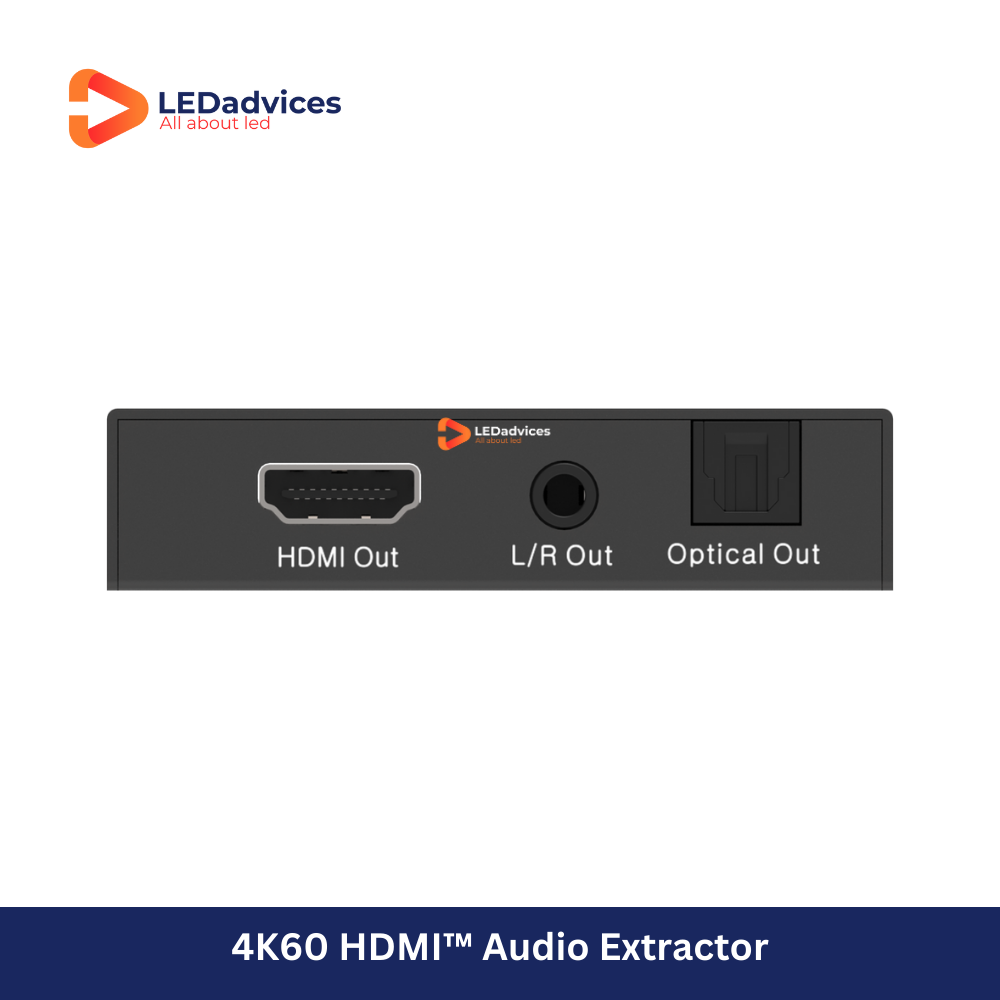

✅ Extracts audio from HDMI source to SPDIF (optical) and analog L/R outputs
✅ Supported SPDIF audio formats: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
✅ Supports high-bit-rate (HBR) audio pass-through: Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
✅ Audio sampling rates up to 192kHz
✅ Supports 10-bit HDR, HDR10, Dolby Vision, HLG
✅ CEC pass-through for convenient control integration
✅ Audio mode selectable: TV / Bitstream / 2CH
✅ Compact and easy to install

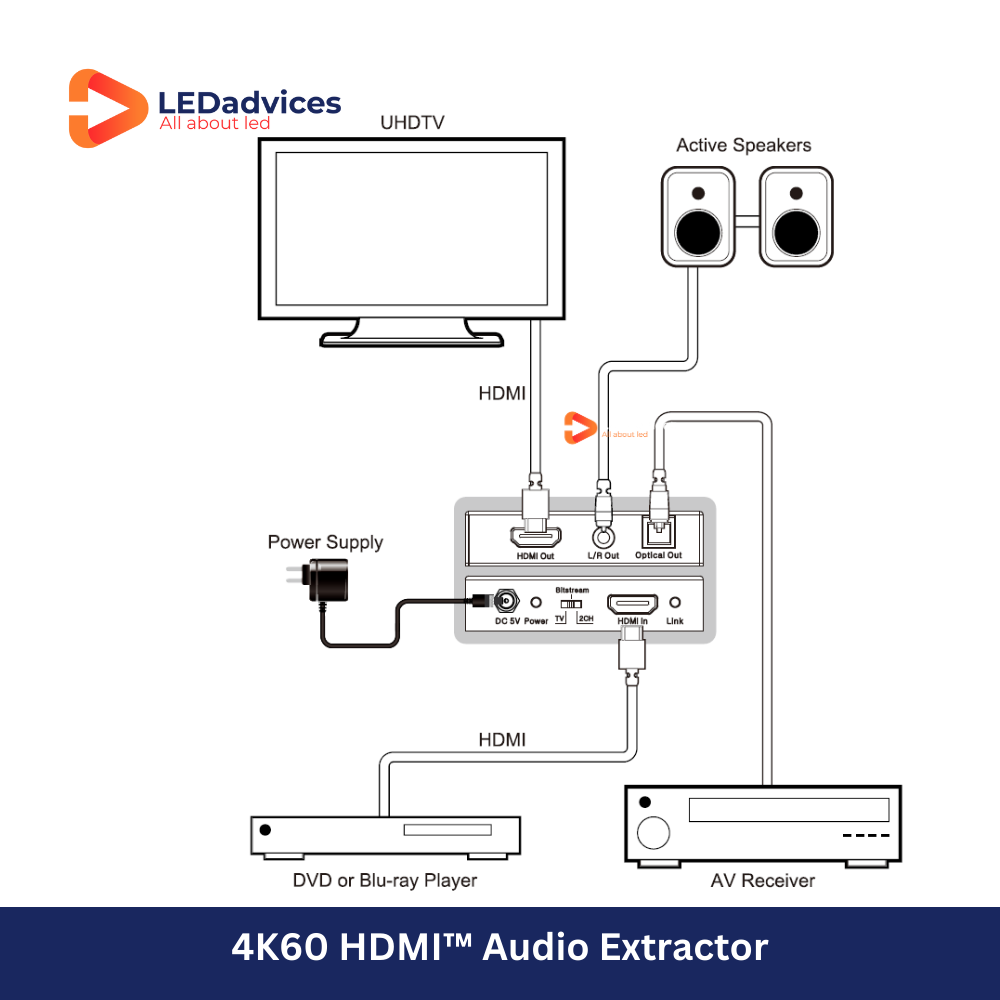

Applications
-
Home Theater Audio Extraction
-
Connecting HDMI sources to soundbars or AV receivers
-
Audio routing for multi-room AV systems
-
Professional AV installations requiring separate audio output
