Product Description

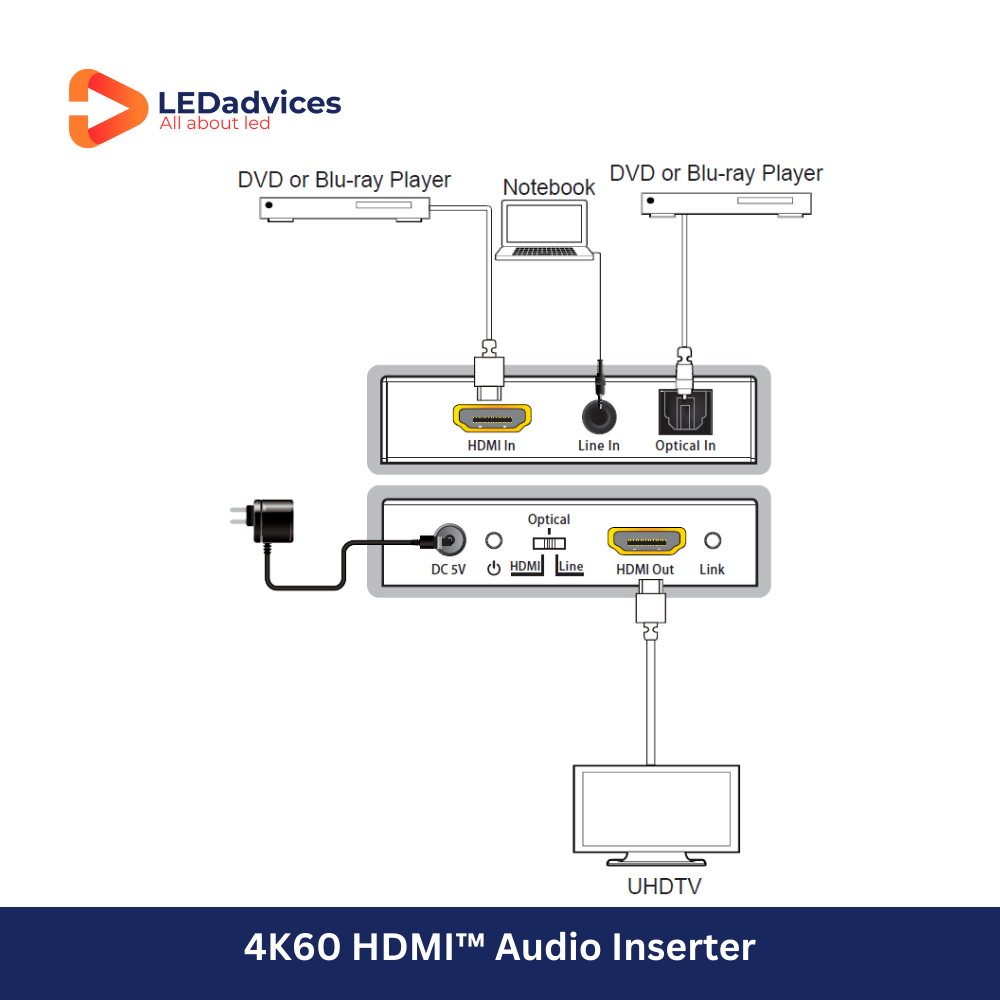

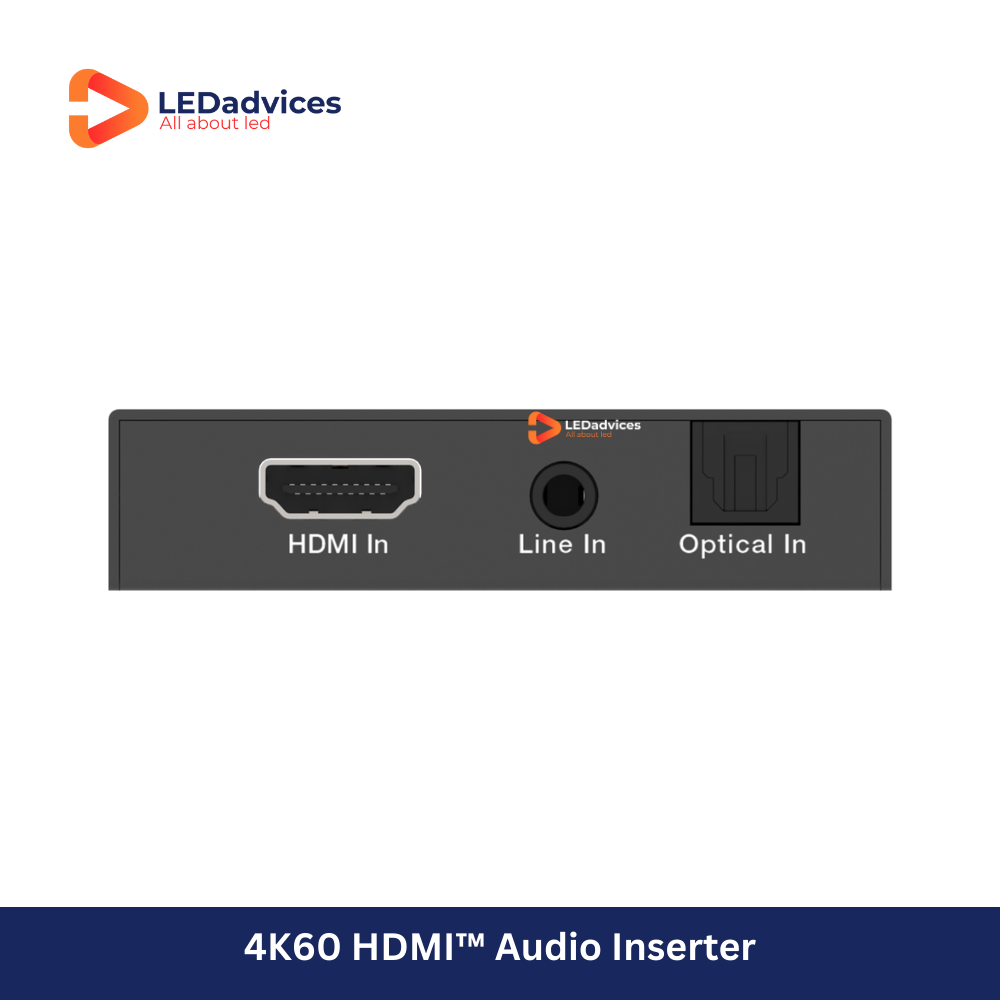

The HDV-MB03 is a 4K60 HDMI Audio Embedder designed to insert external audio—either from an optical SPDIF or analog stereo source—into an HDMI signal. With the convenient toggle switch, users can freely select between embedded HDMI audio, analog (Line in), or digital optical audio.
Both HDMI input and output support resolutions up to 4K@60Hz (YUV 4:4:4), along with 10-bit HDR pass-through and high bit-rate (HBR) digital audio. It supports audio sampling rates up to 192kHz and offers full CEC management compatibility.
Key Features
✅ Compliant with HDMI 2.0b, HDCP 2.2, and DVI 1.0
✅ Supports up to 4K2K@50/60Hz (YUV 4:4:4) video resolution
✅ Embeds SPDIF (optical) or analog (Line) audio into HDMI output
✅ Optical audio support: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
✅ Analog audio support: PCM 2.0
✅ Pass-through support for HDMI High Bit Rate (HBR) audio
✅ Supports 10-bit HDR, including HDR10, Dolby Vision, HLG
✅ CEC pass-through and management supported
✅ Switch-based control for flexible audio source selection
✅ Compact and reliable for integration in home AV or professional setups
Applications
-
Home Theater Integration with External Audio Source
-
AV Systems Requiring Audio Injection
-
Broadcasting and Live Event Audio-Video Synchronization
-
Digital Signage and Content Distribution Systems
