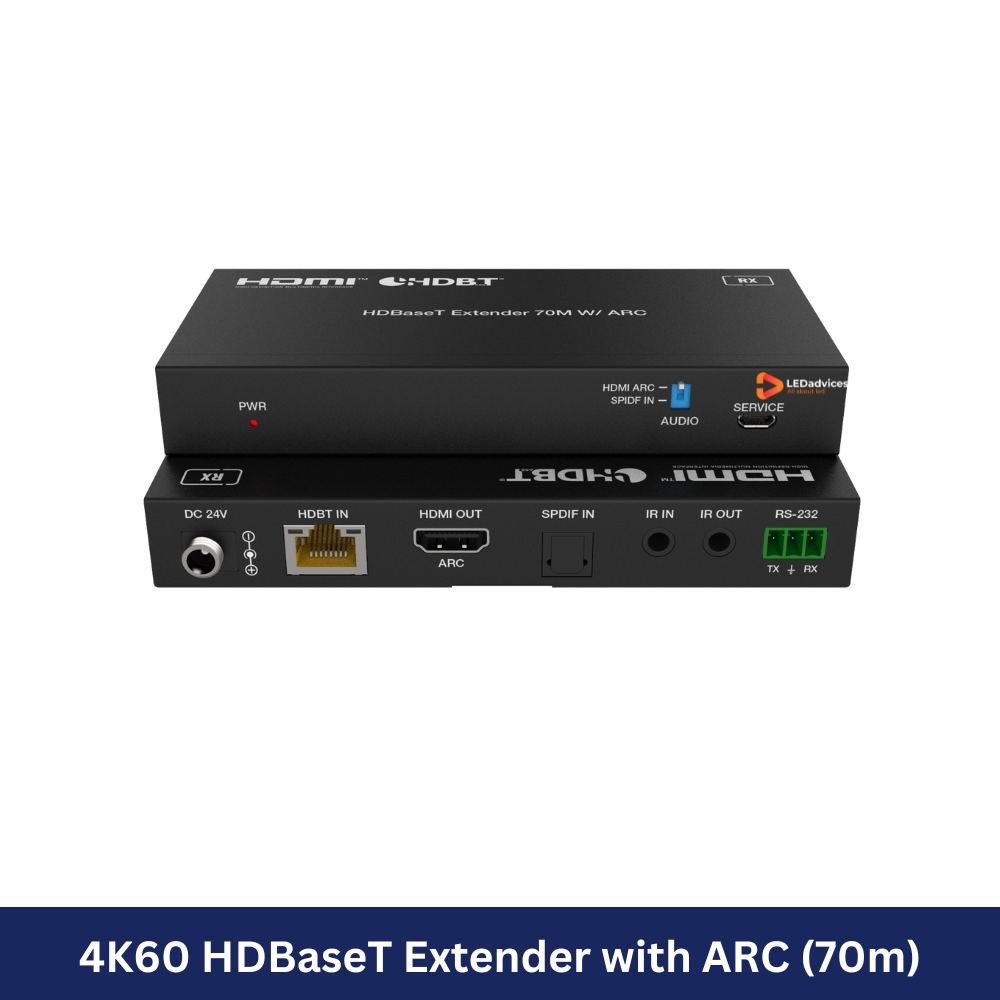

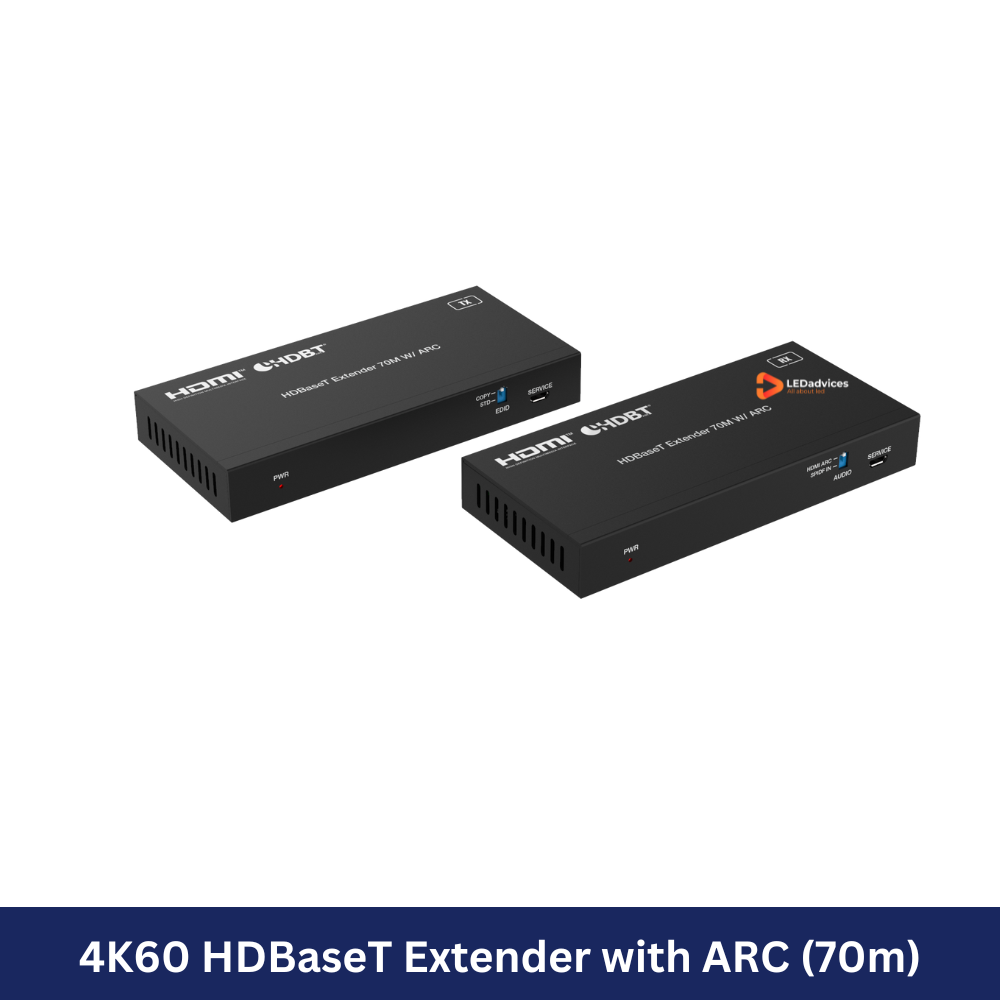

The HDC-EHB70ARC is a high-performance 18Gbps HDBaseT extender designed to transmit HDMI video/audio, bi-directional IR, RS-232, and ARC signals over a single CAT5e/6 cable up to 70 meters (230ft). Supporting resolutions up to 4K2K@60Hz RGB/YCbCr 4:4:4, it delivers crystal-clear ultra HD video with synchronized audio return channel capabilities for seamless AV integration.
This extender converts HDMI signals into HDBaseT format for long-distance transmission and supports advanced EDID management for optimal compatibility. The bi-directional IR and RS-232 pass-through enable flexible remote control of both source and display devices. PoC (Power over Cable) simplifies installation by powering the receiver via the CAT cable, eliminating the need for separate power adapters.
Ideal for video conferencing, multimedia broadcasting, digital signage, and professional AV installations, the HDC-EHB70ARC provides reliable performance with a compact design for easy setup.
Key Features:
☆ HDMI 2.0b and HDCP 2.2 compliant
☆ Supports 18Gbps video bandwidth
☆ Supports video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4
☆ Extends transmission distance up to 70m / 230ft via single CAT5e/6 cable
☆ Supports bi-directional IR and RS-232 control signal pass-through
☆ Supports ARC function, compatible with Dolby 5.1, DTS 5.1, PCM 2.0 audio formats
☆ Advanced EDID management
☆ Supports PoC (Power over Cable) function
☆ Compact and flexible design for easy installation
