The HDP-EHB100V3K is a cutting-edge HDBaseT 3.0 extender designed for seamless extension of uncompressed HD/UHD video, audio, USB 2.0, Ethernet, RS-232, bi-directional IR, and eARC/ARC signals up to 100 meters (328ft) over a single CAT6A/7 cable. Supporting ultra-high-definition video up to 4K@60Hz 4:4:4 with 18Gbps bandwidth, this extender ensures pristine picture quality for professional and residential AV installations.

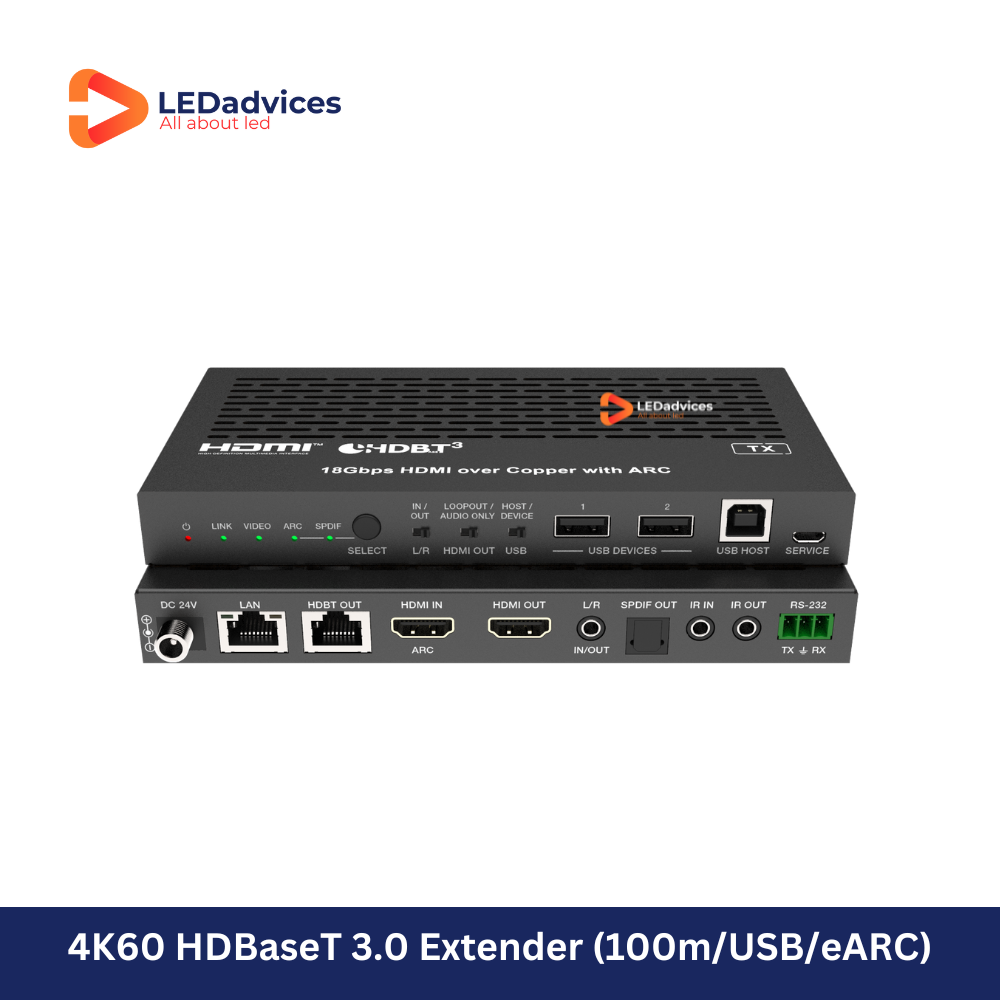

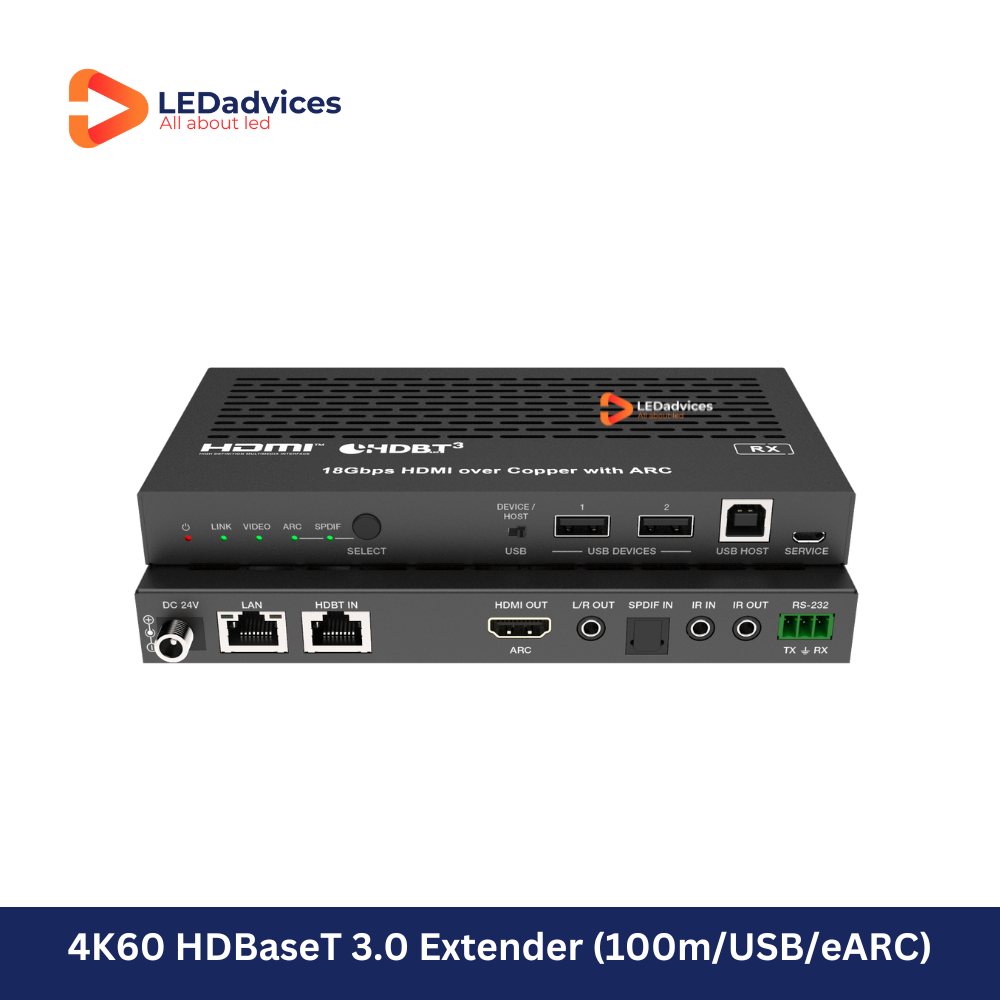

The transmitter unit features audio embedding and de-embedding capabilities, while the receiver supports audio de-embedding. The eARC/ARC functionality allows audio return either through the transmitter’s HDMI input, dedicated HDMI audio-only output, or SPDIF output. USB 2.0 connectivity supports flexible device configuration with Host/Device modes.
With bi-directional support for IR, RS-232, and 1Gb Ethernet pass-through, plus 24V Power over Cable (PoC), this extender streamlines system integration while minimizing cable clutter. Its compact design makes installation simple and flexible, ideal for home theaters, conference rooms, digital signage, and other demanding AV environments.
Key Features:
☆ HDMI 2.0b, HDCP 2.2, and HDBaseT 3.0 compliant
☆ Uncompressed 4K@60Hz 4:4:4 video support with up to 18Gbps bandwidth
☆ Pass-through support for HDR, HDR10, HDR10+, Dolby Vision, and HLG
☆ Supports LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS variants, and DSD audio formats
☆ Transmission distance up to 100 meters (328ft) over single CAT6A/7 cable
☆ eARC/ARC support with flexible audio return options via HDMI IN, HDMI audio-only OUT, and SPDIF OUT ports on transmitter
☆ SPDIF audio reverse transmission support
☆ Bi-directional IR, RS-232, and 1Gb Ethernet signal pass-through
☆ USB 2.0 transmission with configurable Host/Device mode
☆ Bi-directional 24V PoC (Power over Cable) support
☆ Compact and easy-to-install design
Download the technical specification sheet here - LINK
