Product Description

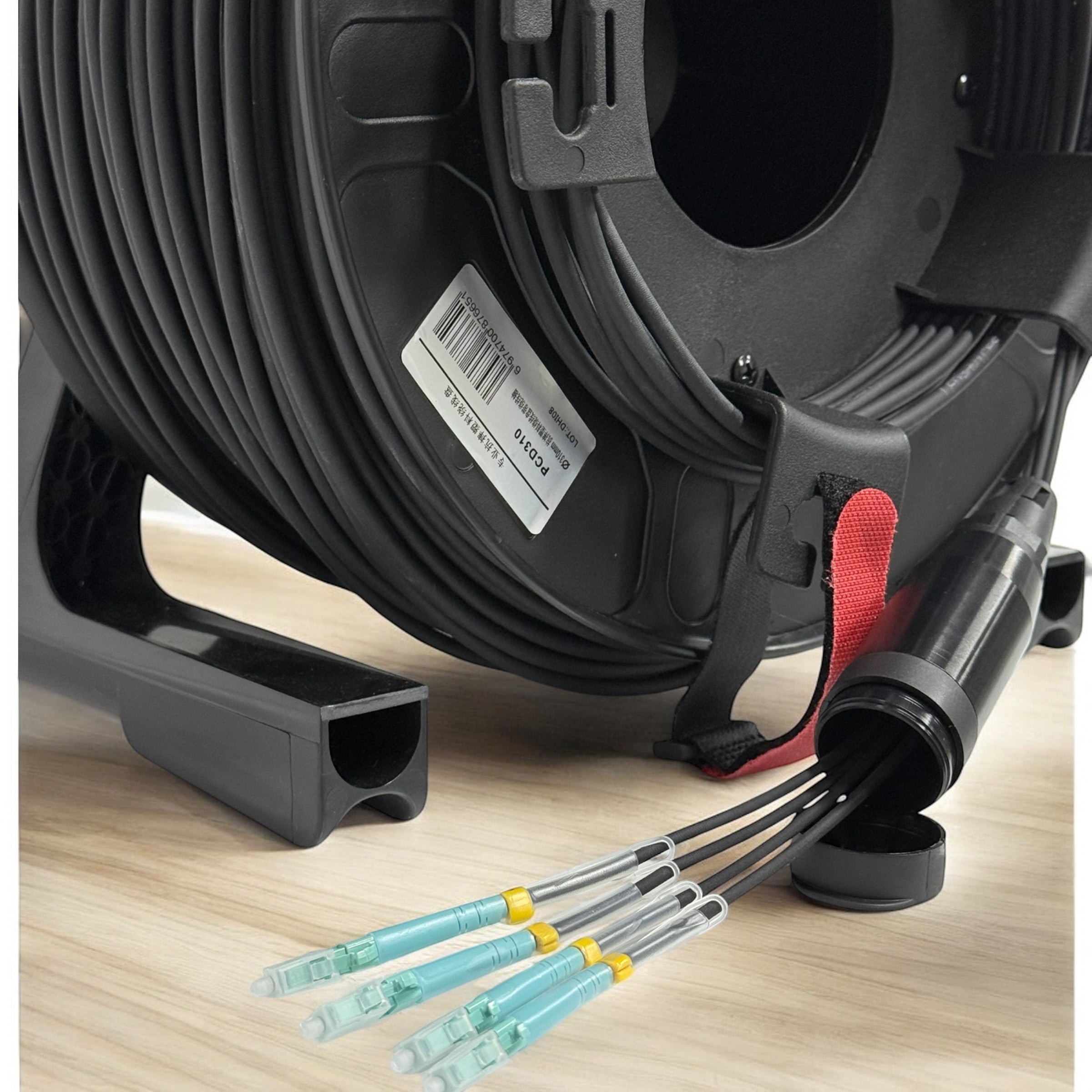

The 4-Core OM3 300 Multimode Armored Tactical Fiber Optic Cable is engineered for 10Gbps high-speed data transmission in harsh environments. It features multi-mode OM3-300 (50/125μm) fiber, ensuring excellent bandwidth performance for short to medium-distance applications. The 1000mm branch with 5 layers of armored steel ring, along with braided and aramid fiber reinforcement, provides outstanding protection against mechanical stress. The matt frosted TPU soft sheath offers superior resistance to abrasion, chemicals, and extreme weather conditions, while also being anti-mouse bite, tensile, and compression resistant, making it ideal for tactical and outdoor deployments.
Technical Specifications
-
Fiber Type: Multi-mode OM3-300 (50/125μm)
-
Armor: 5 layers of armored steel ring, braided and aramid fiber
-
Reinforcement Structure: Dupont Kevlar with metal weave
-
Structural Layers: Tightly wrapped optical fiber + spiral-armored tube + Kevlar + metal braid + outer jacket
-
Jacket Material: Matt frosted TPU
-
Cable Diameter: 5.0mm
-
Fiber Wavelength: 850 - 1300nm
-
Full Bandwidth:
-
850nm ≥ 1500MHz · km
-
1300nm ≥ 500MHz · km
-
Effective Bandwidth:
-
850nm ≥ 2000MHz · km
-
1300nm ≥ 500MHz · km
-
Transmission Rate: 10Gb/s within 300 meters
-
Tensile Strength:
-
Long-term: 400N
-
Short-term: 800N
-
Crush Resistance:
-
Long-term: 2000N/100mm
-
Short-term: 3000N/100mm
-
Minimum Bending Radius:
-
Static: ≤ 50mm
-
Dynamic: ≤ 100mm
-
Operating Temperature: -20°C to +85°C
-
Connector Options: LC, SC, FC, ST (customizable)
Key Advantages
-
10Gbps Ultra-Fast Data Transmission: OM3 multimode fiber supports up to 10Gbps Ethernet over 300 meters, ensuring high-speed and stable connectivity.
-
Enhanced Mechanical Protection: 5-layer armored steel ring with Kevlar and metal weave for superior durability.
-
Superior Flexibility & Strength: Dupont Kevlar reinforcement provides excellent tensile strength while maintaining flexibility.
-
Durable TPU Outer Jacket: Frosted TPU coating is resistant to abrasion, UV exposure, extreme temperatures, and rodent bites.
-
Lightweight & Portable: 5.0mm compact design for easy deployment and handling.
-
Versatile Connectivity: Compatible with LC, SC, FC, and ST connectors for various networking applications.
Application Scenarios
-
10Gbps Data Centers & High-Speed Networks: Ideal for high-bandwidth connections in enterprise and telecom infrastructures.
-
Field Communication & Military Use: Reliable performance in tactical and emergency communication setups.
-
Outdoor Events & Broadcasting: Ensures stable optical transmission for live streaming, concerts, and sports events.
-
Industrial & Harsh Environments: Designed for mining, oil & gas, and other demanding industrial applications.
-
Security & Surveillance Systems: Provides stable, long-distance connectivity for outdoor and remote CCTV setups.
The 4-Core OM3 300 Multimode Armored Tactical Fiber Optic Cable is a top choice for 10Gbps high-speed, rugged, and reliable optical connectivity in demanding environments.
