12G SDI Optical Extender – Uncompressed Long-Distance HD Transmission

Key Features

• Supports digital SDI high-definition uncompressed audio & video transmission

• Adaptive to 12G / 6G / 3G / HD / SD-SDI input signals

• Resolution up to 2160P@60Hz, backward compatible with lower standards

• Supports 3D video synchronous long-distance transmission

• Detachable SFP module with LC optical port for easy maintenance and upgrades

• Standard 10km transmission distance, optional 20 / 40 / 60 / 80km long-range modules

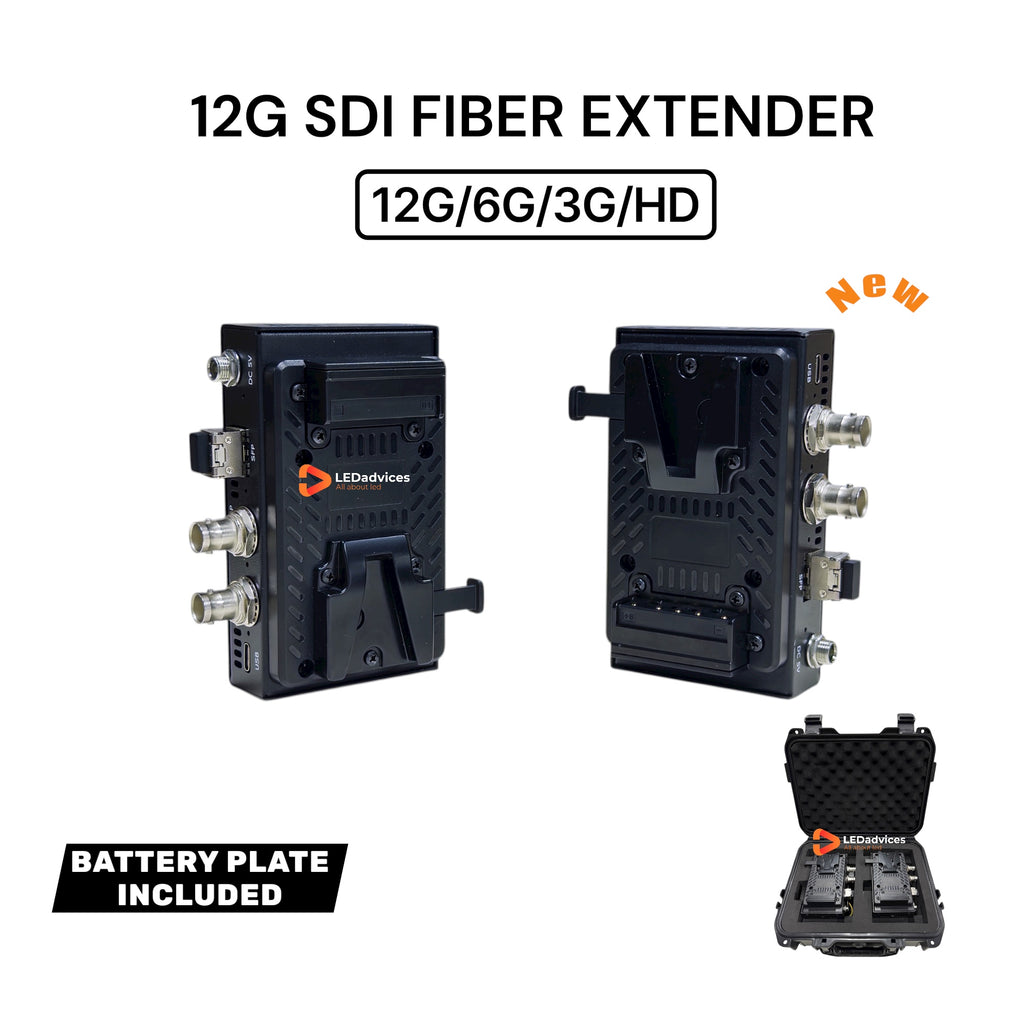

• Optional V-mount battery power supply for portable field applications

• Hot-swappable power design for uninterrupted operation

• Fully compliant with SMPTE 12G / 6G / 3G / HD / SD-SDI standards



Supported Signal Standards

• SMPTE ST-2082, ST-2081, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI

• Data Rates: 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 6Gbit/s, 12Gbit/s

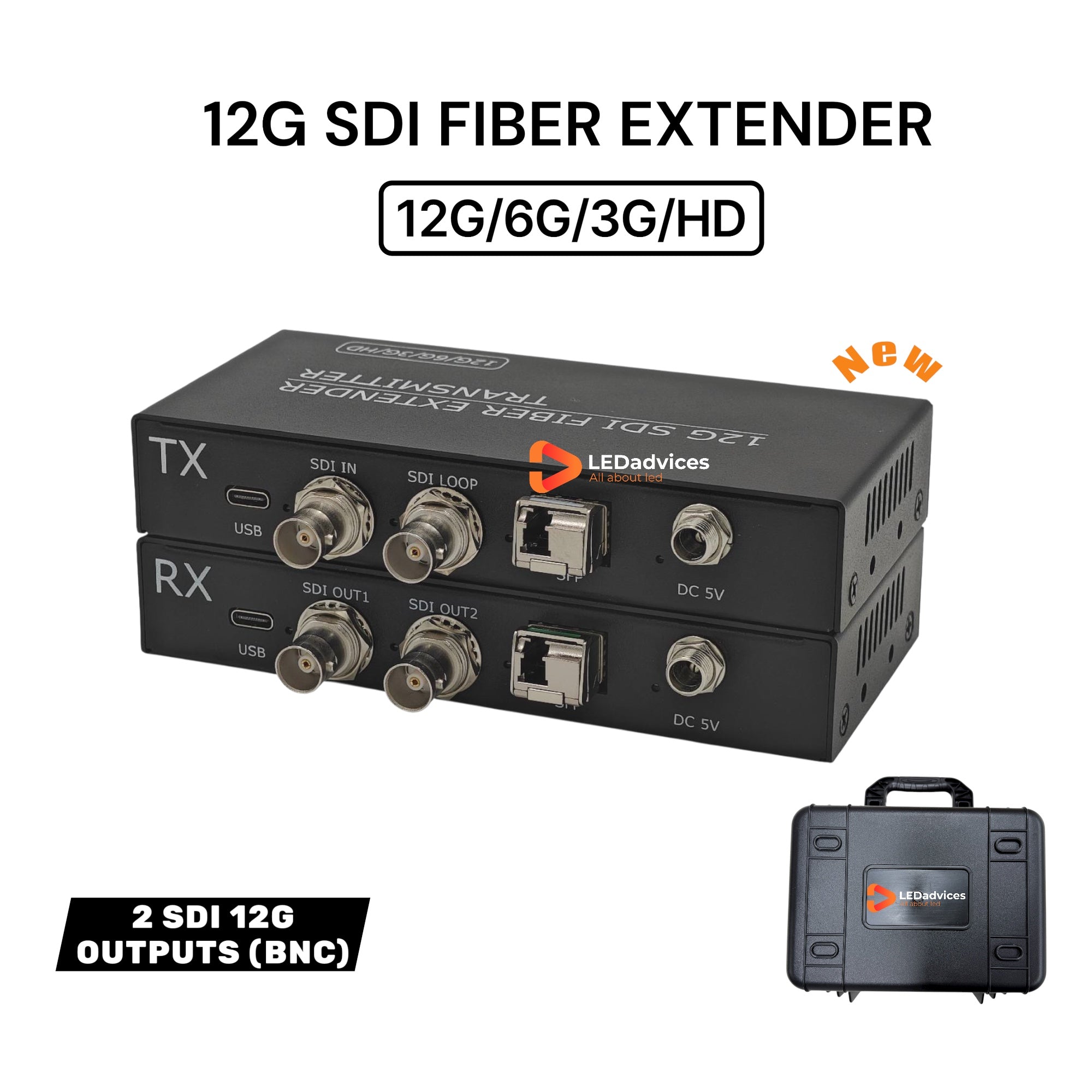

Interfaces

Transmitter (TX):

• 1 × SDI 12G Input (BNC)

• 1 × SDI 12G Loop Out (BNC)

• 1 × SFP Optical Port (LC)

• 1 × USB Type-C

• 1 × DC 5V Power Input

Receiver (RX):

• 2 × SDI 12G Outputs (BNC)

• 1 × SFP Optical Port (LC)

• 1 × USB Type-C

• 1 × DC 5V Power Input



Applications

• Broadcasting and television systems

• Live event video transmission

• LED display and video wall integration

• Outdoor shooting, OB vans, and monitoring centers

• Medical imaging, studio production, and control rooms
