Elevate Your Setup with Next-Gen Invisible Connectivity

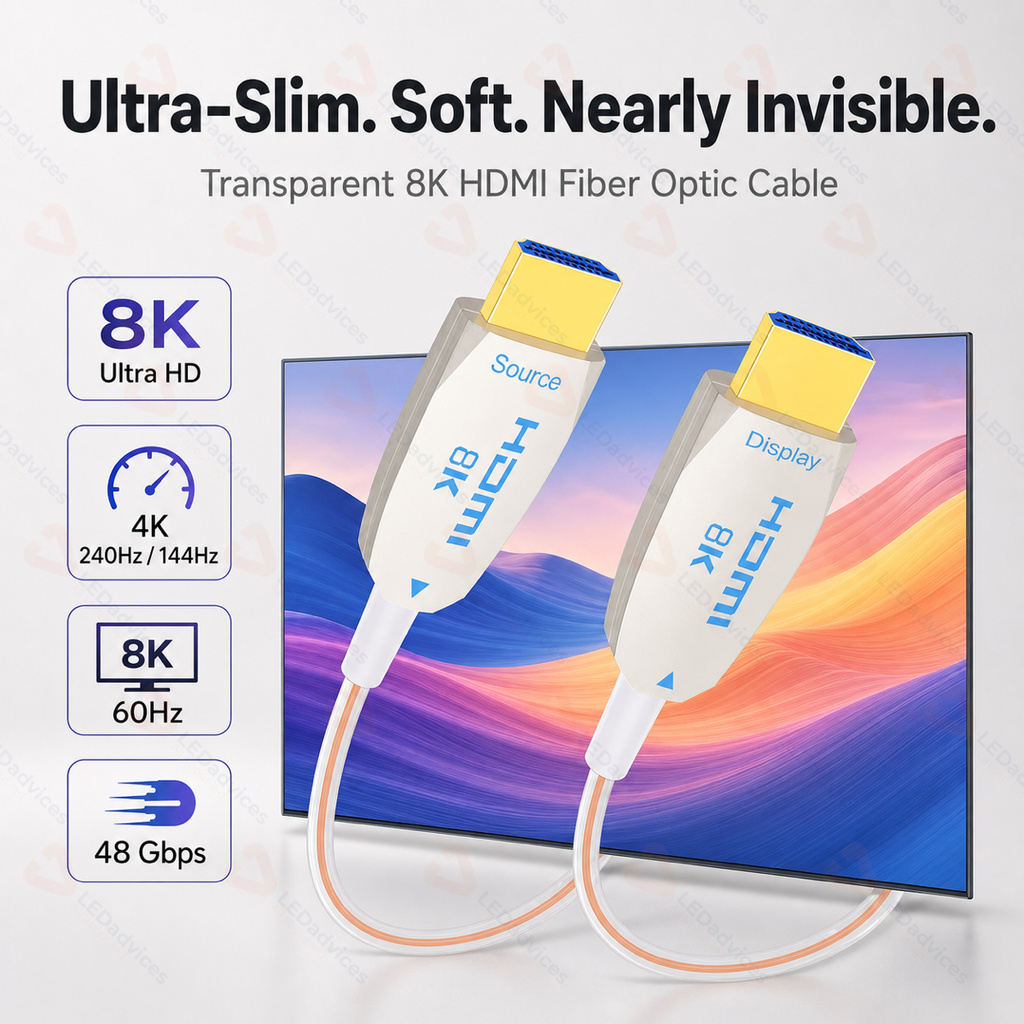

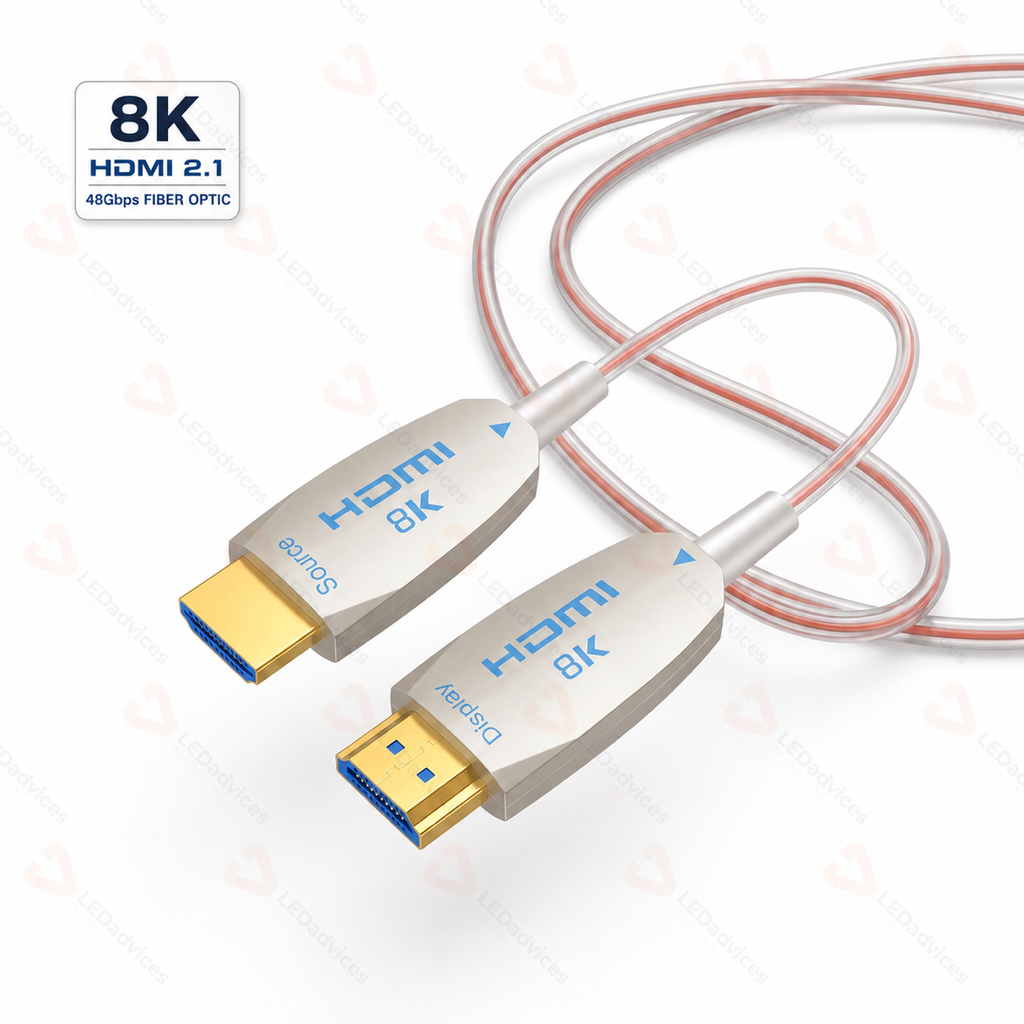

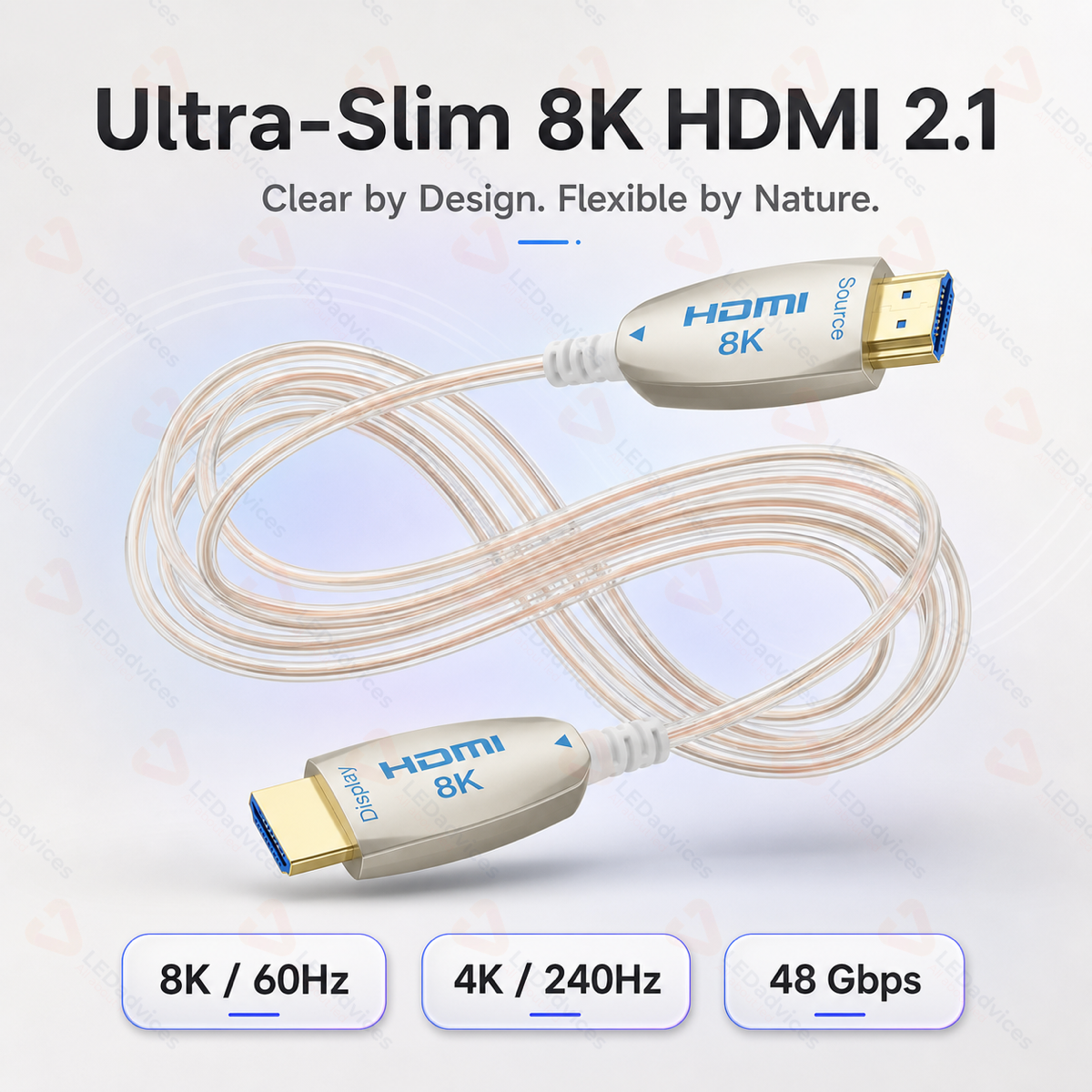

Upgrade your home theater, gaming station, or professional A/V setup with the LA-TR-HDMI-AOC Ultra-Thin 8K HDMI 2.1 Optical Cable. Unlike bulky, heavy 8mm black traditional HDMI cables, this next-generation Active Optical Cable features a crystal-clear transparent jacket that effortlessly blends into any interior decor, delivering a sleek, seamless "invisible" look.
Uncompromised 8K Performance & 48Gbps Bandwidth
Powered by advanced 4-channel VCSEL optical technology, this cable supports up to 48Gbps bandwidth, enabling flawless transmission of 8K@60Hz (7680x4320) and 4K@144Hz/240Hz high-frame-rate content. Enjoy crystal-clear detail, ultra-smooth motion for competitive gaming, and rich color depth with full dynamic HDR, Dolby Vision, and HDR10+ support.
Immersive Cinema-Grade Audio
Take full advantage of high-bitrate surround sound. With enhanced Audio Return Channel (eARC), Dolby Atmos, and DTS:X support, your audio passes uncompressed and in perfect sync with your display.

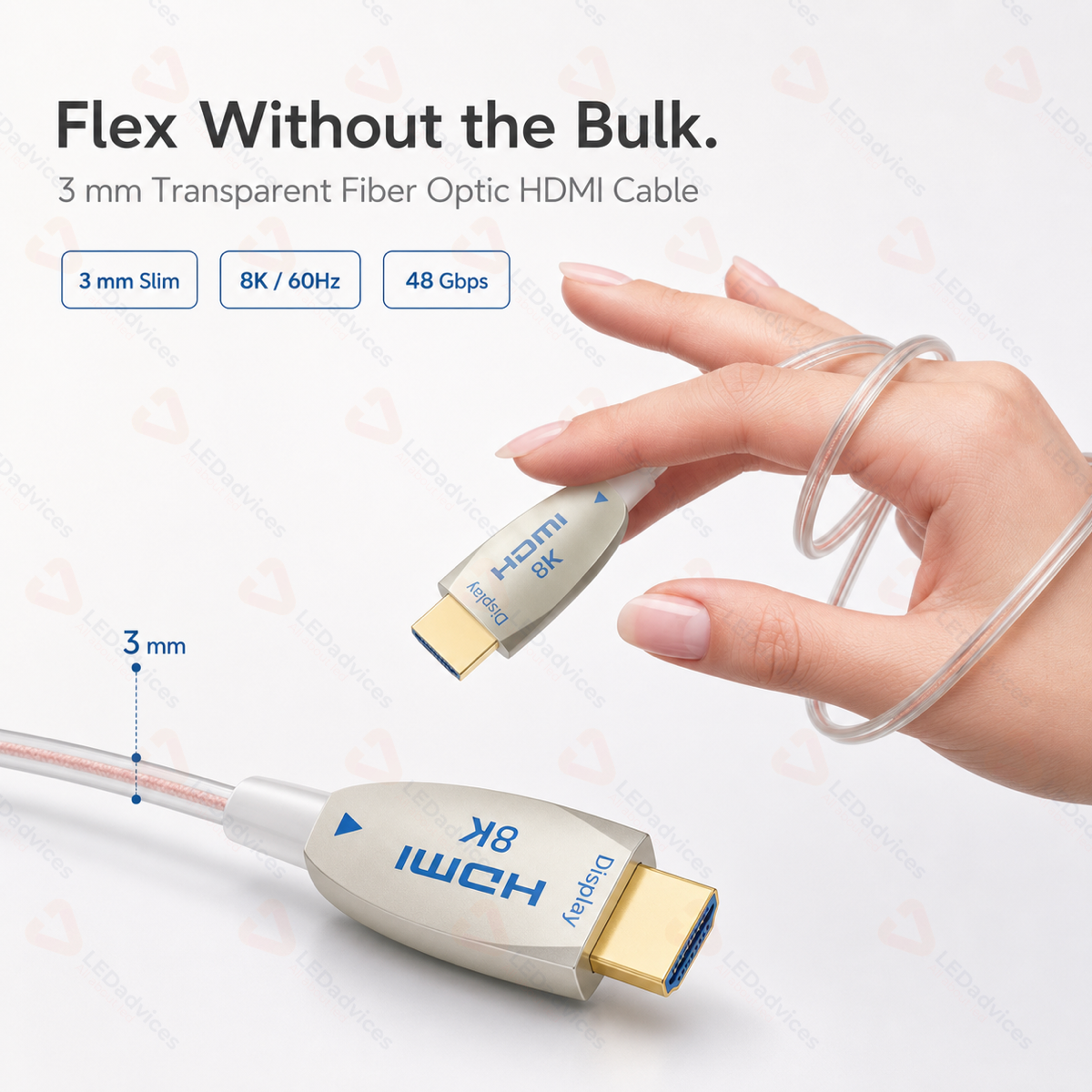

Ultra-Thin & Maximum Bending Flexibility
Measuring just 2.5 x 3.5 mm in profile with a tight 20mm minimum bending radius, this cable is radically softer and easier to manage than traditional copper or thicker fiber cables. Run it along baseboards, through conduits, or behind wall-mounted TVs without clutter or hassle.
Key Features & Highlights
|
Feature
|
Specification
|
| Standard |
HDMI 2.1 Type-A Male to Type-A Male, Backward Compatible with HDMI 2.0/1.4
|
|
Bandwidth |
Up to 48Gbps (12Gbps per channel x 4) |
|
Resolution Support |
8K@60Hz, 5K@60Hz, 4K@144Hz, 2K@240Hz, 1080P@240Hz |
|
Cable Structure |
Hybrid Optical Fiber (4x OM3 Fiber + 7x Copper Wires) |
|
Jacket |
Transparent Ultra-Thin PVC (2.5 x 3.5mm / 3.0mm OD) |
|
Audio Format |
eARC, Dolby Atmos, DTS:X, 32-Channel Audio, 192kHz/24-bit LPCM |
|
Power Supply |
Self-powered by HDMI source (4.5V~5.5V), Max 250mW consumption |
|
Certifications |
CE Compliant |
Technical Specifications Table
|
Product Model |
LA-TR-HDMI-AOC |
|
Connector Type |
HDMI 2.1 Type A to Type A (Gold-Plated Connectors) |
|
Solution |
4 Channel 850nm VCSEL Array Transmitter & GaAs PD Receiver |
|
HDCP & CEC |
Fully supports HDCP 2.3, bi-directional EDID, and CEC |
|
Gaming Features |
Supports Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) |
|
Minimum Bend Radius |
20 mm |
|
Tensile Strength |
25 KGs |
|
Connector Pull-out Force |
2 KGs |
|
Life Test |
> 10,000 insertion cycles |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Available Lengths |
0.5m, 1m, 2m, 3m, 4m, 5m, 6m, 8m |
Applications / Usage Scenarios
-
Home Cinema & Gaming: Perfect for PS5, Xbox Series X, RTX 4090/3090 GPUs, 8K OLED TVs, and high-end projectors.
-

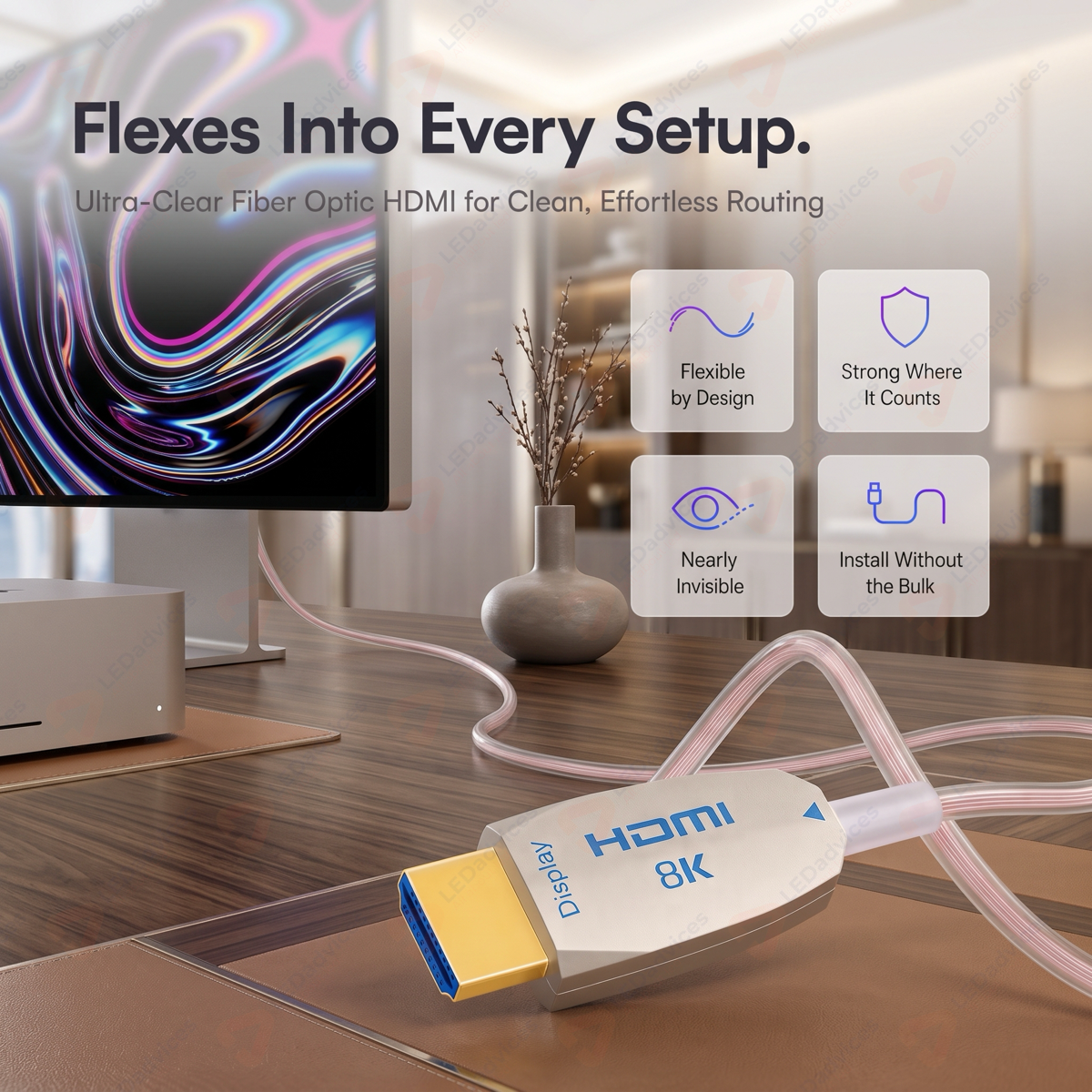

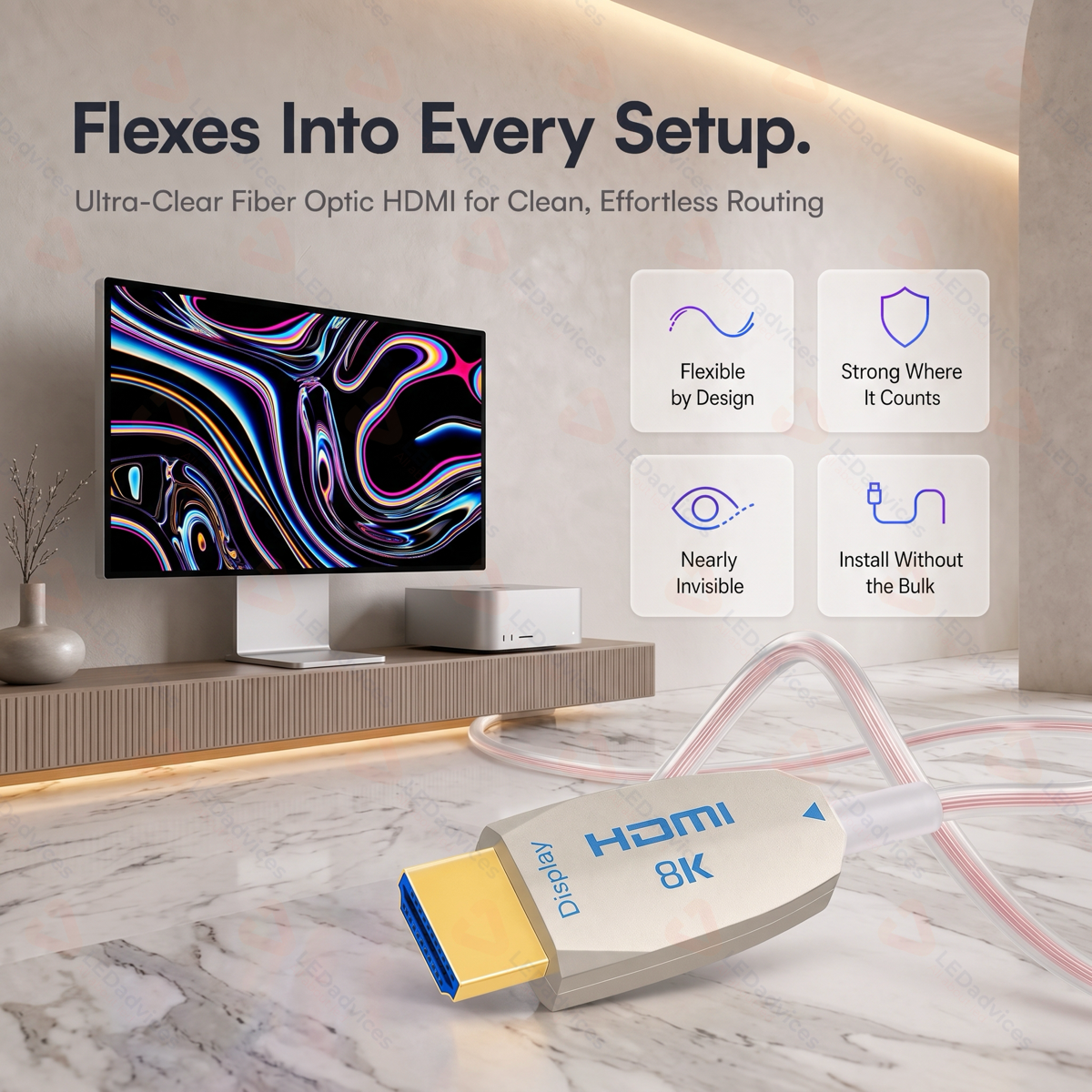

Discreet Interior Wiring: Ideal for wall-mounted displays and minimalist desk setups where invisible cables maintain clean aesthetics.
-
Commercial & Pro A/V: Video conference rooms, medical imaging equipment, live streaming setups, and digital signage.

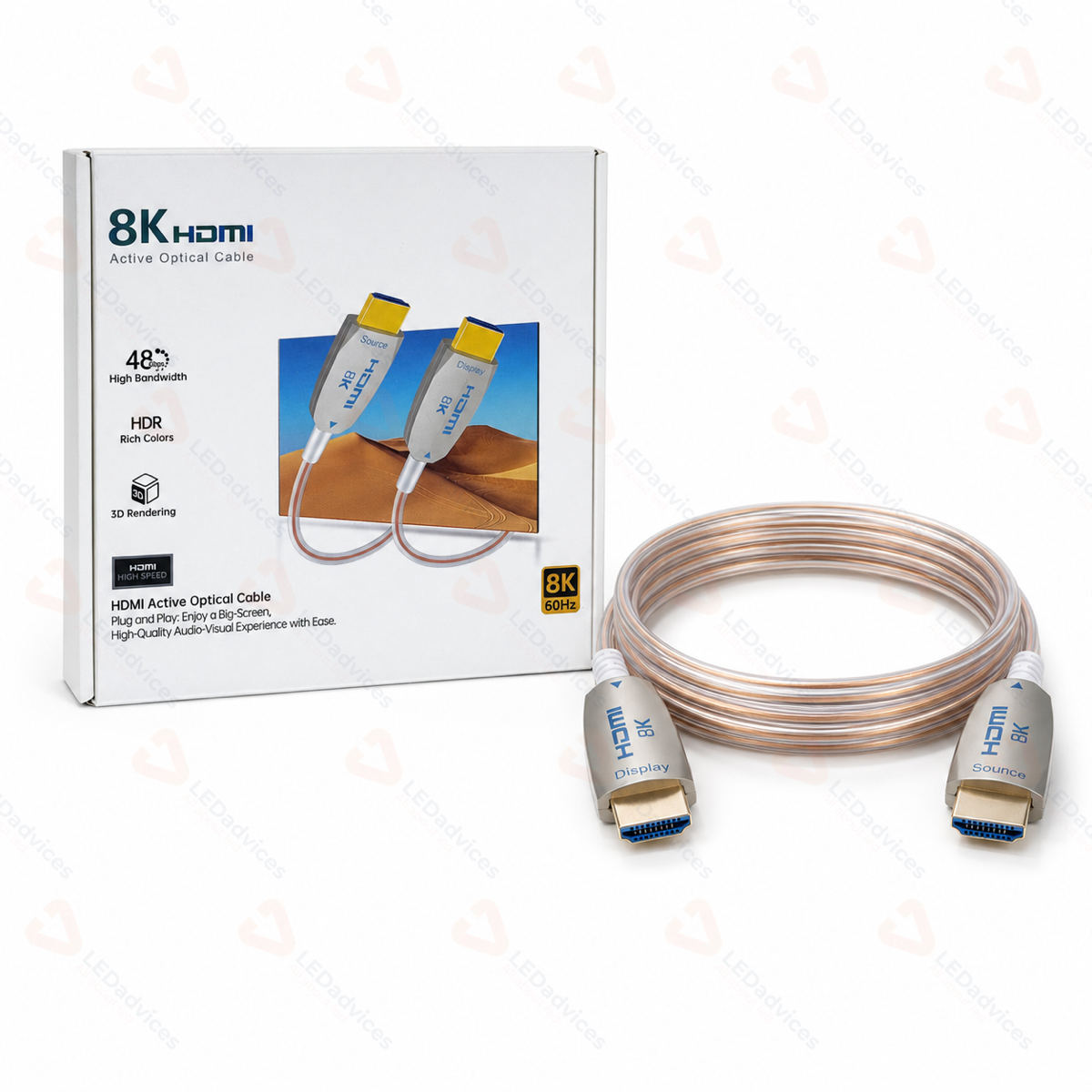

What's in the Box
Important Note for Installation: This is a directional cable. Please connect the end labeled "Source" to your PC, Blu-ray, or Gaming Console, and the end labeled "Display" to your TV, Monitor, or Projector.
