Professional 4K HDMI 2.0 playback, remote publishing and versatile connectivity for LCD and LED displays.
Product Description
Professional 4K signage playback

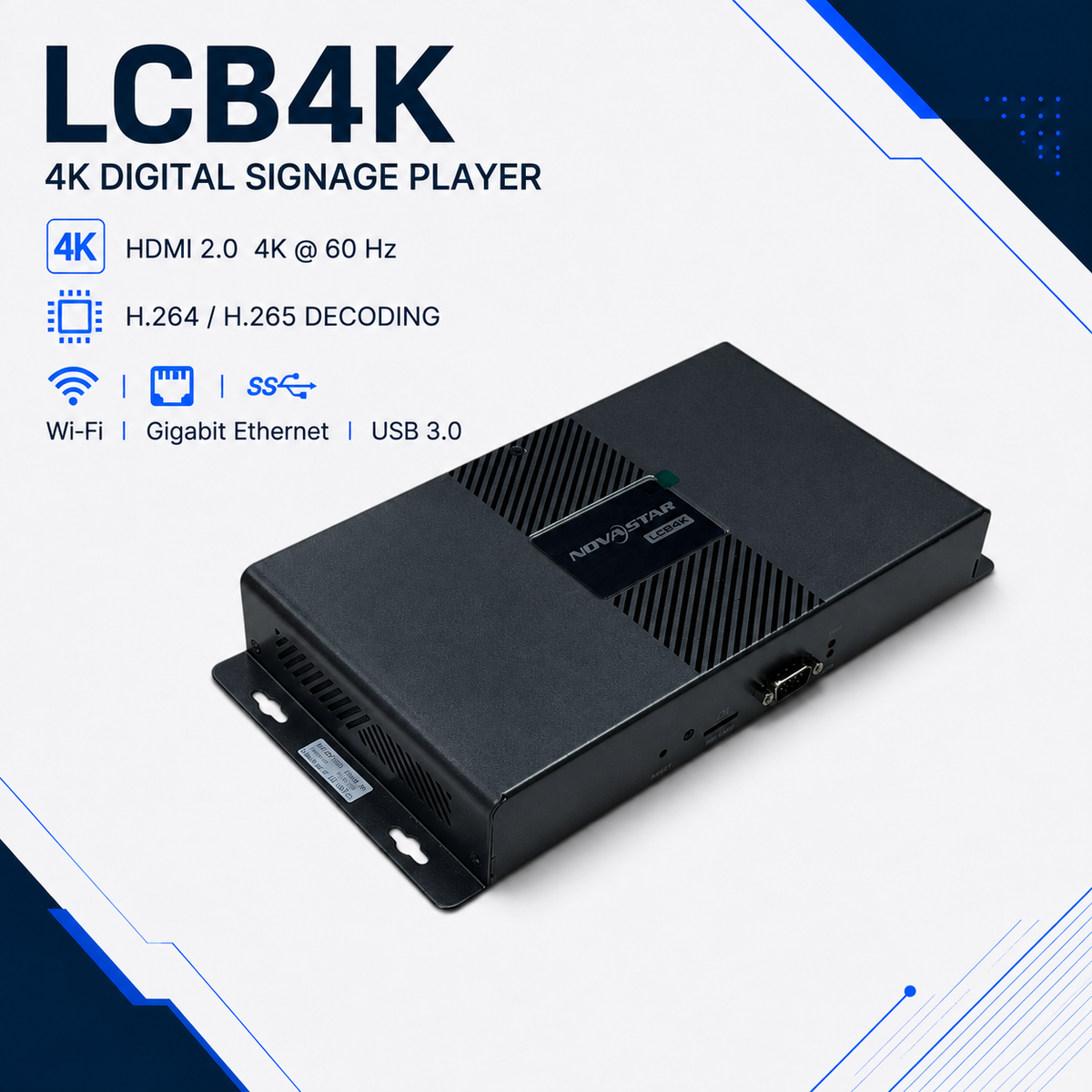

The NovaStar LCB4K is a high-performance multimedia player for commercial LCD and LED displays. Its quad-core ARM A55 processor supports H.264 and H.265 video decoding at up to 4K60, while HDMI 2.0 delivers 3840 × 2160 output at up to 60 Hz.
Flexible output for landscape and portrait displays
Adaptive mode automatically reads the connected display's EDID and selects a compatible playback resolution. Custom mode gives integrators greater control over non-standard signage layouts, including portrait-oriented output within the supported resolution ranges.
Centralized content publishing and screen control
Use a compatible computer, smartphone or tablet to publish content and control displays. Gigabit Ethernet supports fast wired networking, while 2.4 GHz Wi-Fi operates in either AP or STA mode. Remote publishing and monitoring make the LCB4K a practical choice for retail networks, corporate communications, hospitality, transportation and public-information displays.
Designed for synchronized display networks
The player supports synchronized playback across multiple screens using NTP. GPS and RF synchronization are available with specified optional hardware, and compatible NovaStar 4G/5G modules can be added for selected deployments.

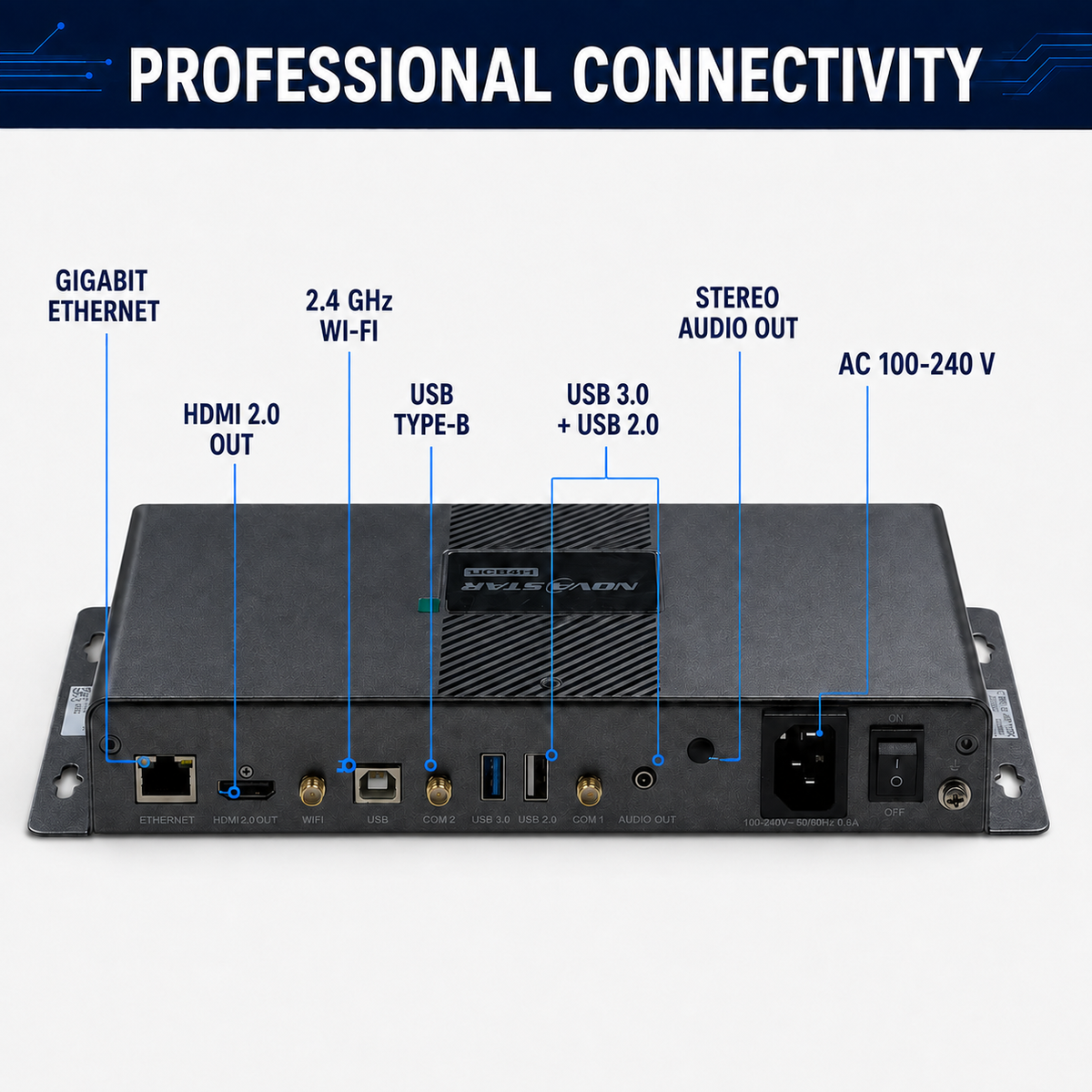

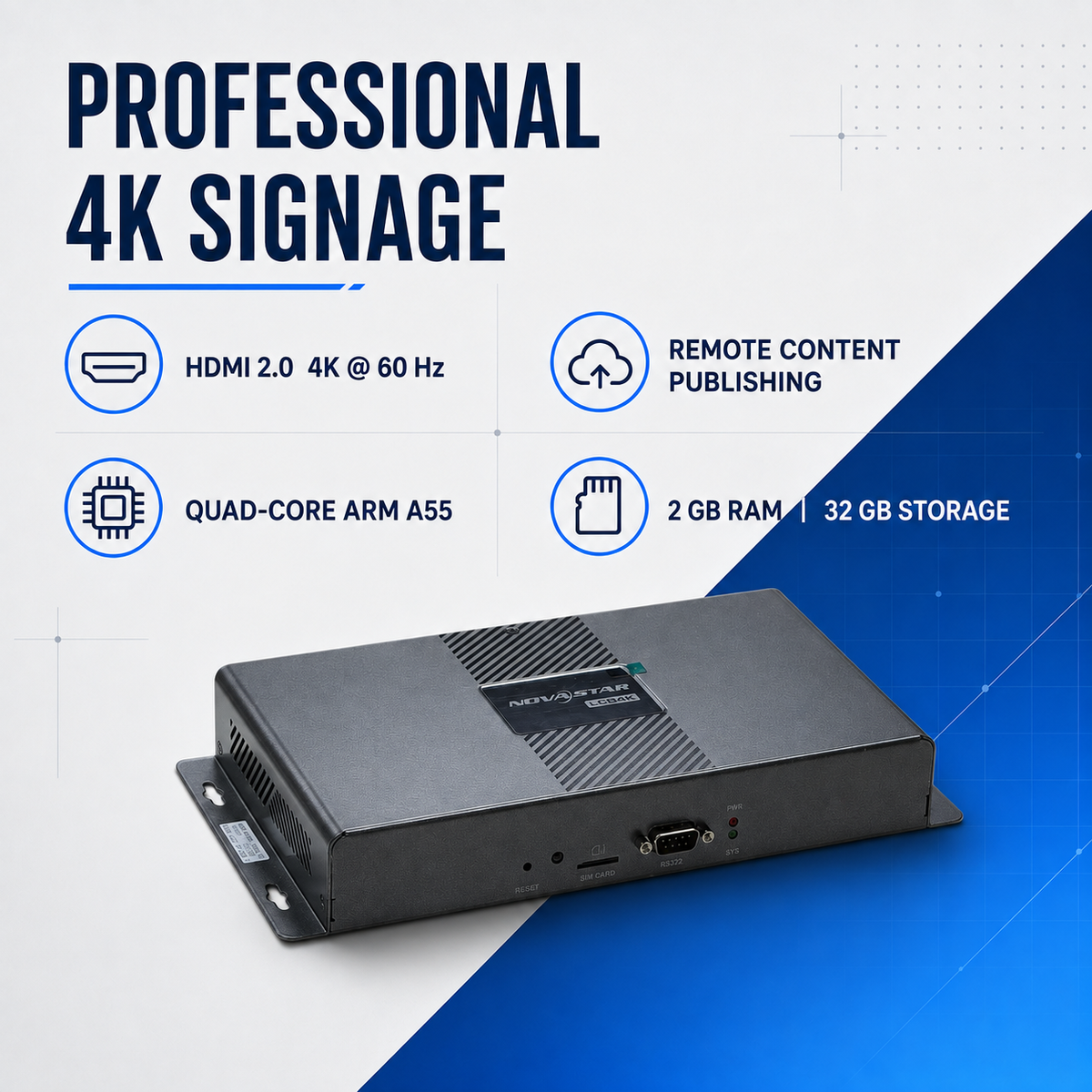

Key Features
· Quad-core ARM A55 processor at 1.8 GHz
· 2 GB RAM and 32 GB internal storage
· H.264/H.265 4K@60Hz decoding
· HDMI 2.0 output up to 3840 × 2160 at 60 Hz
· Adaptive EDID and custom-resolution output modes
· Gigabit Ethernet and 2.4 GHz Wi-Fi AP/STA
· USB 3.0 and USB 2.0 Type-A ports for playback, updates and storage
· USB Type-B connection for publishing and screen control
· Stereo audio output
· Android 11.0 system with NovaStar terminal software
Technical Specifications
|
Specification
|
Details
|
|
Processor
|
Quad-core ARM A55, 1.8 GHz
|
|
Memory
|
2 GB RAM
|
|
Storage
|
32 GB internal
|
|
Video decoding
|
H.264/H.265 up to 4K at 60 Hz
|
|
Video output
|
1 × HDMI 2.0
|
|
Maximum standard output
|
3840 × 2160 at 60 Hz
|
|
Output modes
|
Adaptive EDID and custom resolution
|
|
Audio
|
Stereo output, 48 kHz
|
|
Network
|
Gigabit Ethernet, 2.4 GHz Wi-Fi AP/STA, optional 4G/5G
|
|
Data/control
|
USB 3.0 Type-A, USB 2.0 Type-A, USB Type-B
|
|
USB file systems
|
Ext4 and FAT32; FAT32 individual-file limit is 4 GB
|
|
Time synchronization
|
NTP; optional GPS/RF
|
|
System
|
Android 11.0 with NovaStar terminal application; no third-party app support
|
|
Power
|
100–240 V AC, 50/60 Hz, 0.6 A; 15 W maximum
|
|
Protection rating
|
IP20, indoor/dry-location use
|
|
Operating environment
|
−20°C to +60°C; 0%–80% RH, non-condensing
|
|
Dimensions
|
274.3 × 139.0 × 40.0 mm
|
|
Net weight
|
1.1 kg
|

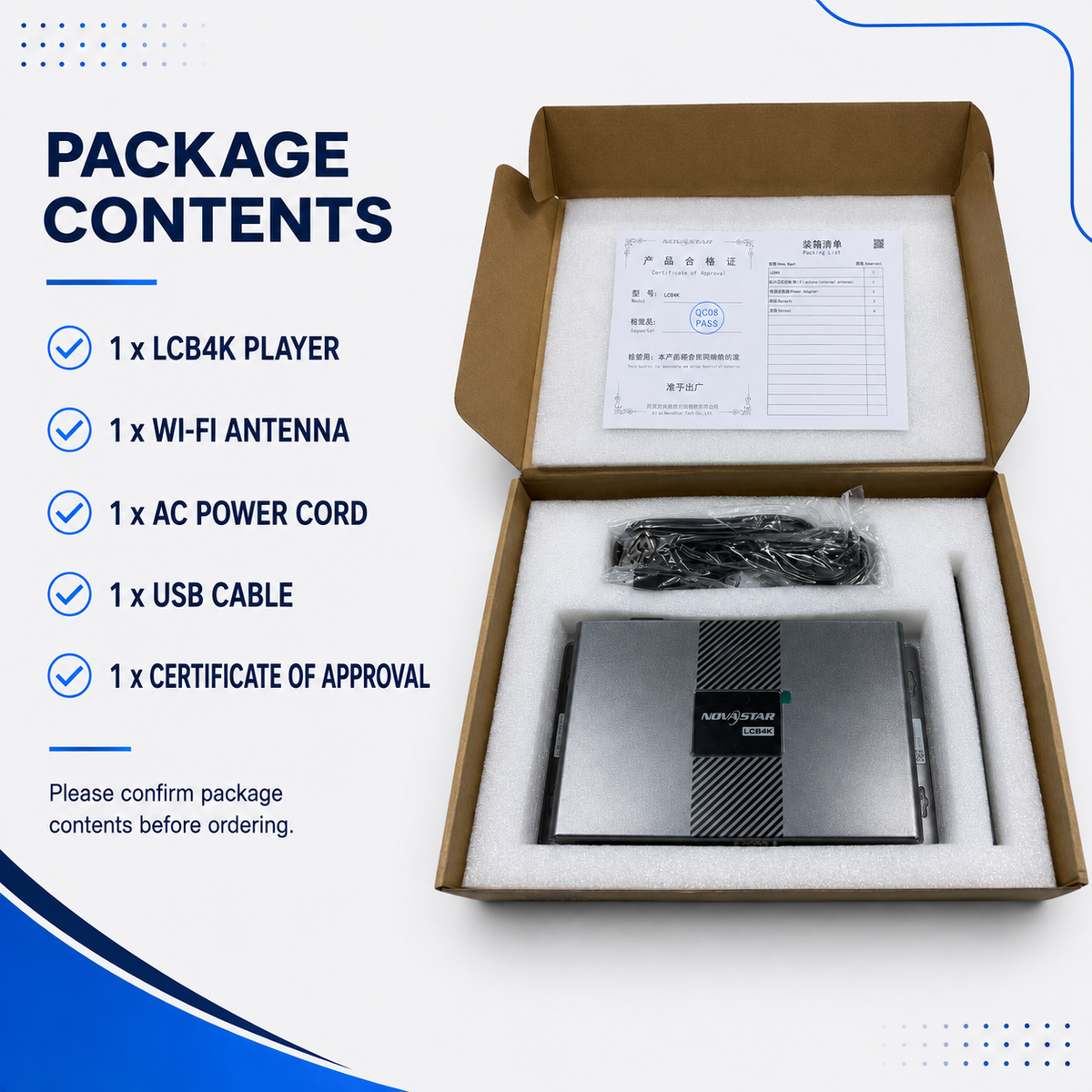

What's Included
LCB4K player, omnidirectional Wi-Fi antenna, AC power cord, USB cable and Certificate of Approval.
Important Compatibility Note
Optional 4G/5G, GPS and RF hardware is sold separately. NovaStar states that 5G network access for this model is currently limited to China. The LCB4K is IP20 rated and must be installed indoors in a dry environment. Third-party Android applications are not supported. Please contact us to confirm cellular bands, power-cord type or regional certification requirements before ordering.
