4K media decoding, Full HD HDMI output and flexible remote content management in a compact enclosure.
Product Description
Reliable playback for everyday digital signage

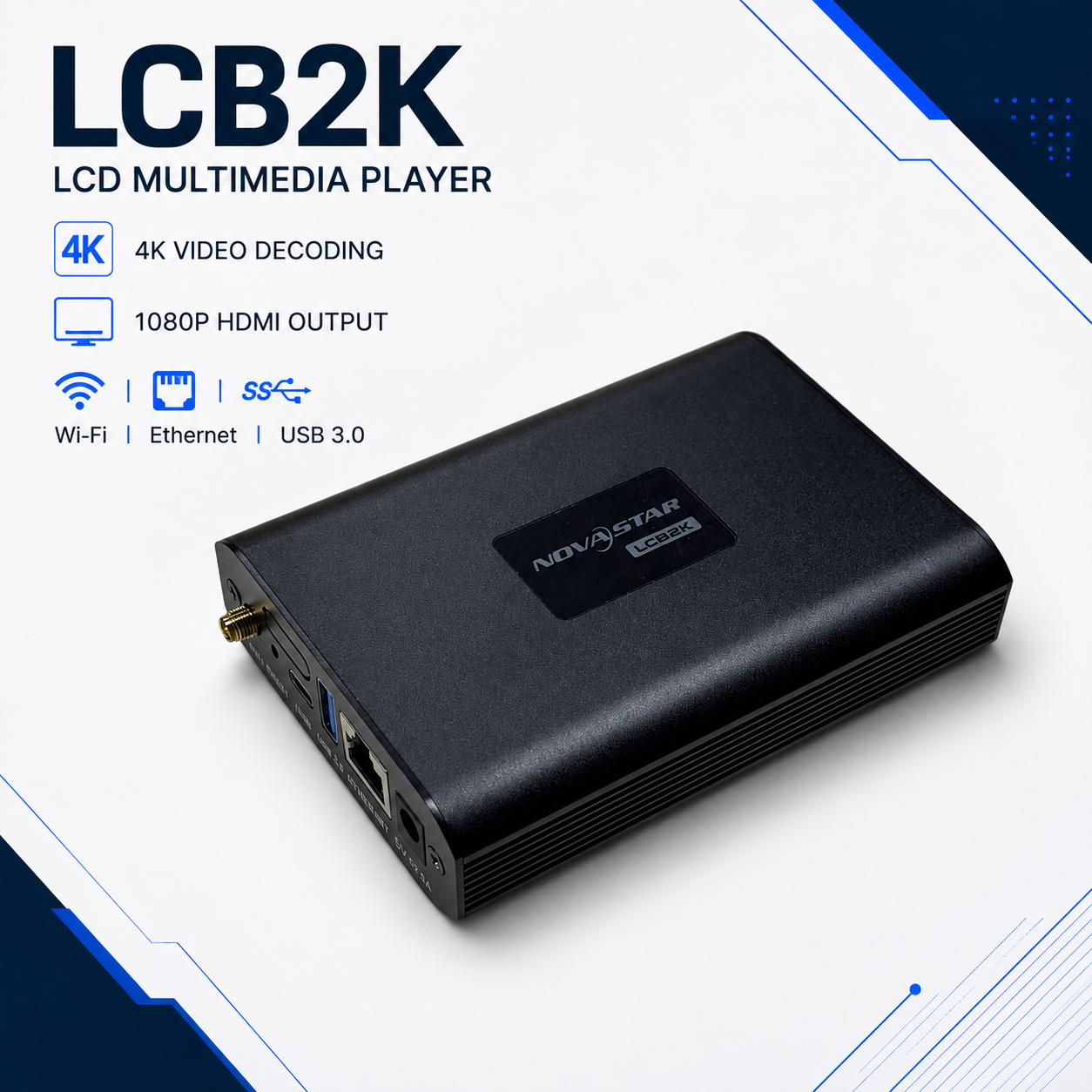

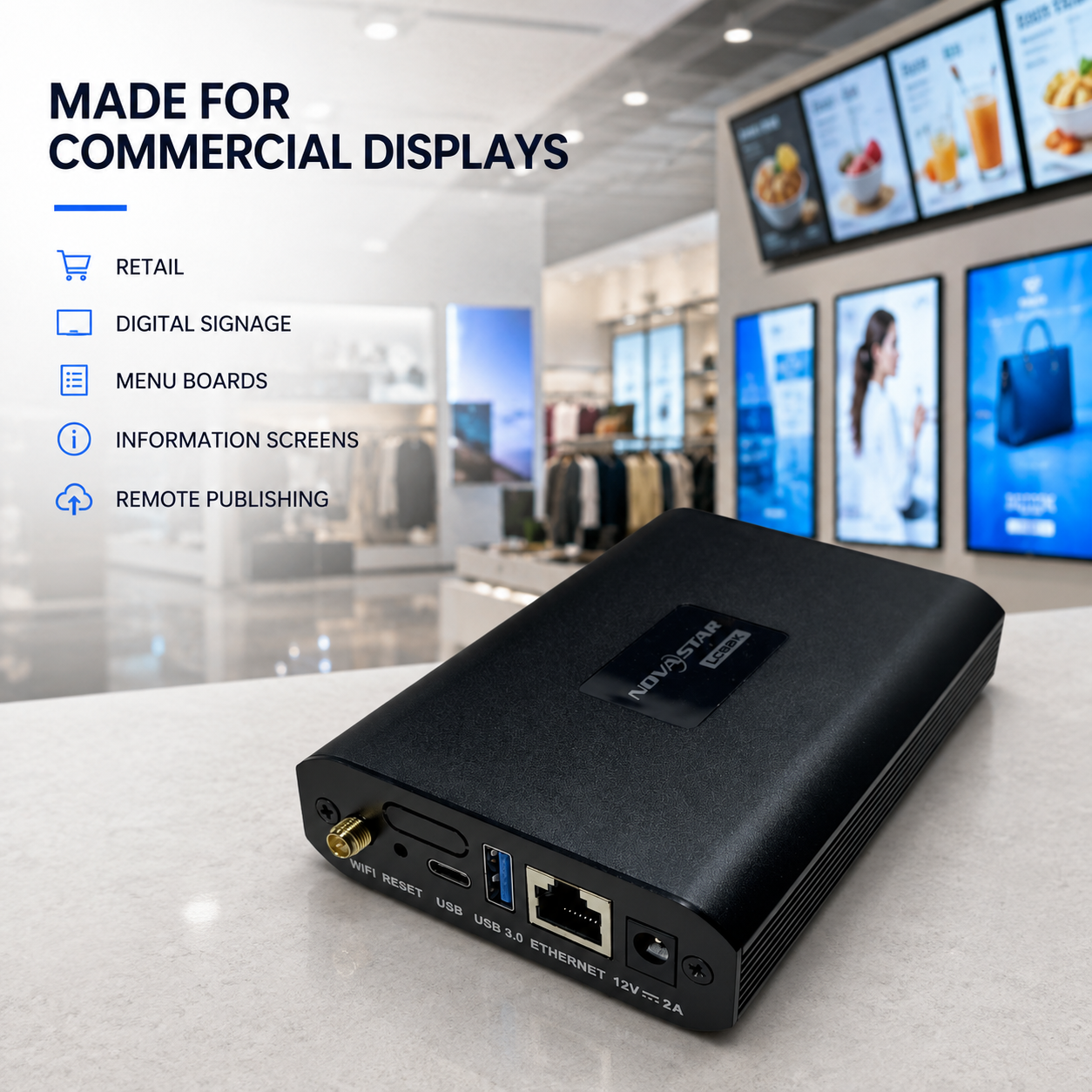

The NovaStar LCB2K is a compact multimedia player built for LCD advertising screens, menu boards, information displays and other commercial signage. It decodes H.264 and H.265/HEVC media up to 4K while delivering Full HD output through HDMI at up to 1920 × 1080 at 60 Hz.
Publish and manage content from almost anywhere
Create a flexible signage network using Fast Ethernet or built-in 2.4 GHz Wi-Fi. The LCB2K supports Wi-Fi AP and STA modes, allowing direct local connection or access through a router. Content publishing and screen control are available from compatible computers, smartphones and tablets, while remote monitoring helps simplify multi-location operation.
Smooth multi-zone playback
The LCB2K can play one 4K video, two 1080p videos, four 720p videos, four 480p videos or six 360p videos within its decoding capacity. This makes it well suited to layouts that combine video, images and other signage content.
Synchronize multiple screens
NTP time synchronization is supported as standard. GPS and RF synchronization are available when the specified optional hardware is installed. An optional NovaStar 4G module can also be added for compatible cellular deployments.

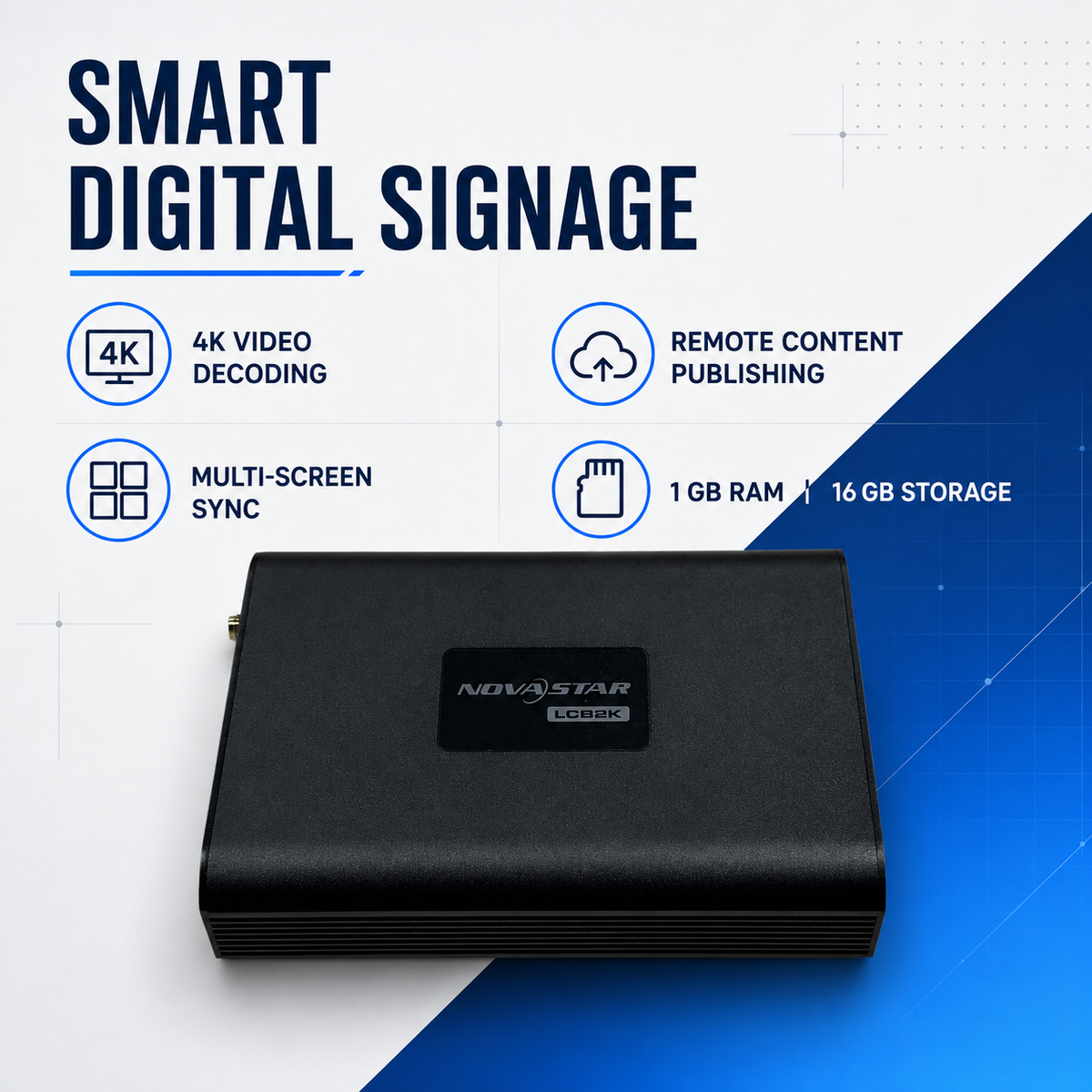

Key Features
- Quad-core 1.3 GHz processor
- 1 GB RAM and 16 GB internal storage
-
H.264/H.265 4K media decoding
-
HDMI output up to 1920 × 1080 at 60 Hz
- Automatic EDID-based output adjustment

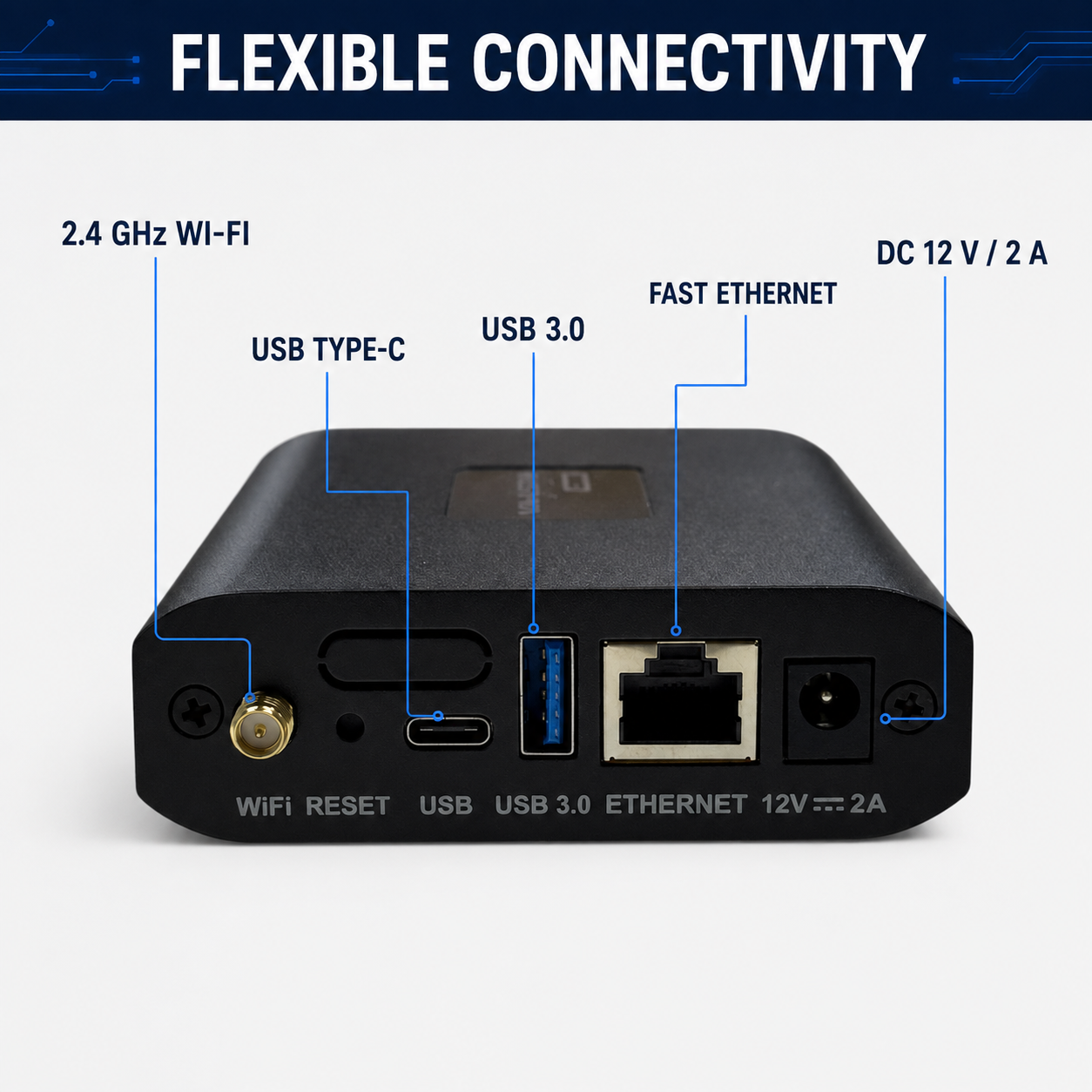

- Fast Ethernet and 2.4 GHz Wi-Fi AP/STA
- USB 3.0 Type-A for playback, firmware updates and storage expansion
- USB Type-C for connection to a control computer
- 3.5 mm stereo audio output
- Compact, easy-to-integrate metal enclosure
Technical Specifications
|
Specification
|
Details
|
|
Processor
|
Quad-core, 1.3 GHz
|
|
Memory
|
1 GB RAM
|
|
Storage
|
16 GB internal
|
|
Maximum source decoding
|
3840 × 2160, H.264/H.265
|
|
Maximum video output
|
1920 × 1080 at 60 Hz
|
|

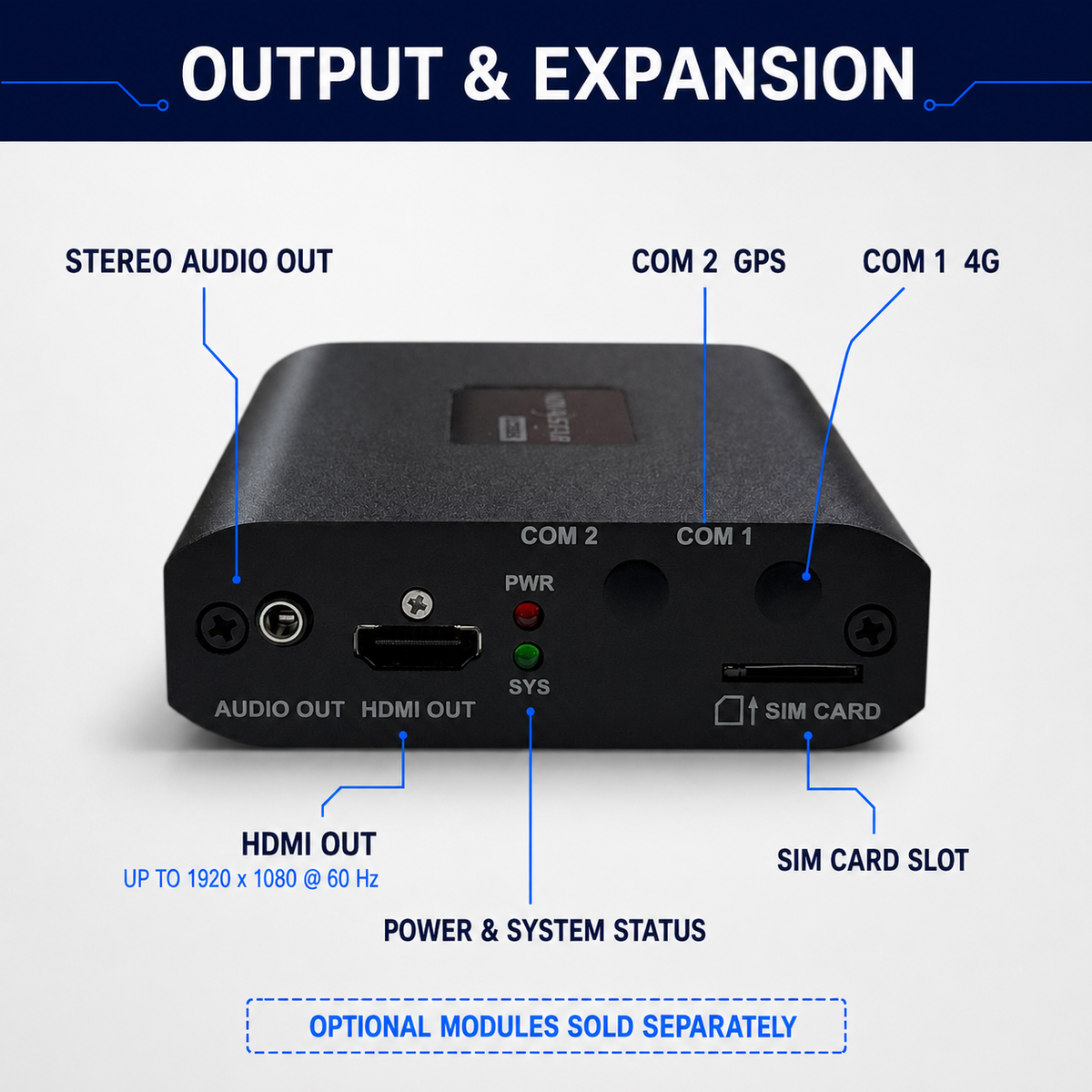

Video output
|
1 × HDMI, adaptive EDID mode
|
|
Audio
|
1 × 3.5 mm stereo output, 48 kHz
|
|
Network
|
Fast Ethernet, 2.4 GHz Wi-Fi AP/STA, optional 4G
|
|
Data/control
|
USB 3.0 Type-A, USB Type-C
|
|
USB storage
|
FAT32/NTFS, 2 GB–128 GB; individual files under 4 GB
|
|
Time synchronization
|
NTP; optional GPS/RF
|
|
Power
|
DC 12 V, 2 A; 18 W maximum
|
|
Operating environment
|
−20°C to +60°C; 0%–80% RH, non-condensing
|
|
Dimensions
|
123.0 × 89.0 × 29.5 mm
|
|
Net weight
|
255.4 g
|

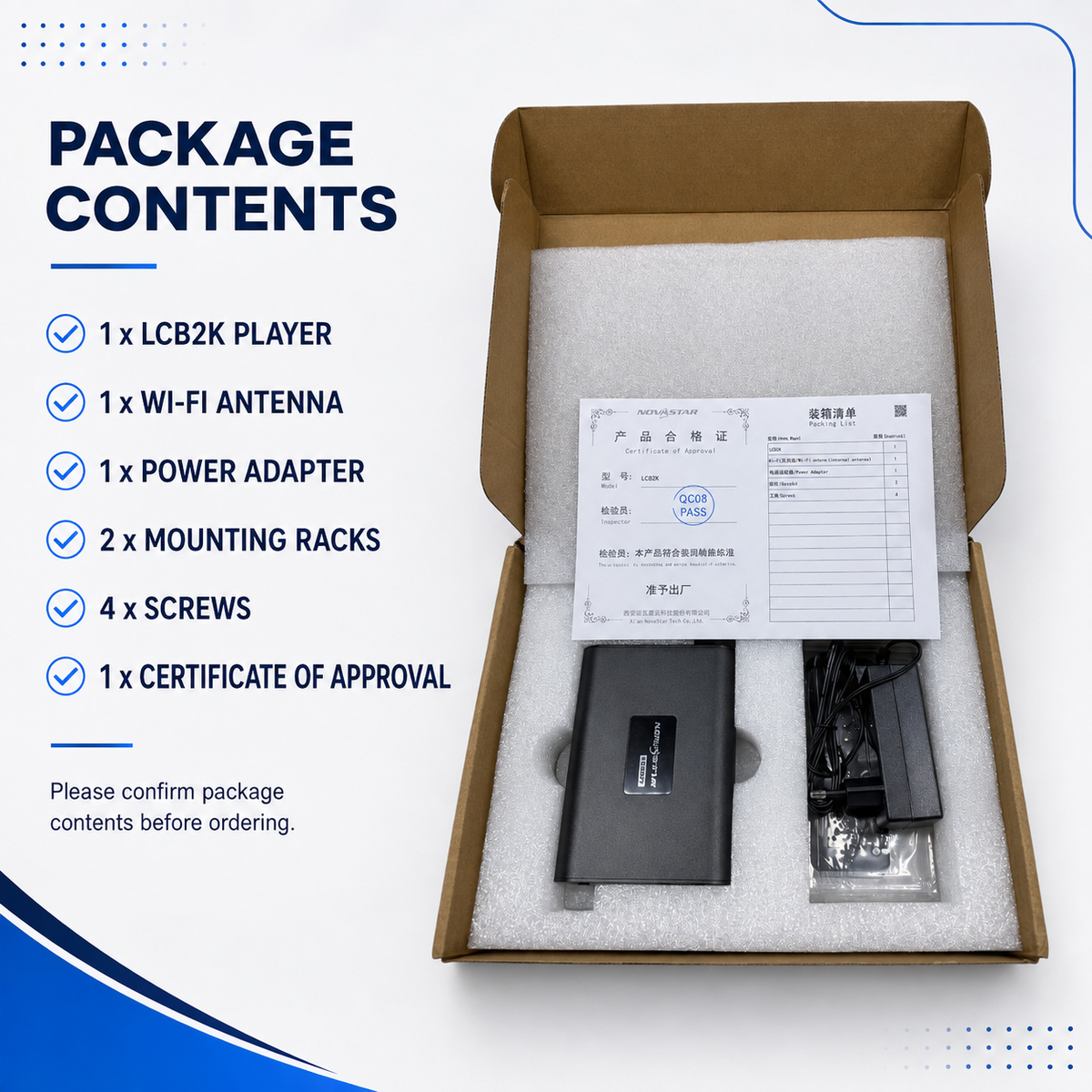

What's Included
LCB2K player, omnidirectional Wi-Fi antenna, power adapter, two mounting racks, four screws and Certificate of Approval.
Important Compatibility Note
The LCB2K decodes supported source video up to 4K, but its HDMI output is limited to 1920 × 1080 at 60 Hz. Optional 4G, GPS and RF hardware is sold separately. Please contact us if you need help checking display, network or regional certification compatibility.
