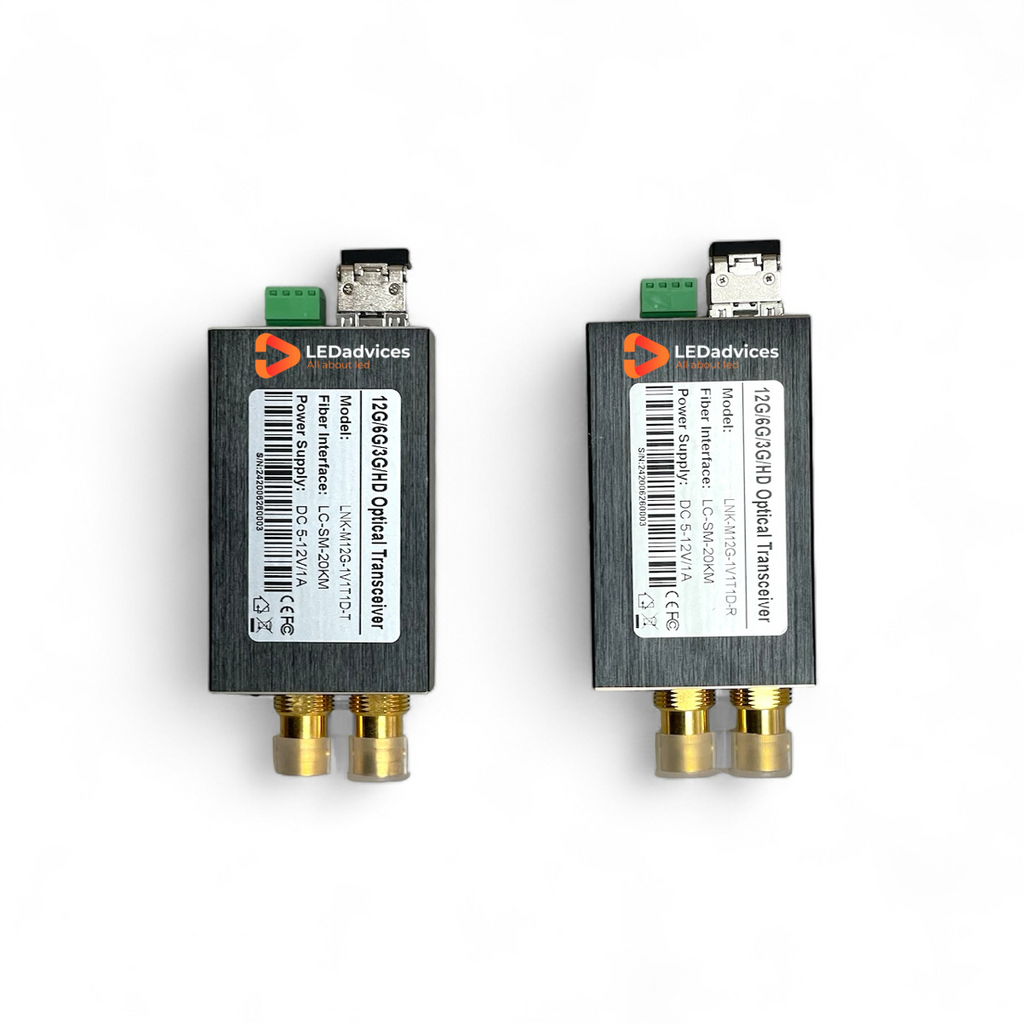

Product Introduction: Mini-type 12G-SDI Fiber Converter
The Mini-type 12G-SDI Fiber Converter is a cutting-edge solution designed to support the transmission of 1-channel 12G video (with embedded audio) and backward RS485 signals via fiber optical cable. It also enables local signal monitoring through a 12G loop output. This system includes both a transmitter and a receiver, ensuring seamless HDTV 4K2K (38402160@60Hz), 1080P, 1080I, and 720P video transmission.
Product Features:
•12G-SDI Video & Tally over Fiber: Supports 1-channel 12G-SDI video and backward RS485 transmission over optical fiber.
•Embedded Audio: Each SDI channel includes 8-channel audio embedded, providing high-quality sound.
•Versatile Connectivity: SDI input, LC fiber output, and SDI loop output ensure flexible connectivity options.
•Signal Integrity: Automatic cable equalization maintains signal integrity across distances.
•Standard Compliance: Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD) standards.
•DVB-ASI and AES10 Compatibility: Fully compatible with DVB-ASI and AES10 (MADI) standards.
•Integrated Reclocker: Locks to SMPTE rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps.
•Camera System Compatibility: Directly compatible with 12G/6G/3G-SDI camera systems.
•Industrial Power Input: Terminal block power input suitable for industrial applications.
•Hot Swapping and Plugging: Supports hot swapping and hot plugging for convenient maintenance.
•Digital Non-Compression: Provides full digital non-compression broadcast level transmission.
•Optic Dynamic Range: Superior optic dynamic range with no need for adjustments prior to use.
•Fiber Optic Techniques: Utilizes fiber optic WDM/CWDM/DWDM techniques for efficient data transmission.
•High Definition Support: Supports HDTV resolutions including 4K2K (38402160@60Hz), 1080P, 1080I, and 720P.
•Ultra-Broad Temperature Range: Designed to operate in extreme temperatures ranging from -40℃ to +85℃.
Package Contents:
•12G SDI Video Fiber Optic Transmitter x1
•12G SDI Video Fiber Optic Receiver x1
•SFP Modules x2 (default: single-mode, single-fiber, 20km range unless otherwise specified)
•Power Supplies x2
•12G SDI Fiber Converter User Manual x1
