Product Description

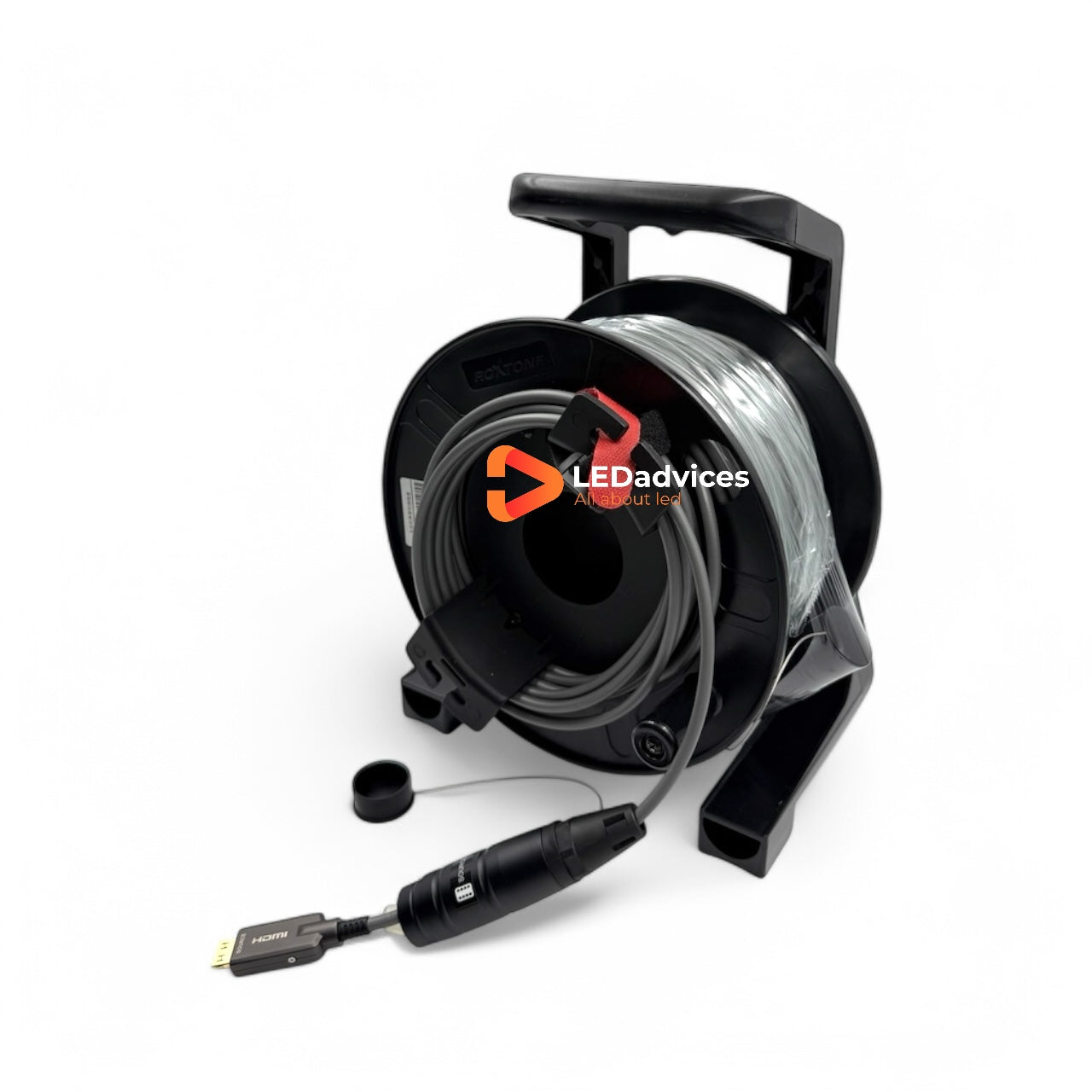

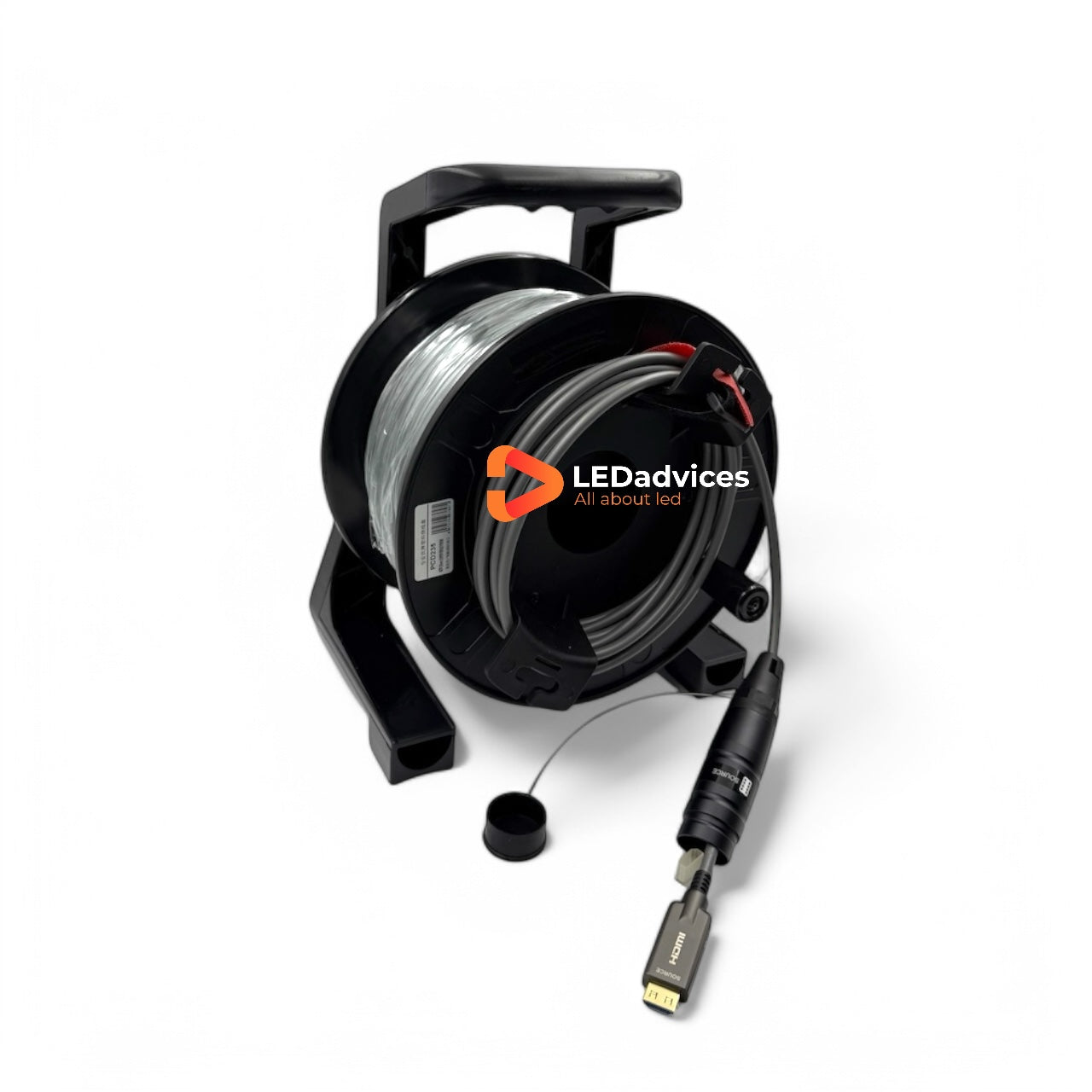

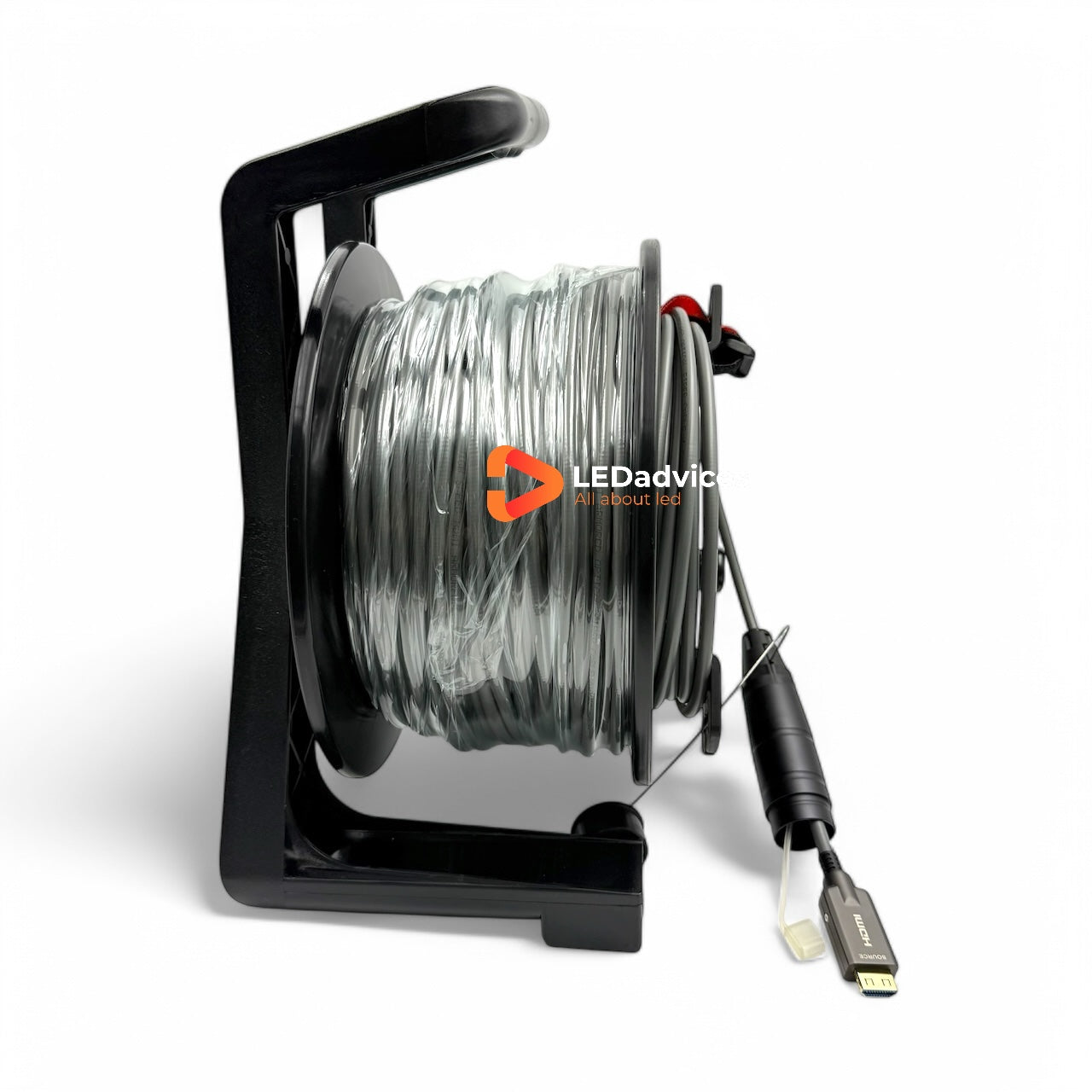

Experience professional-grade 8K video transmission with the K-LOCK HDMI 2.1 Active Optical Cable – engineered for extreme performance and long-distance reliability.
Equipped with 4-core 10G optical fibers and protected by a rugged 304 stainless steel spiral armor, this cable delivers crystal-clear 8K@60Hz video up to 150 meters without any signal loss. The internal Kevlar reinforcement and TPU outer jacket make it flexible yet highly durable, even in harsh environments.
This is a truly plug-and-play solution. With low power consumption (max 250mW) and no external power adapter needed, installation is quick and clean. The integrated Silicon chipset from Germany ensures ultra-low latency, full HDR compatibility, and smooth EDID/HDCP communication with any HDMI 2.1 device.
-
✅ True 8K Resolution – Supports up to 7680x4320@60Hz
-
✅ 48Gbps Ultra High Speed – For seamless HDR, 3D, eARC, Dolby Vision
-
✅ Armored Protection – Stainless steel 304 spiral armor + Kevlar + TPU
-
✅ 4-Core 10G Optical Fiber – Long-distance, interference-free transmission up to 150 meters
-
✅ Low Power & Plug-and-Play – No external power, 250mW max
-
✅ Silicon Chipset – Ultra-reliable, premium quality made in Germany
-
✅ Fully supports HDCP2.3, bi-directional EDID, and HDMI CEC
| Specification |
Detail |
| Model |
K-LOCK HDMI 2.1 AOC |
| Resolution |
Up to 8K @ 60Hz (7680×4320) |
| Bandwidth |
48Gbps total (12Gbps per channel) |
| Transmission Length |
Up to 150m |
| Fiber Core |
4-core 10G optical fiber |
| Armor Structure |
Stainless steel 304 spiral armor |
| Reinforcement |
Kevlar fiber + TPU outer jacket |
| Chipset |
Silicon (Germany) |
| Power Consumption |
≤ 250mW (no external power required) |
| HDMI Features |
HDCP 2.3, EDID, eARC, CEC, HDR10, Dolby |

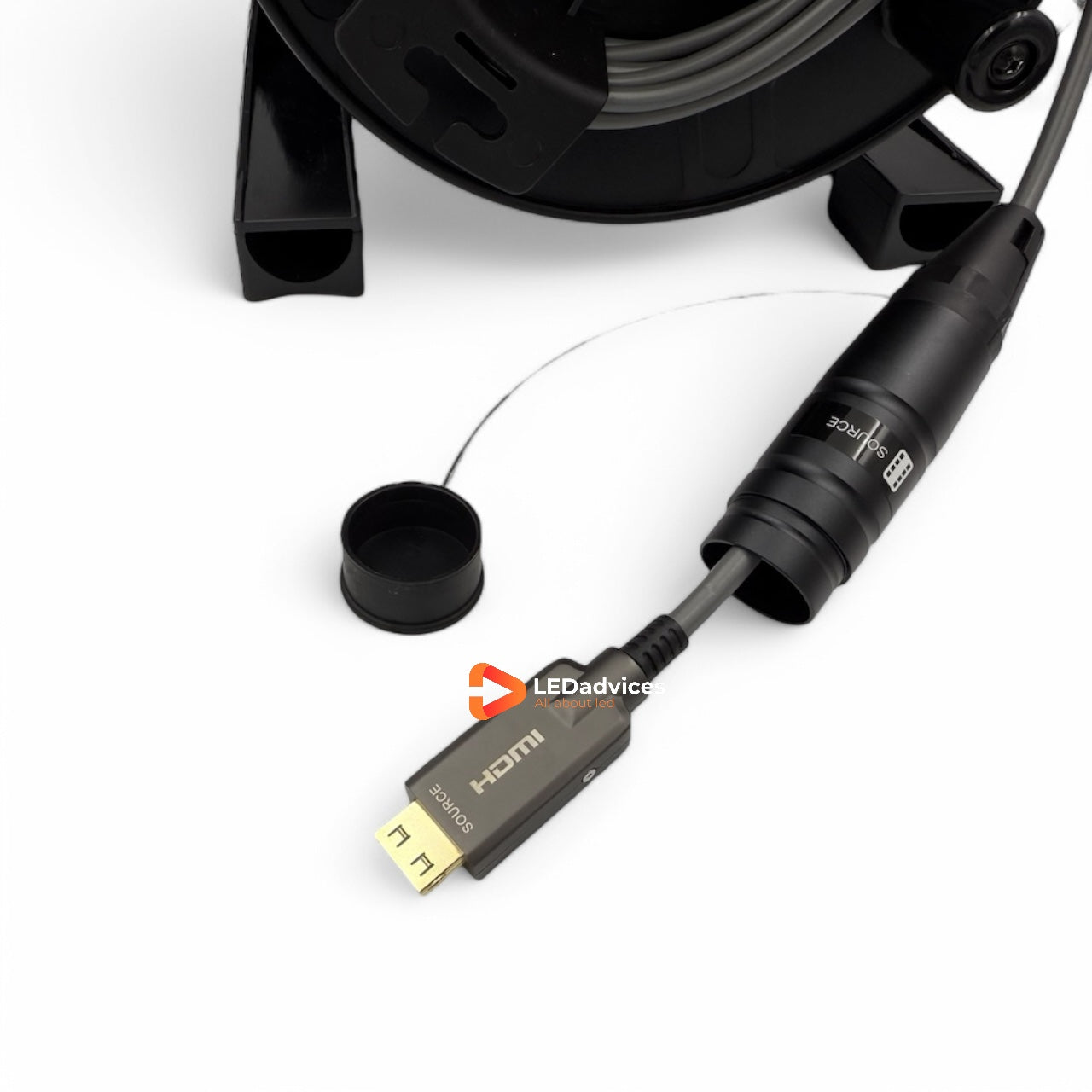

| Plug Type |
HDMI Type-A Male to Male |
| Temperature Range |
-40°C ~ +80°C |
Applications
-
🎬 Home Theater Systems – Perfect for high-end 8K TVs and AV receivers
-

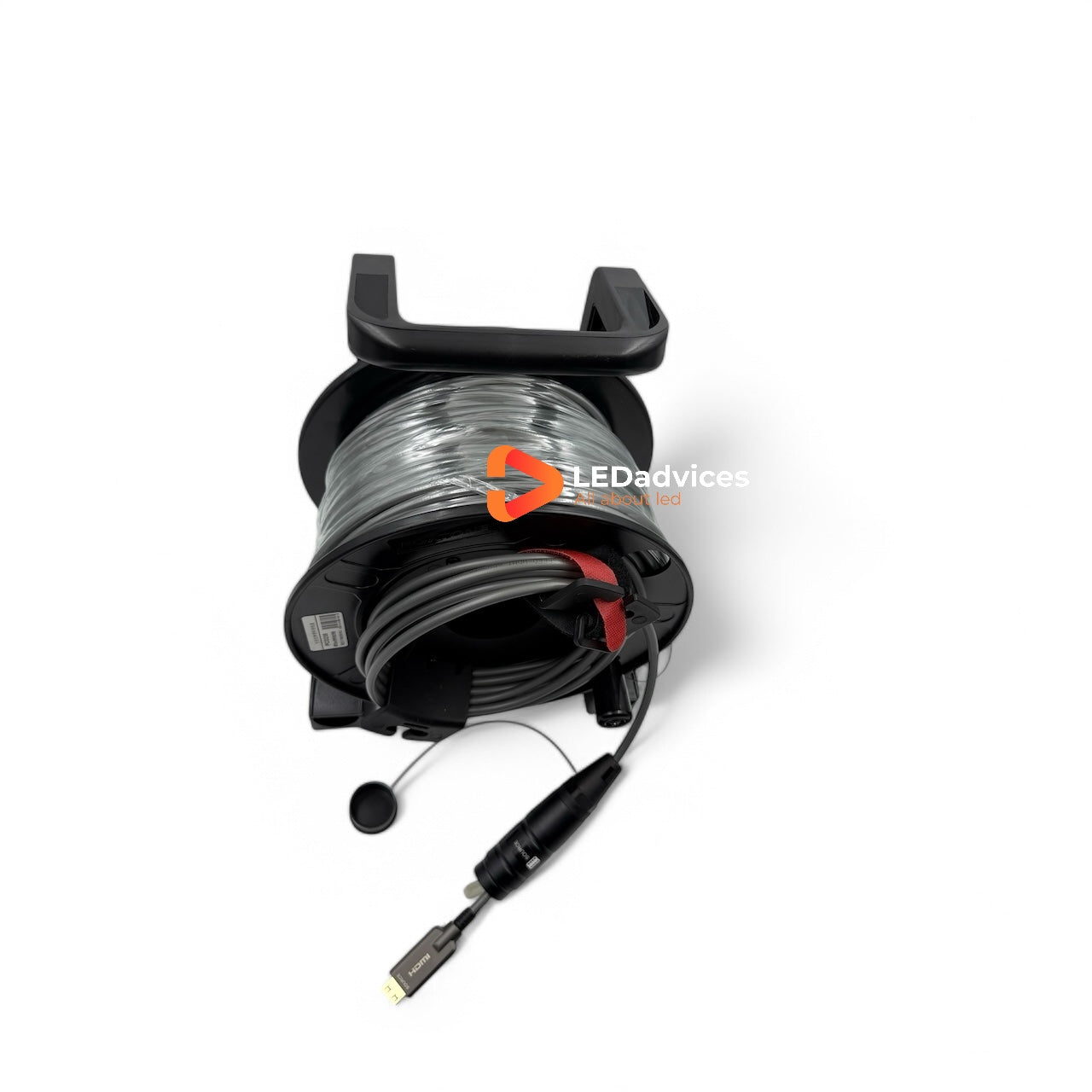

🎤 Stage & Event Rental – Rugged build, long distance, zero-lag transmission
-
🧠 Command & Control Rooms – Flawless real-time visuals for decision-making
-
🧪 Medical Imaging Systems – High-precision 8K video for surgical monitoring
-
📺 Broadcast & Studio – Ultra-reliable for OB vans and media production
-
🏢 Conference & Education – Clean installation, perfect for large venues
-
🖼️ Museums & Exhibitions – Long-distance A/V cabling for 8K displays
