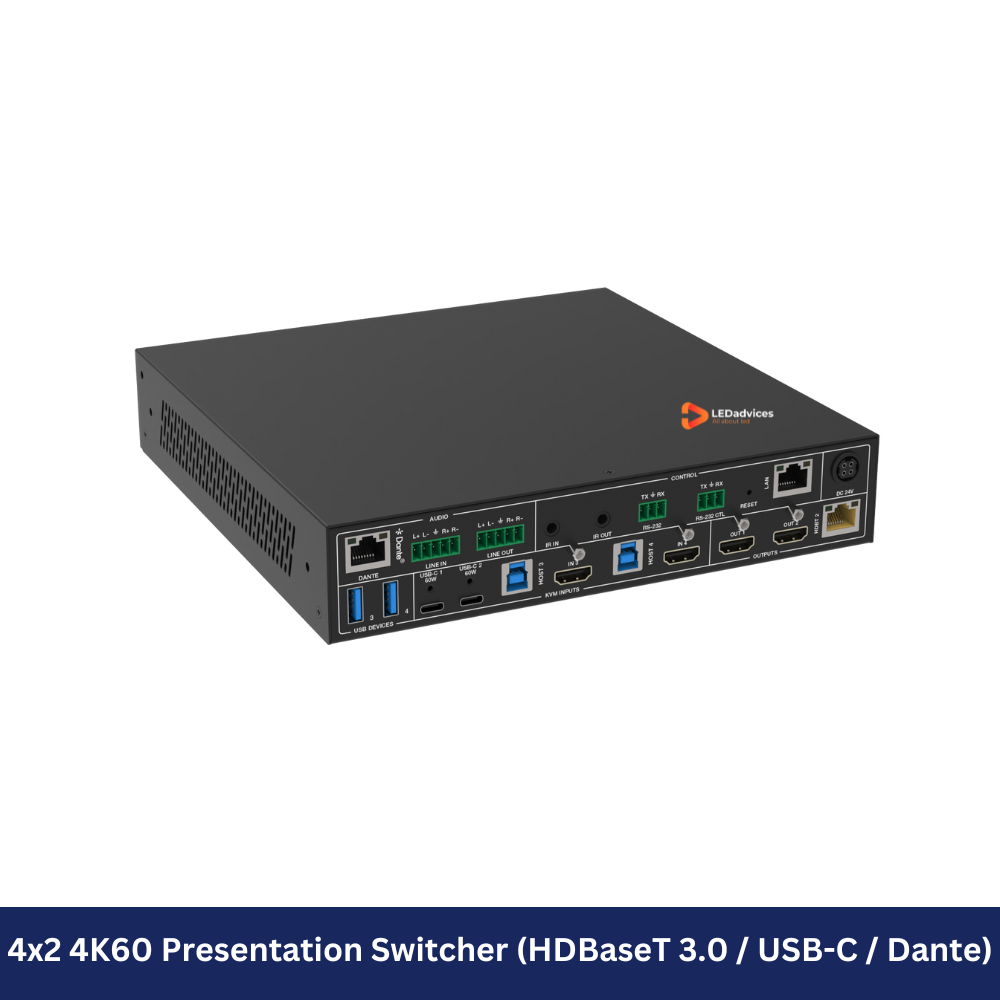

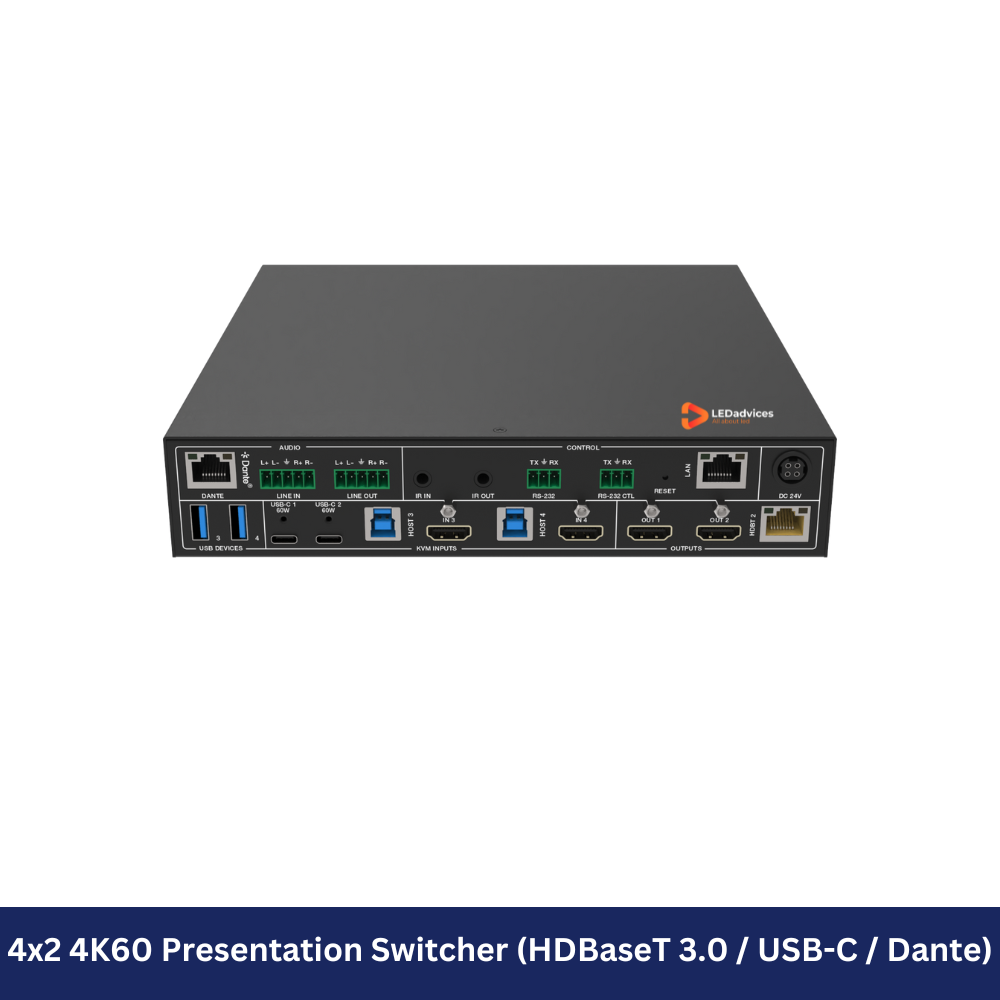

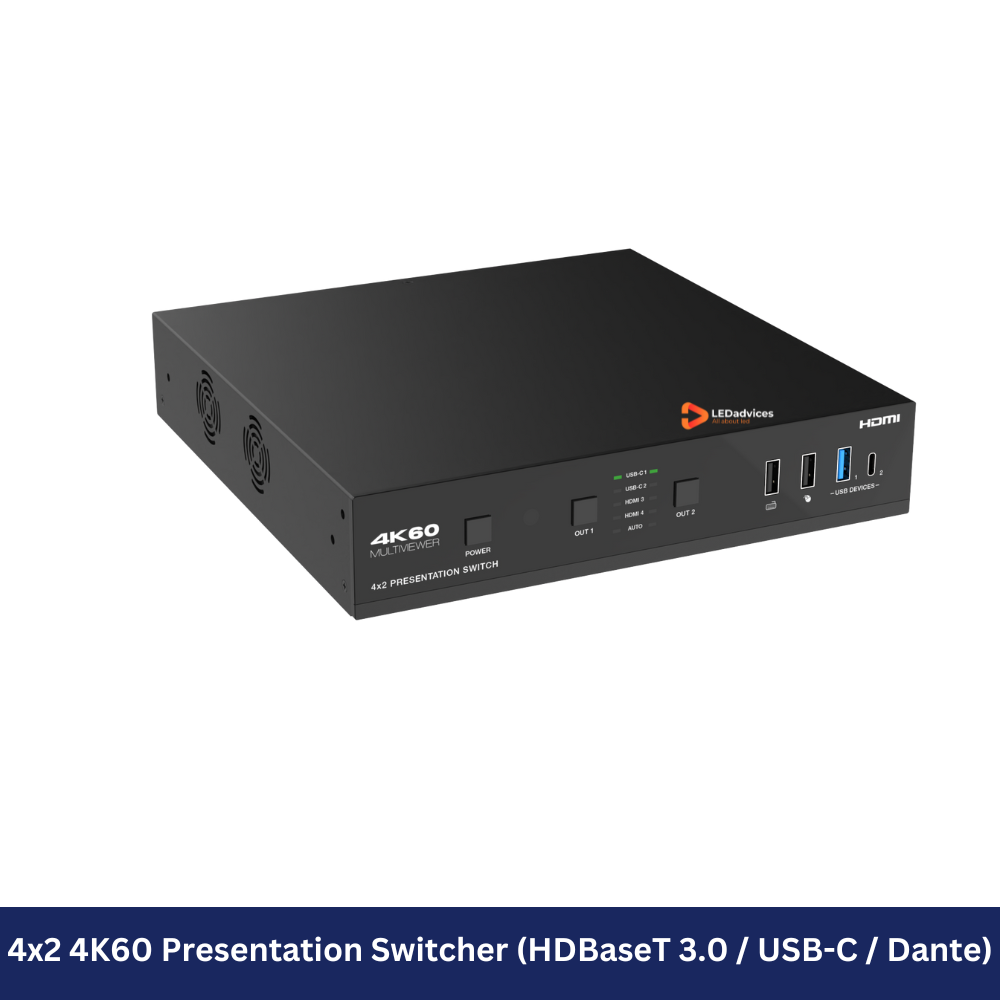

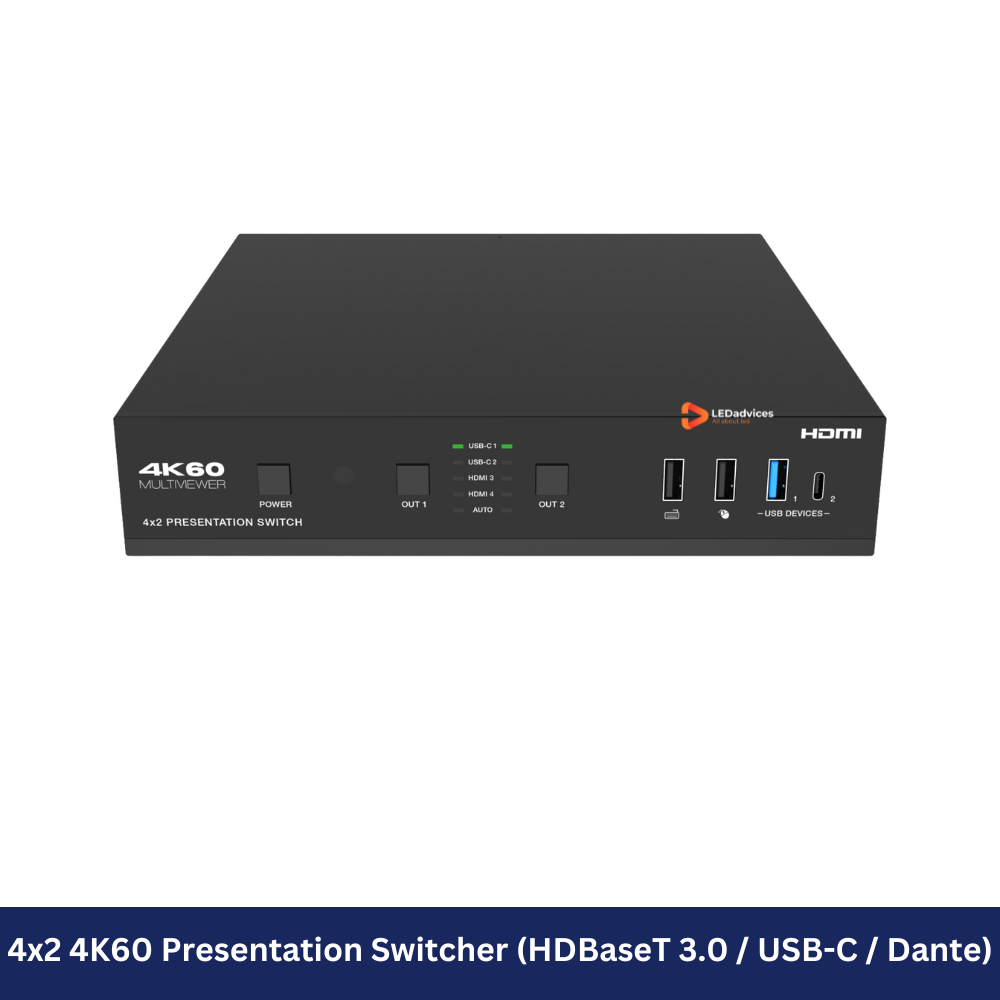

The HDP-PSB42H70 is a high-performance 4x2 presentation switcher designed for professional AV environments that require seamless switching, versatile connectivity, and advanced audio/video processing. Supporting HDMI 2.0b and HDCP 2.2 standards, it delivers crystal-clear video up to 4K@60Hz 4:4:4 and integrates HDBaseT 3.0 with PoE, Dante audio, and USB-C functionality for maximum flexibility.
Key Features:
-
✅ Compliant with HDMI 2.0b and HDCP 2.2
-
✅ Supports video resolutions up to 4K@60Hz RGB / YCbCr 4:4:4
-
✅ HDMI audio passthrough: LPCM, Dolby Digital, Dolby Digital Plus, DTS
-
✅ 4 Inputs: 3x HDMI + 1x USB-C with seamless auto/manual switching
-
✅ USB-C supports ALT-DP mode for AV, USB data, and 60W charging
-
✅ Multi-view display modes: Full Screen / PIP / PAP / Quad-View
-

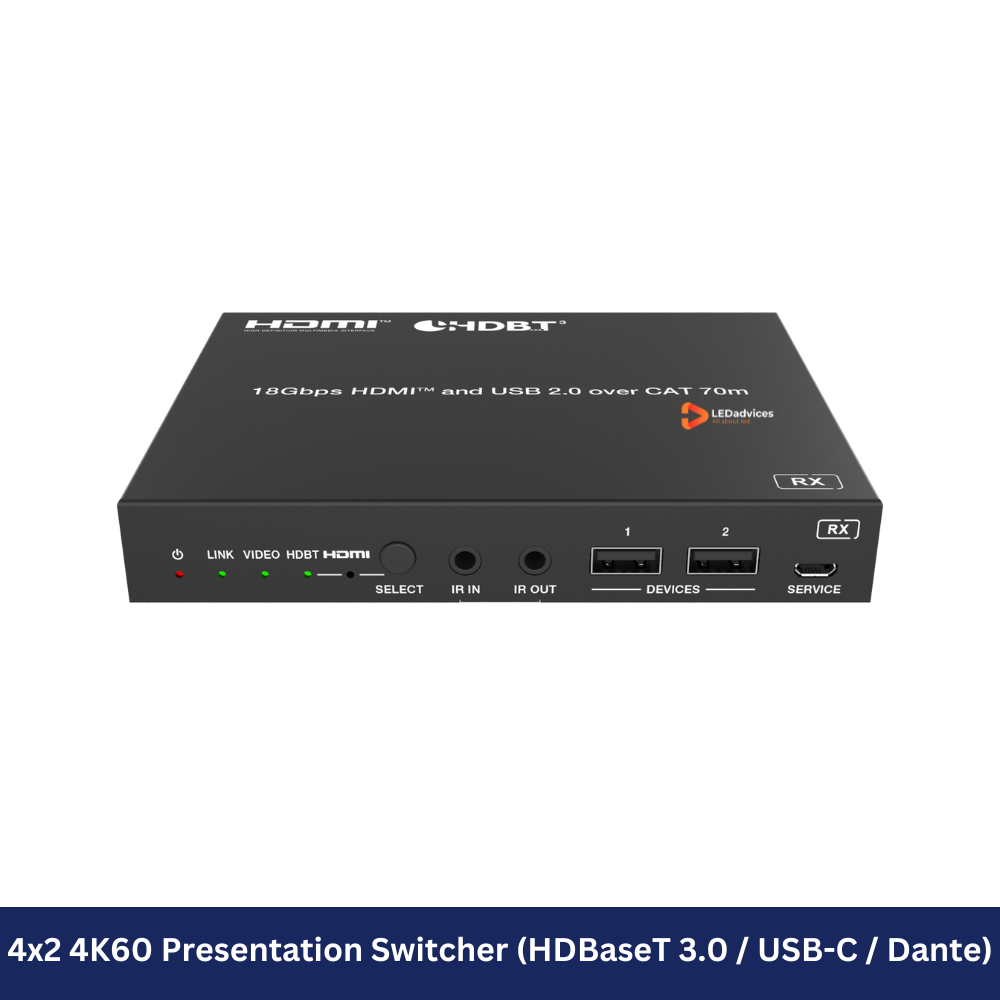

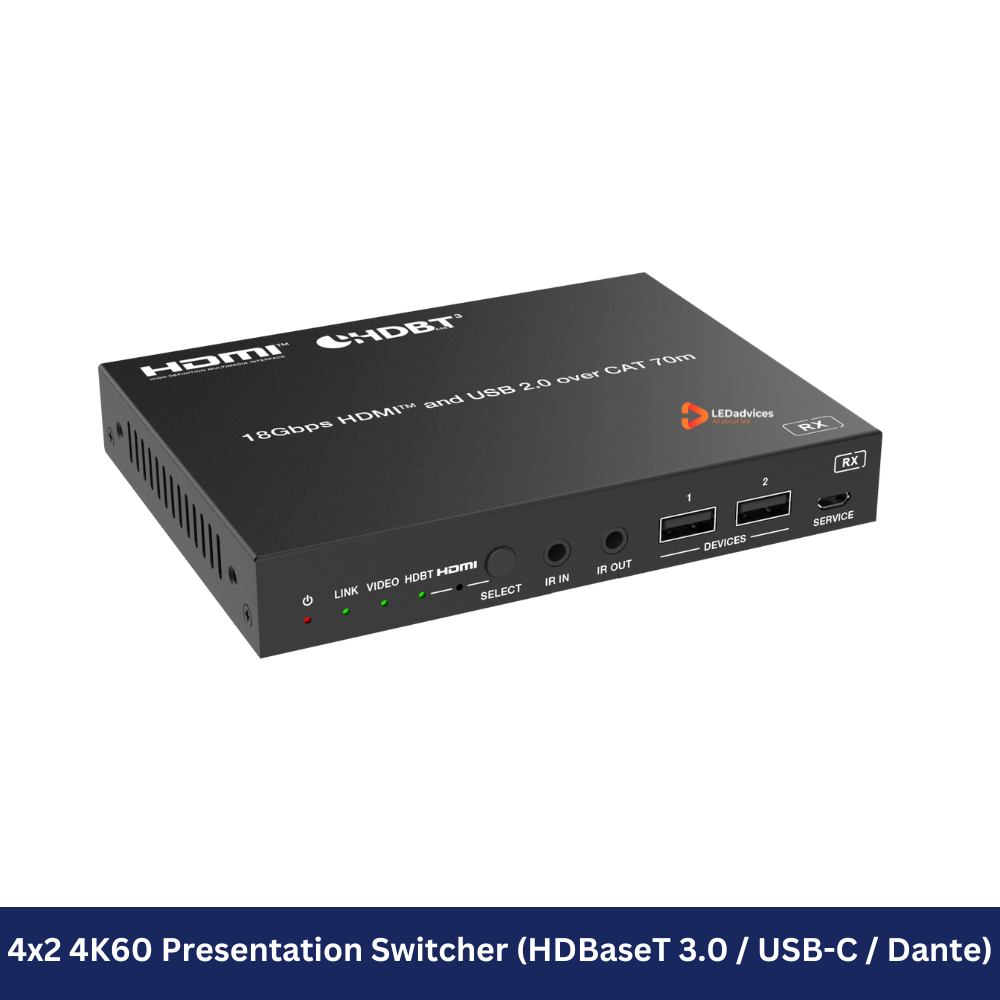

✅ Dual outputs: HDMI + HDBaseT 3.0 (up to 70m, with PoE support)
-
✅ Built-in scaler, equalizer, re-timer, and driver
-
✅ Dante audio and external analog audio embedding/de-embedding
-
✅ Intelligent EDID management
-
✅ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP, and Web GUI
Ideal for:
Corporate meeting rooms, higher education classrooms, multi-screen presentations, and AV systems requiring simultaneous dual display output with professional audio integration.
Download the technical specification sheet here - LINK
