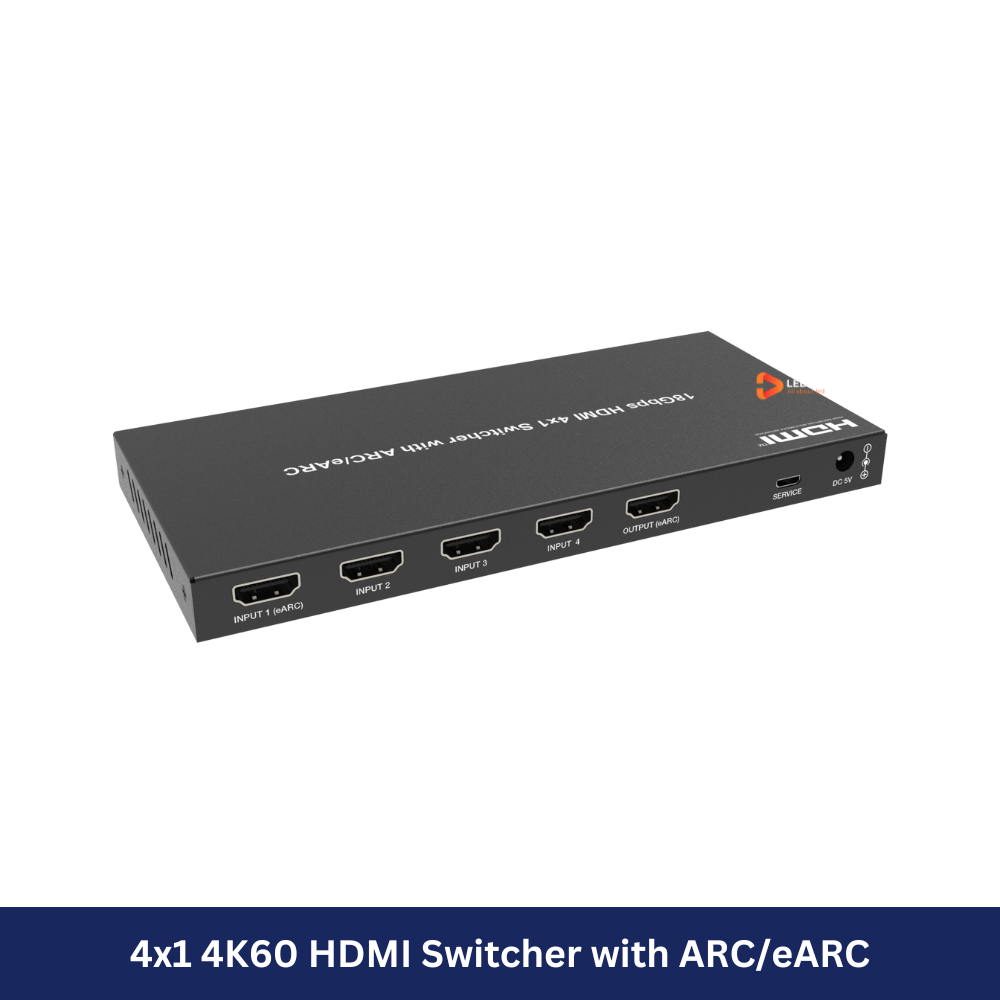

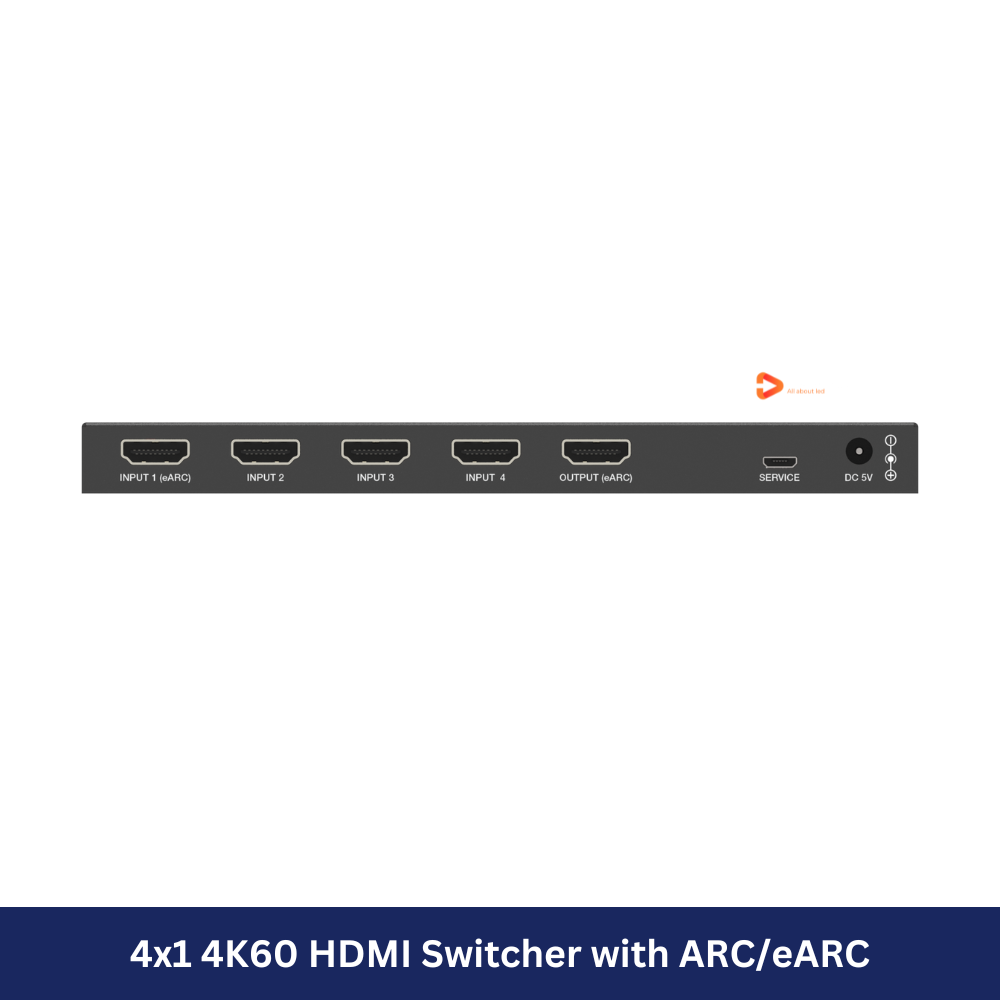

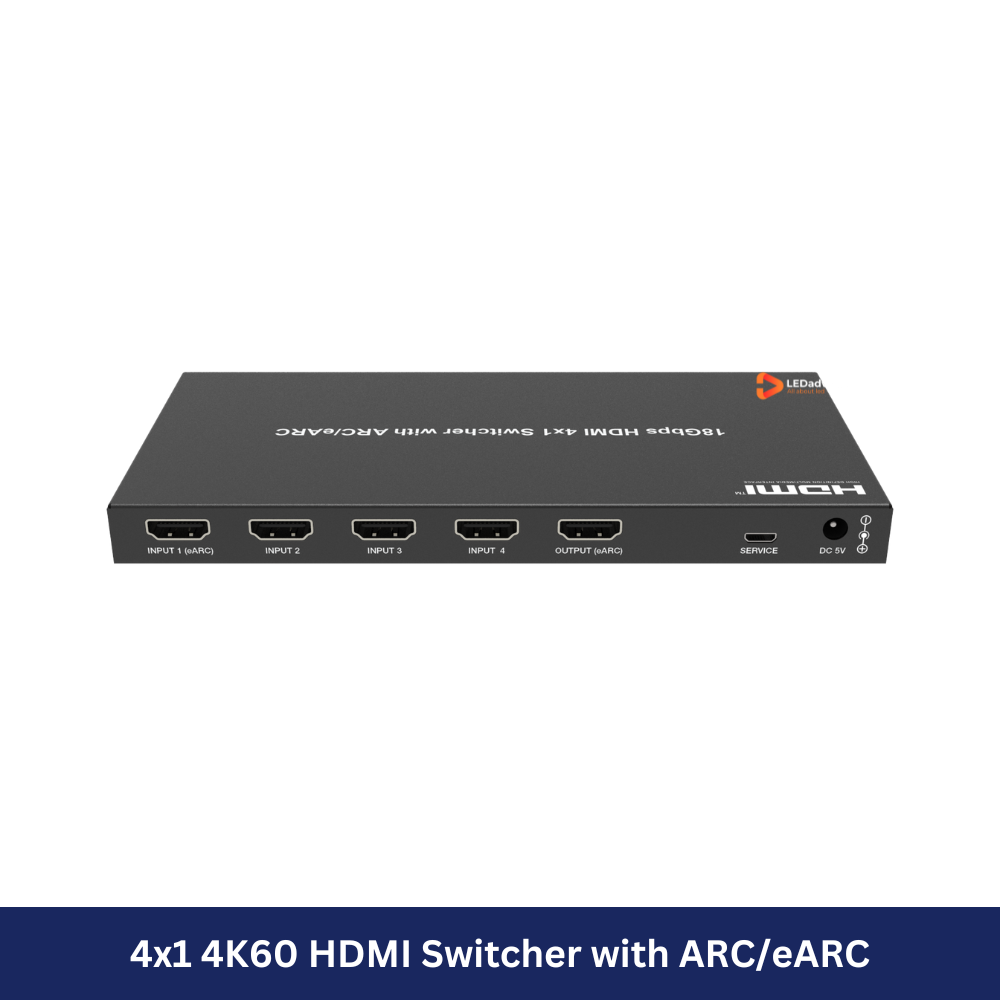

The HDC-SWB41AEU is a 4x1 HDMI switcher that allows four HDMI sources to be switched to a single HDMI display, supporting ultra-high-definition video resolutions up to 4K×2K@60Hz (RGB/YCbCr 4:4:4). Input 1 supports ARC/eARC for high-quality audio return, making it ideal for advanced home theater and professional AV setups.
This unit supports 18Gbps video bandwidth, 3D, HDR, HDR10, HDR10+, and Dolby Vision pass-through. It also handles a wide range of audio formats including Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and more. Intelligent EDID management ensures optimal compatibility, and switching can be done automatically or manually. Flexible control is available via front panel buttons and IR remote.
Key Features:
-
✅ Compliant with HDMI 2.0b, HDCP 2.2 / 1.x, and DVI 1.0
-
✅ Supports resolutions up to 4K×2K@60Hz RGB/YCbCr 4:4:4
-
✅ 18Gbps video bandwidth
-
✅ Pass-through for 3D, HDR, HDR10, HDR10+, Dolby Vision
-
✅ Audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
-
✅ Auto and manual input switching modes
-
✅ ARC/eARC audio return via Input 1
-
✅ Intelligent EDID management (Auto / 2.0CH / 5.1CH / 7.1CH)
-

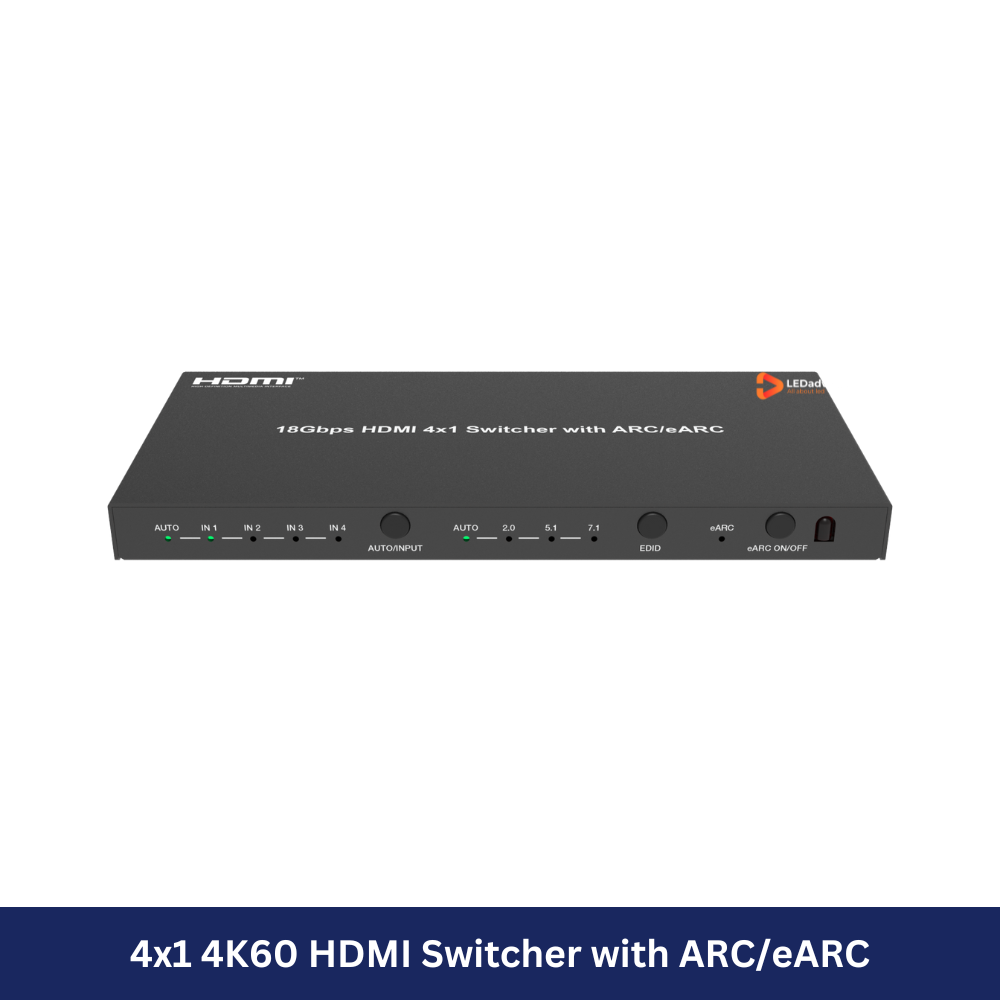

✅ Flexible control via front panel buttons and IR remote
Applications:
Perfect for conference rooms, broadcast systems, CCTV monitoring, home theater systems, and professional AV signal routing.
Download the technical specification sheet here - LINK
