The HDC-SWB41MV is a professional-grade 4x1 4K@60Hz HDMI Multi-Viewer Seamless Switcher designed to display multiple video sources on a single UHD or HD screen. It allows up to four HDMI inputs to be shown simultaneously or individually, with flexible layout arrangements and seamless switching between sources. This device is ideal for broadcasting, video conferencing, control rooms, exhibitions, and other demanding AV scenarios.
With support for 8 display modes, this unit offers powerful multi-window capabilities while maintaining high-definition output and audio flexibility. Advanced EDID management, OSD navigation, and versatile control methods make it user-friendly for professional environments.
✅
Key Features
-
HDMI 2.0b and HDCP 2.2/1.x compliant
-
Supports video bandwidth up to 18Gbps
-
Input/output resolutions up to 4K@60Hz (4:4:4, RGB or YCbCr)
-
Seamless switching between input sources in single-screen or multi-view modes
-
8 layout modes: SINGLE, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
-
Seamless switching in single-view mode, fast switching in multi-view modes
-

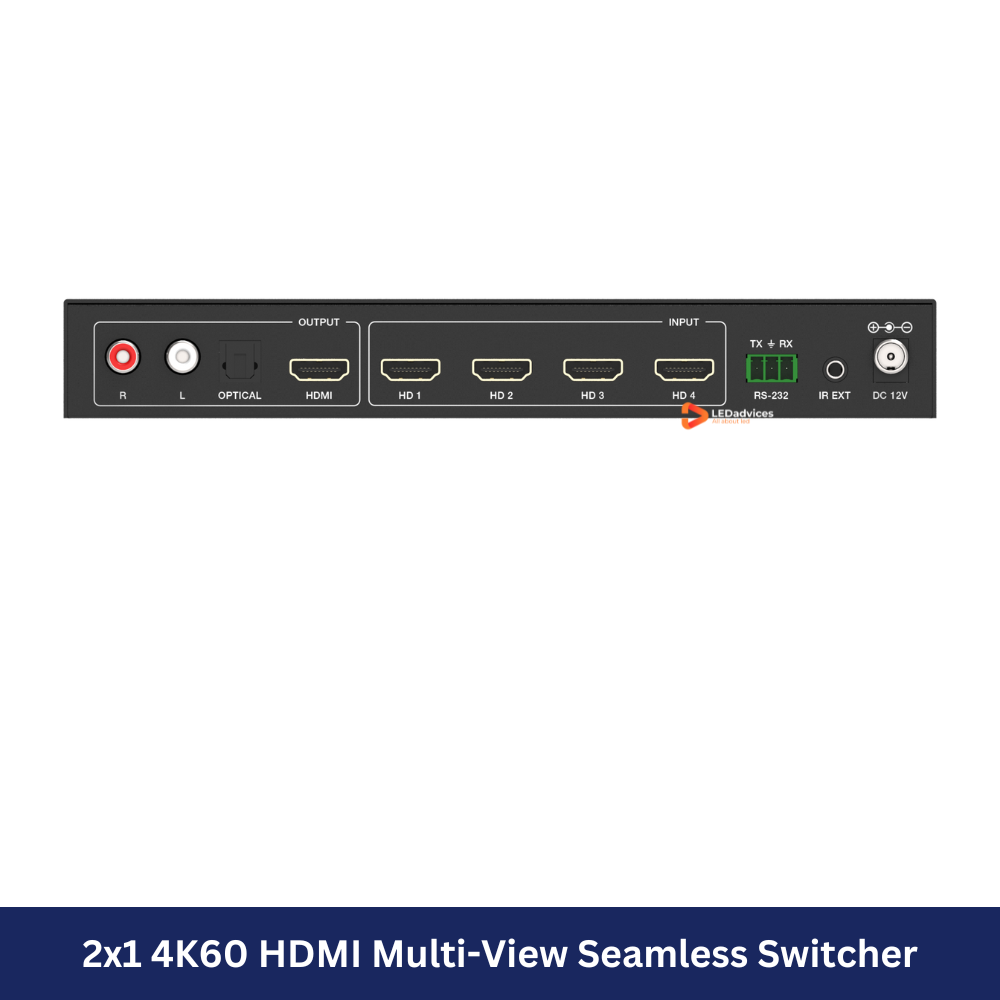

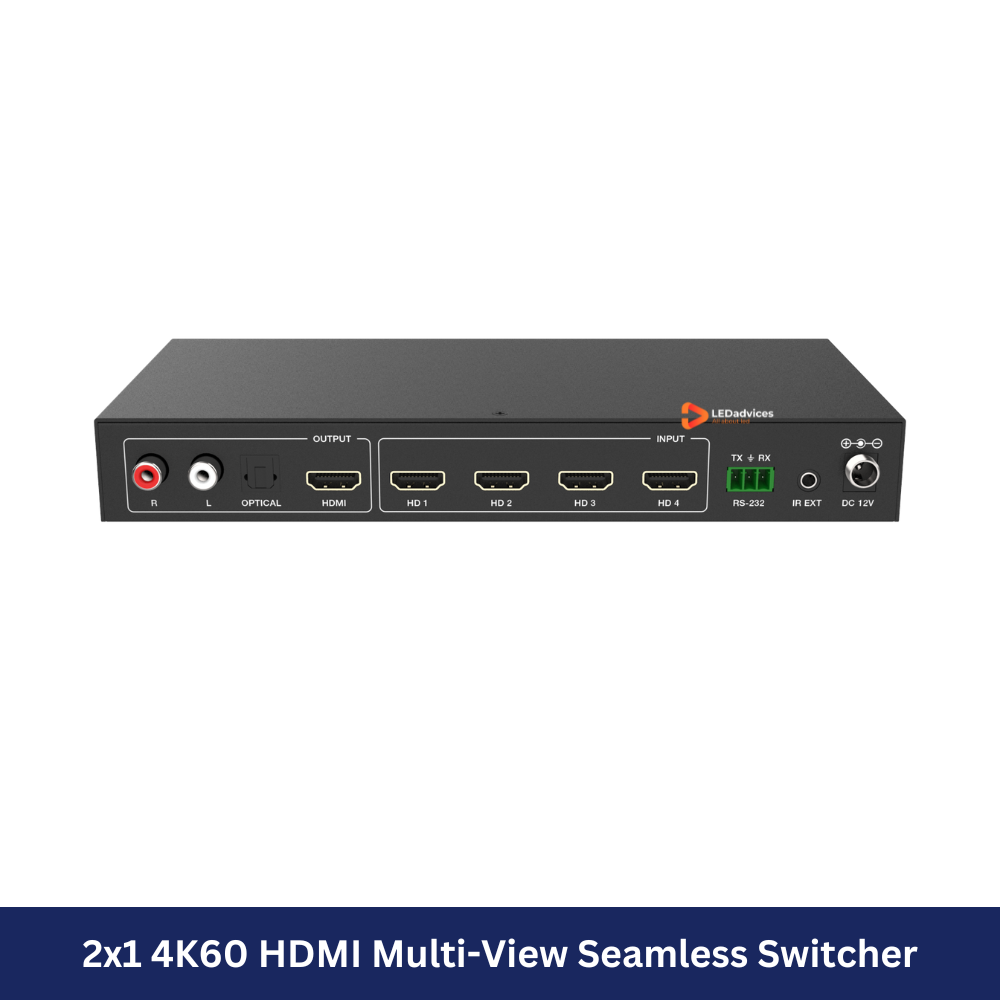

Audio de-embedding via analog and optical ports
-
Supports LPCM, AC3, DD+, DTS, DTS-HD up to 7.1 channels
-
Independent audio selection and volume control
-
Advanced OSD menu for layout and system configuration
-
Intelligent EDID management for optimized compatibility
-

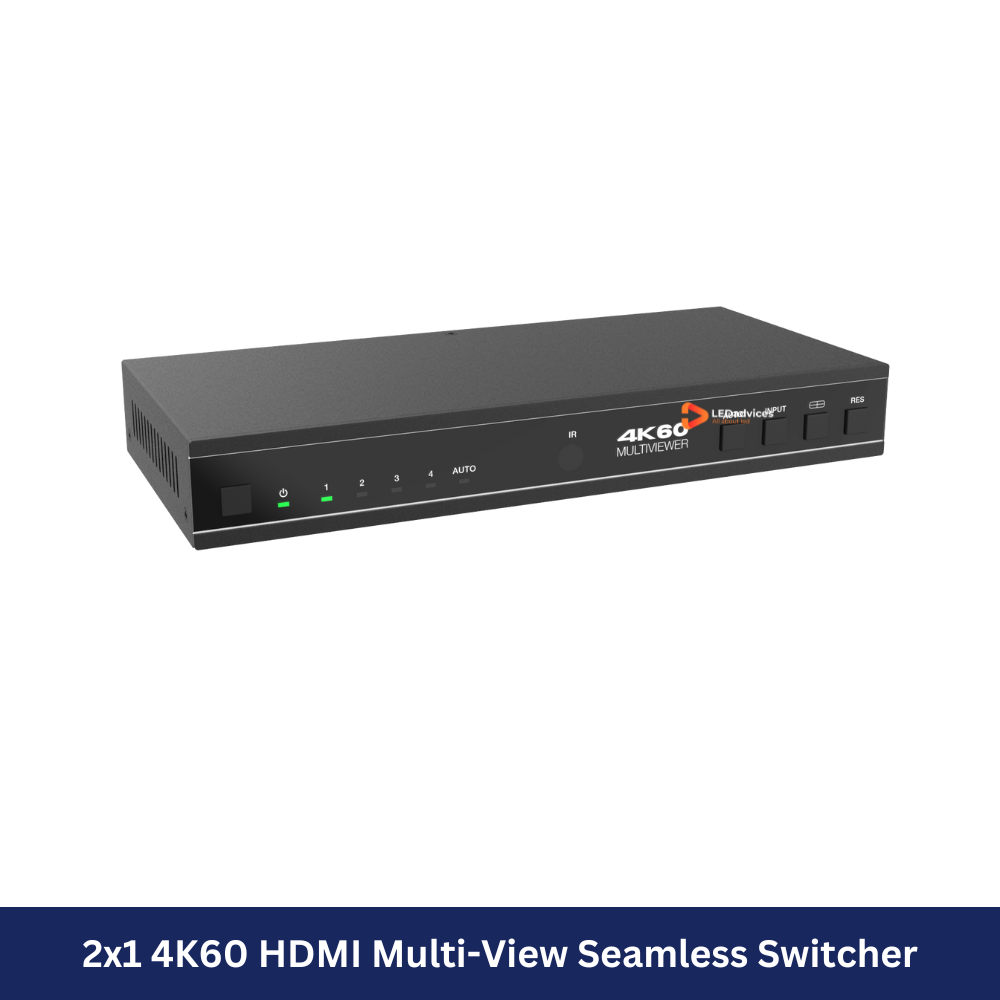

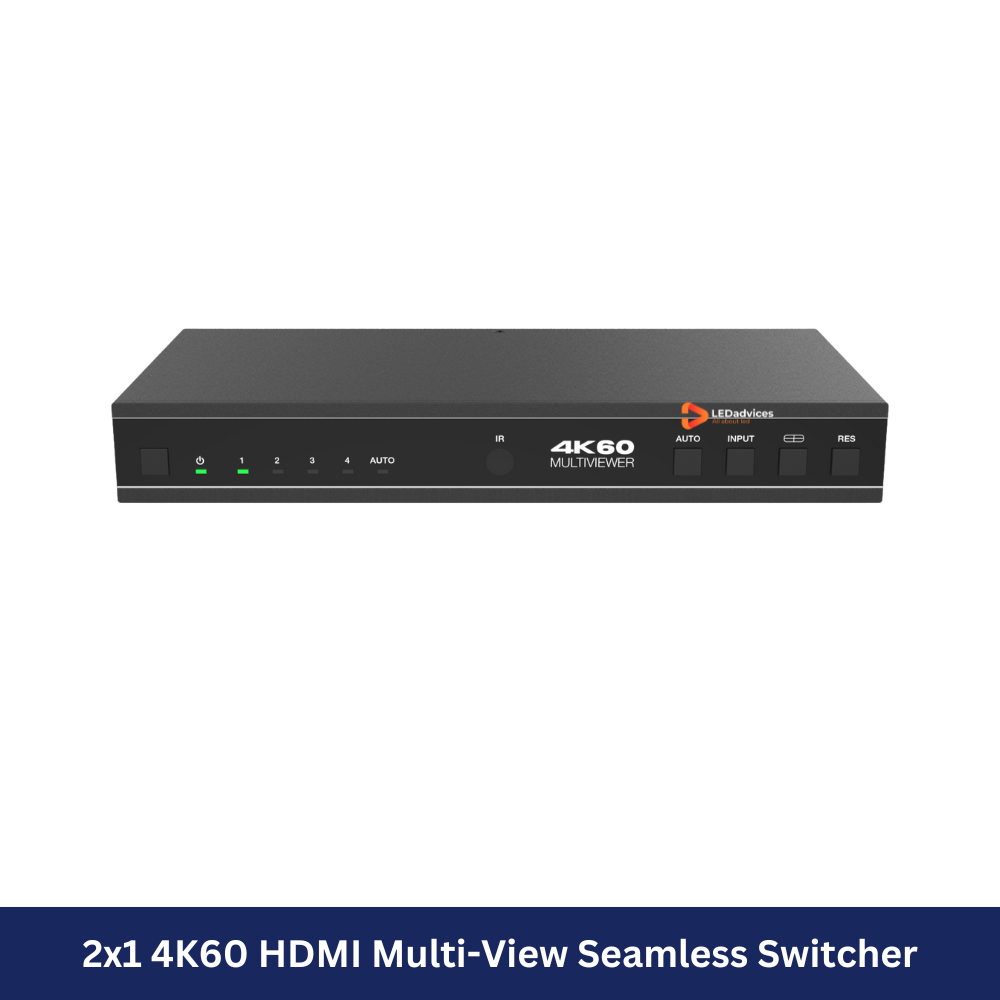

Control via front panel buttons, IR remote, OSD, PC software, or RS-232 commands
-
Compact and rack-mountable design for easy integration
📺
Application Scenarios
-
Live Broadcasting & Production
-
Multi-camera Surveillance Systems
-
Video Conferencing & Meeting Rooms
-
Exhibitions and Trade Shows
-
Control Centers & Command Rooms
-
Home Theaters or Gaming Setups with Multiple Inputs
Download the technical specification sheet here - LINK
