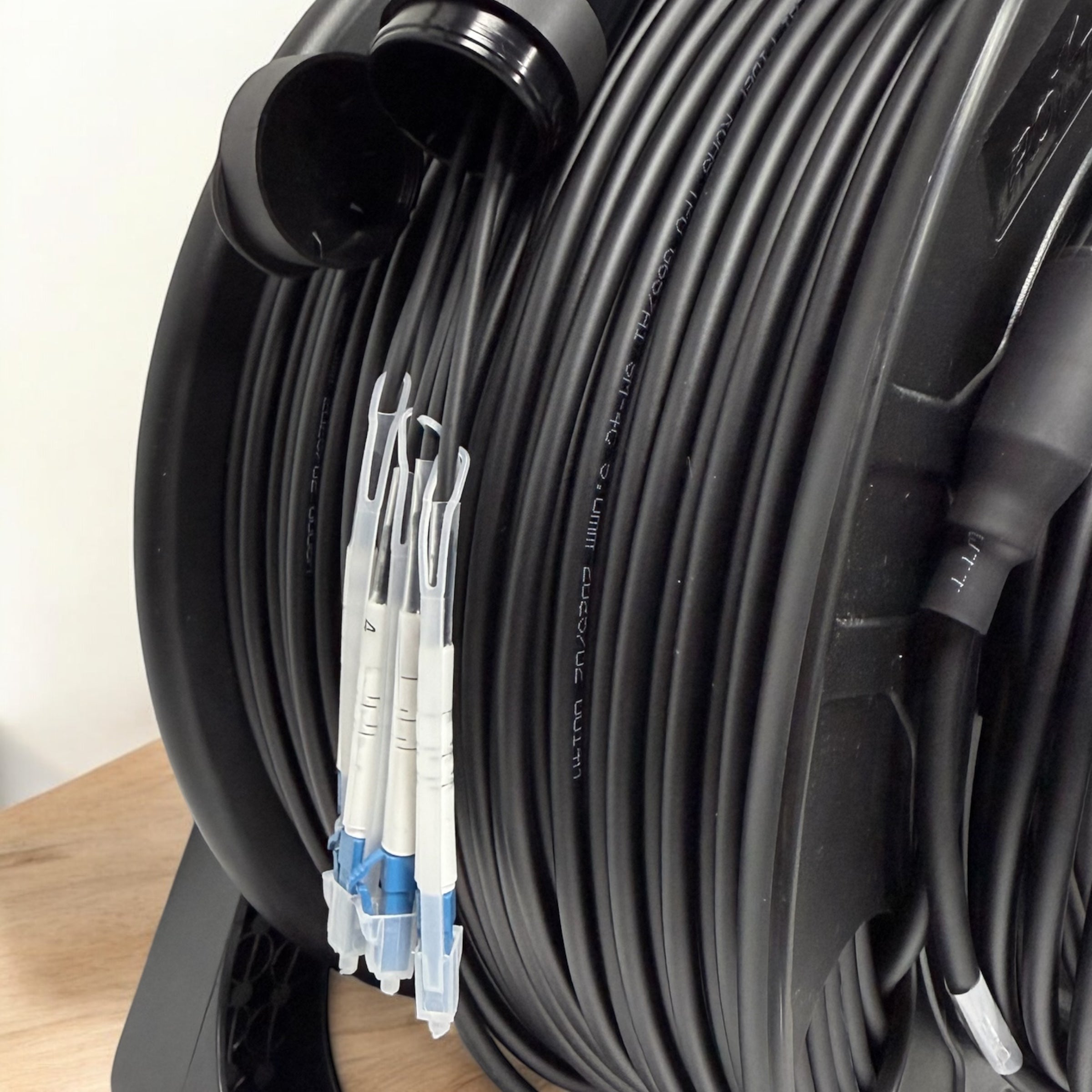

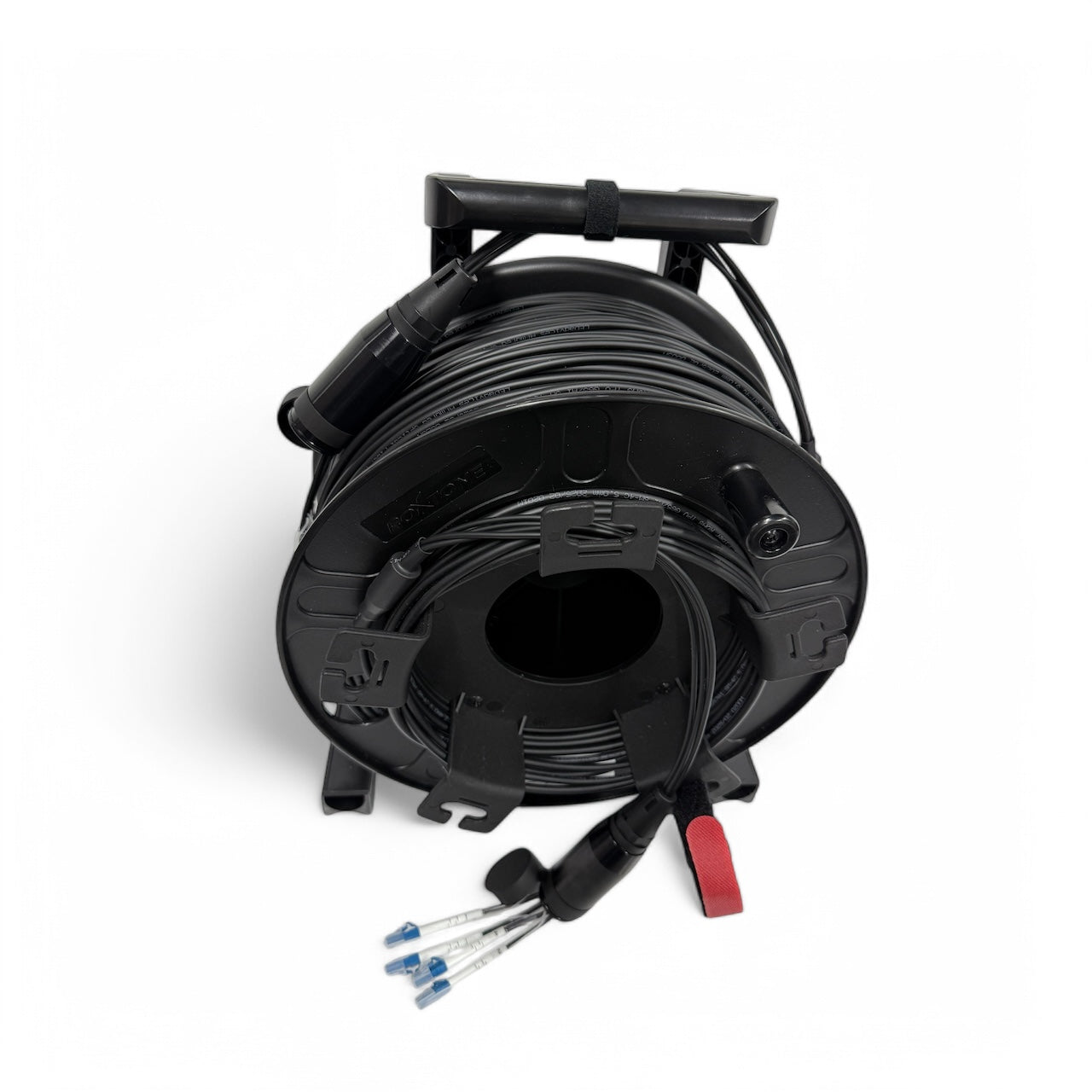

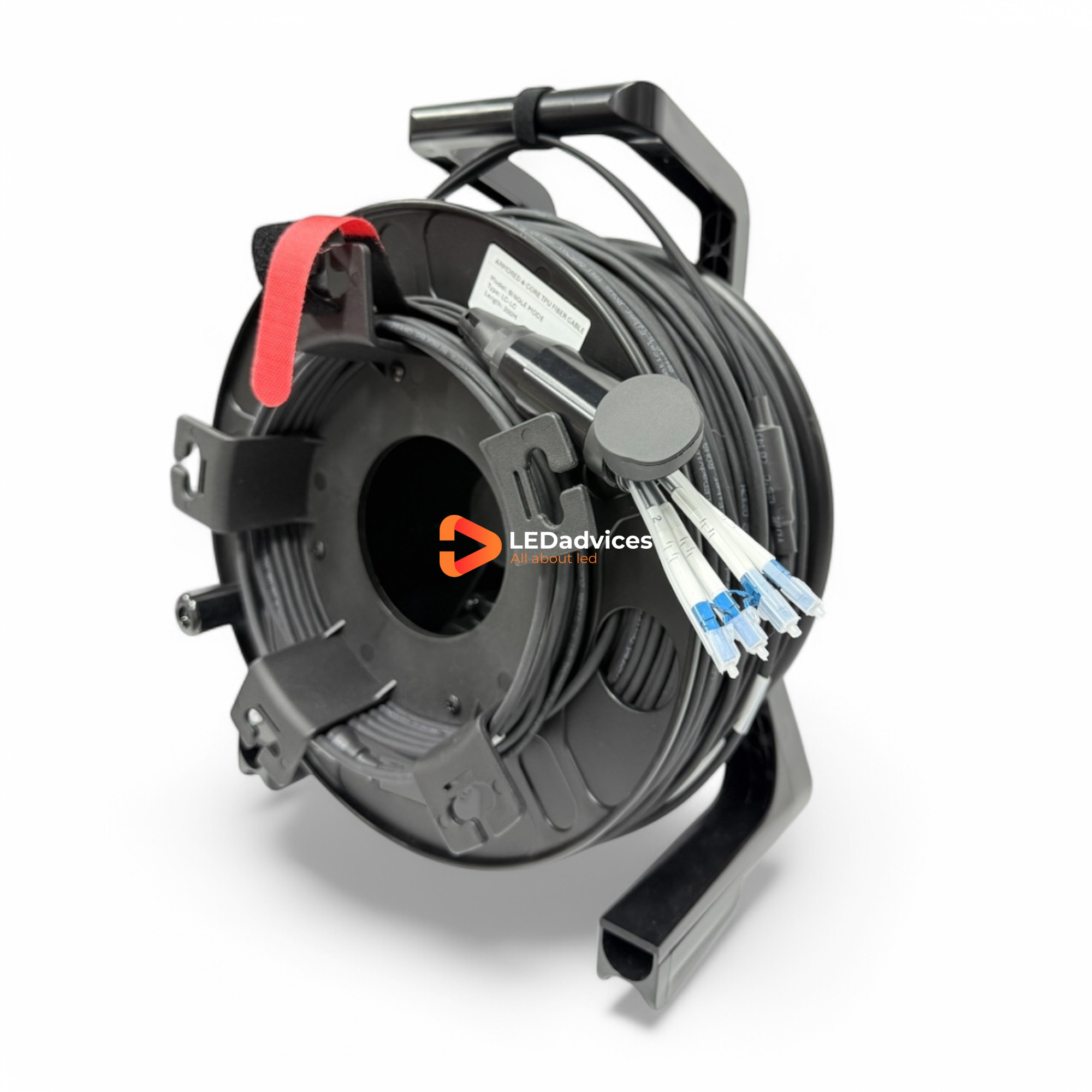

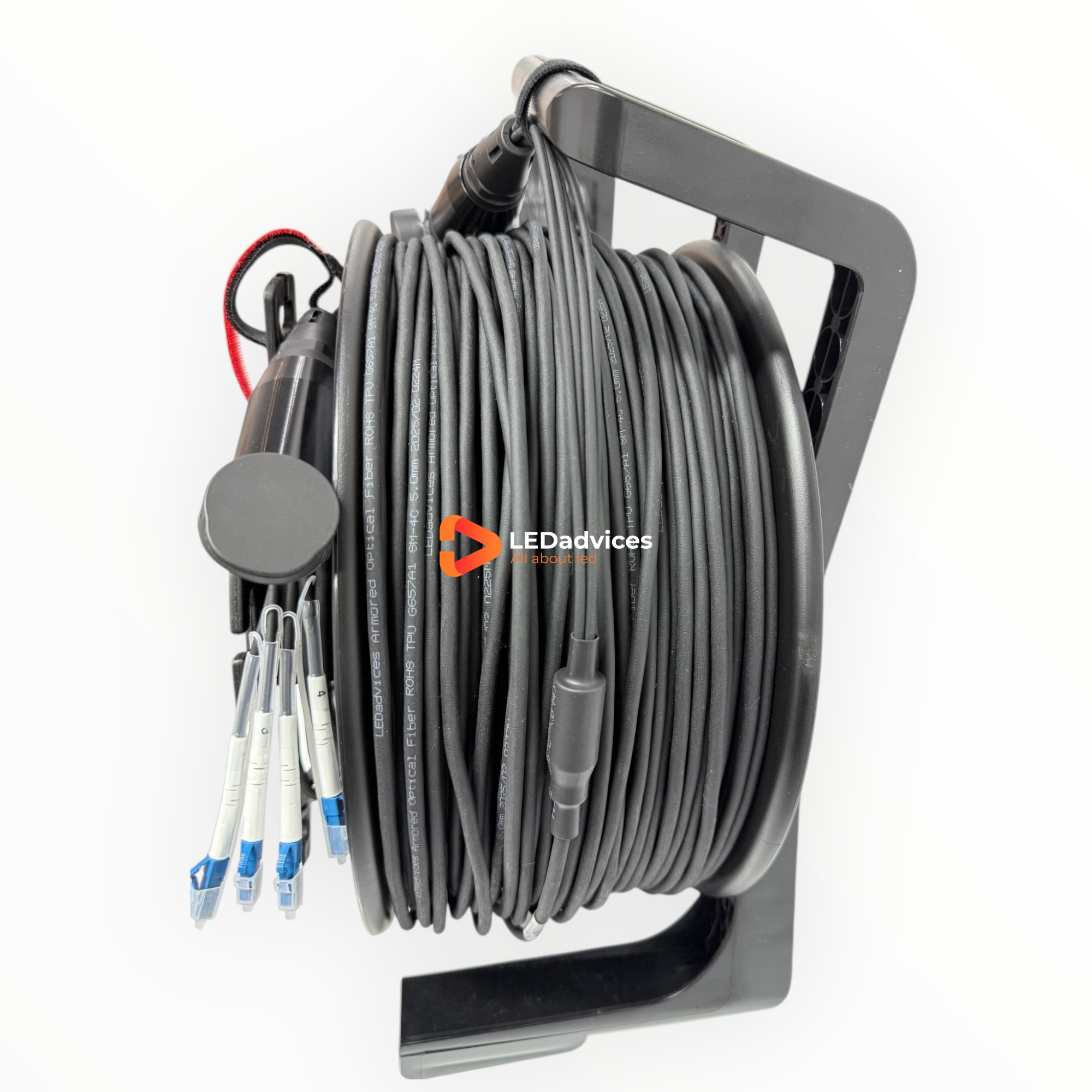

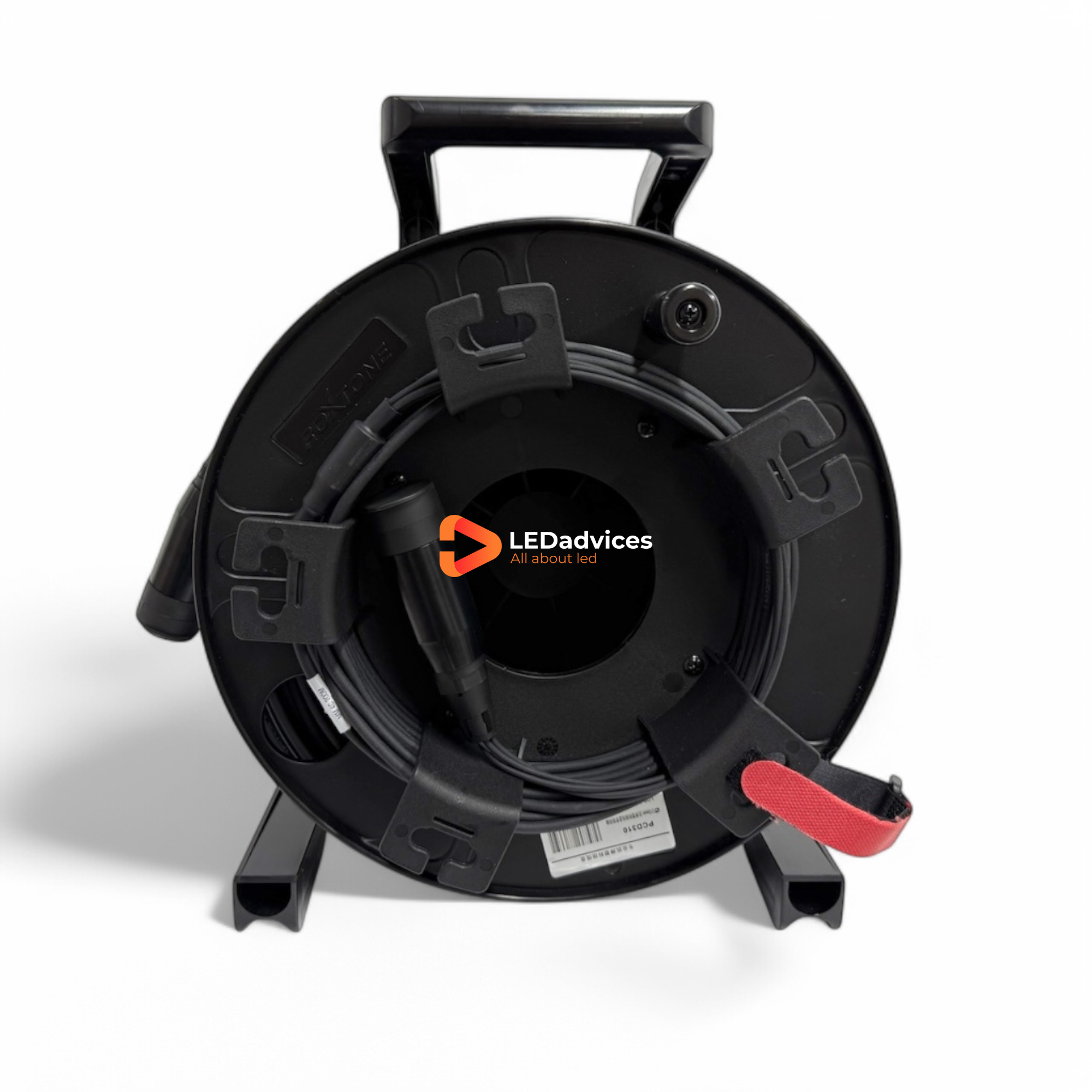

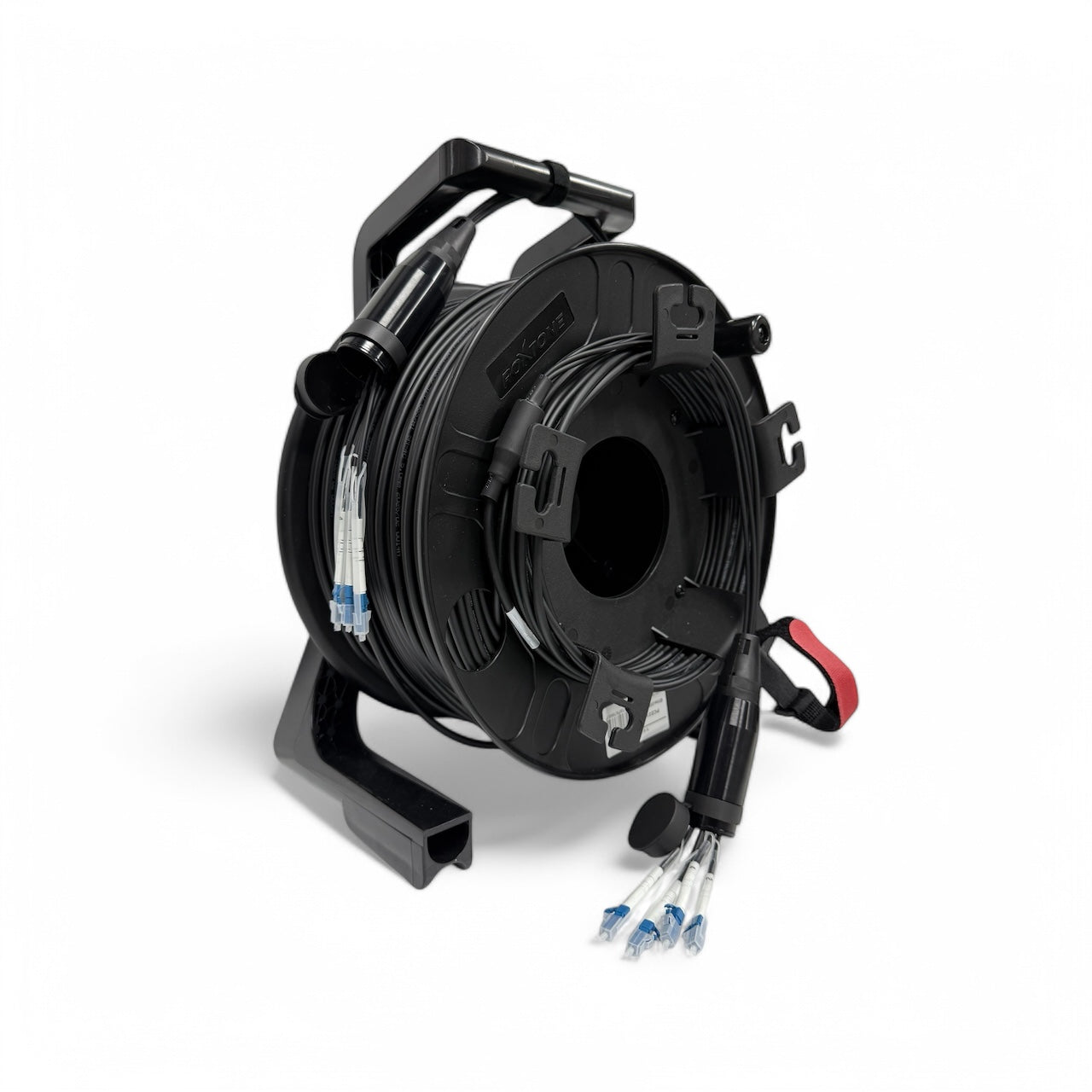

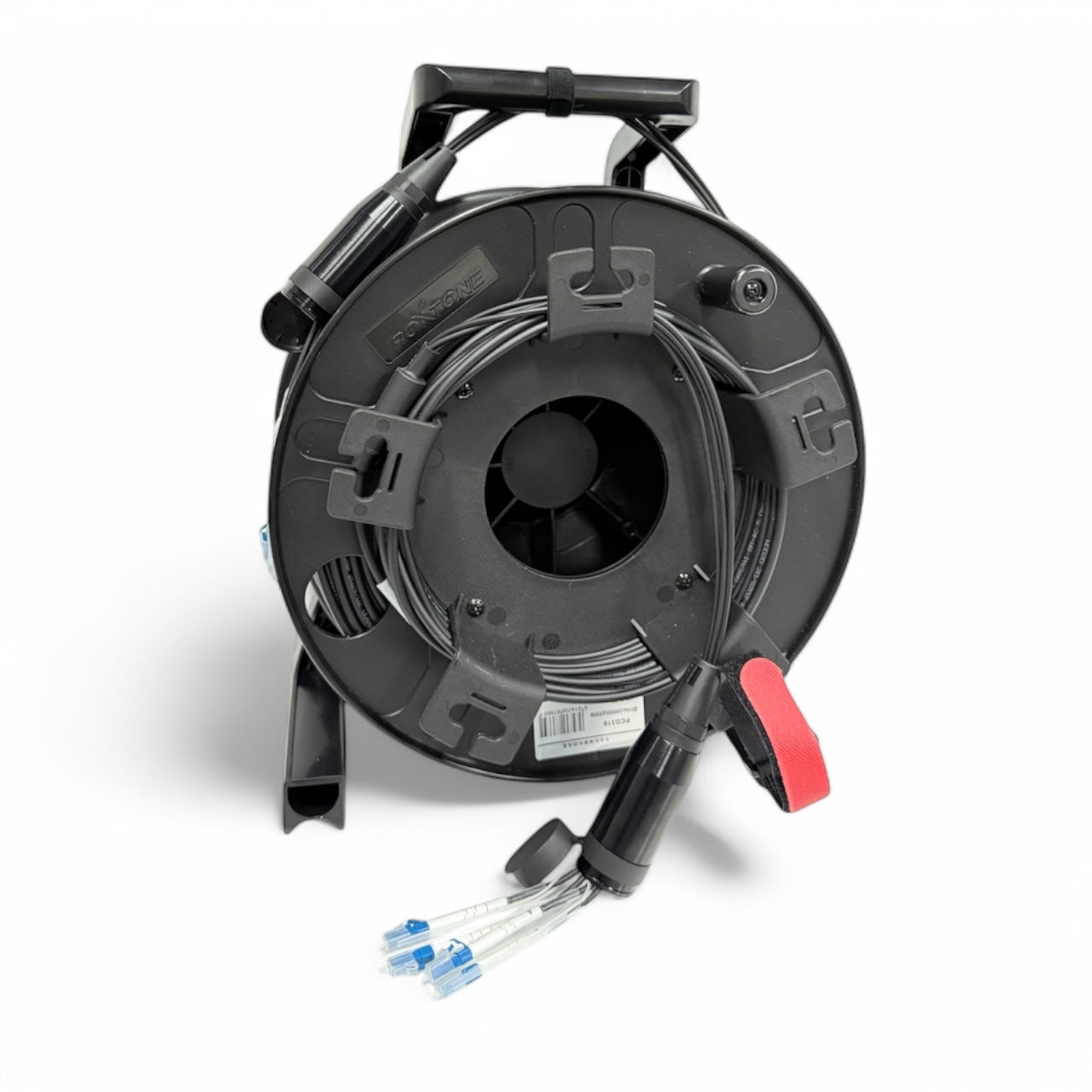

4-Core Single-Mode Armored Tactical Fiber Optic Cable LC-LC, TPU, Black

4-Core Single-Mode Armored Tactical Fiber Optic Cable

Product Description

The 4-Core Single-Mode Armored Tactical Fiber Optic Cable is designed for rugged outdoor environments, providing excellent durability and high-performance data transmission. It features tight-buffered G657A fiber for enhanced flexibility and a stainless steel spiral armor tube to resist mechanical impact and external pressure. Reinforced with Kevlar tensile fibers, this cable ensures superior mechanical strength while maintaining lightweight and flexible properties. The TPU outer sheath in black color provides excellent resistance to abrasion, chemicals, and extreme environmental conditions. The armored steel ring, braided, and aramid structure consists of five layers, offering exceptional durability. The cable is anti-rat bite, tensile, and compressive resistant and is available with LC, SC, ST, and FC connectors with a 1000mm branch. It is ideal for rental, live event staging, and networking applications.

Technical Specifications

• Fiber Type: 4-core single-mode, G657A tight-buffered fiber

• Armor: 5-layer armored steel ring, braided, and aramid structure

• Strength Member: Dupont Kevlar with metal weave

• Structural Layers: Tightly wrapped optical fiber + spiral-armored tube + Kevlar + metal braid + outer jacket

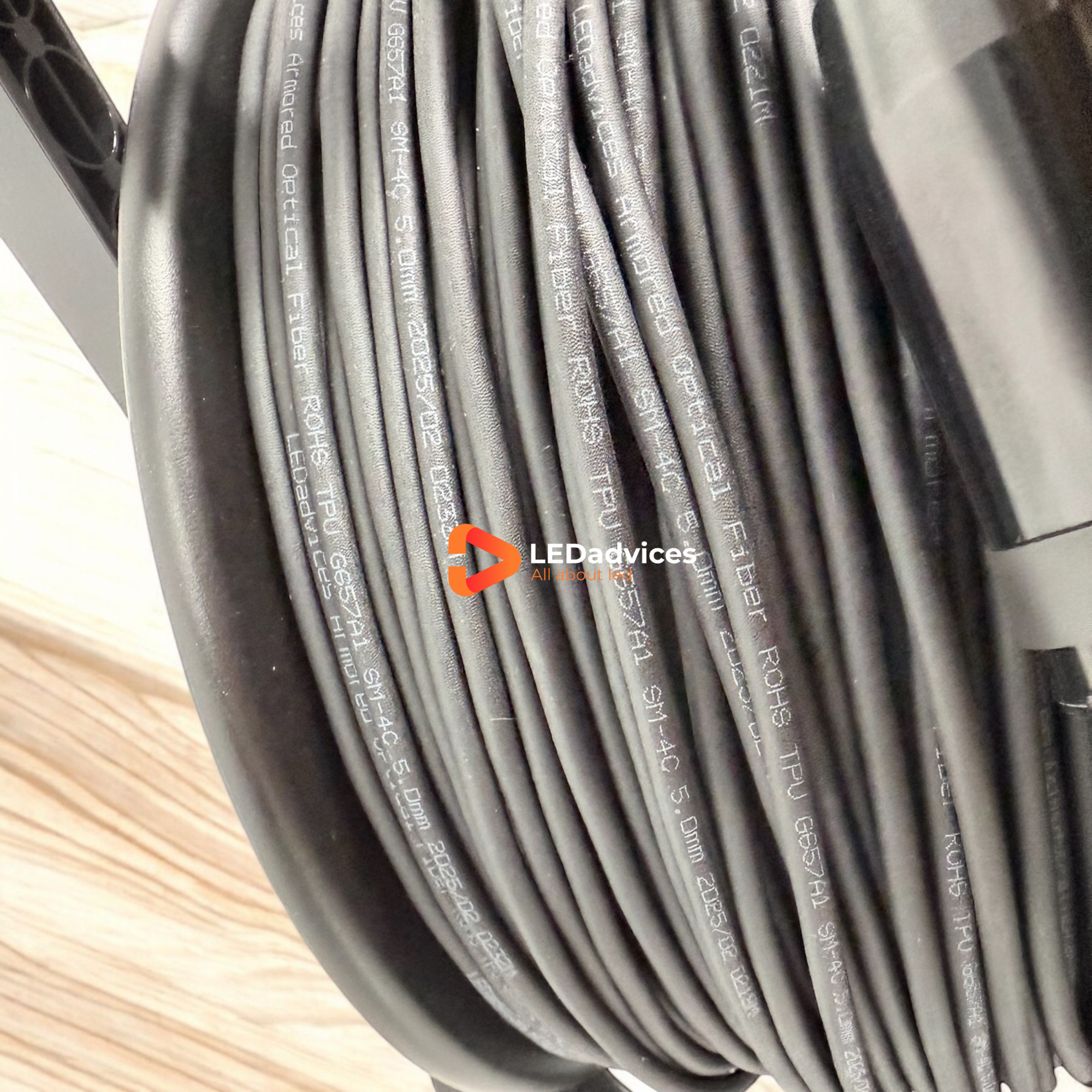

• Jacket Material: Matt frosted TPU

• Jacket Outer Diameter: 5.0mm ± 0.1mm

• Spiral Tube Material: SUS 204 Stainless steel

• Fiber Wavelength: 1310nm ~ 1550nm

• Attenuation Coefficient:

  • @1310nm: ≤ 0.4 dB/km

  • @1550nm: ≤ 0.3 dB/km

• Tensile Strength:

  • Long-term: 400N

  • Short-term: 800N

• Crush Resistance:

  • Long-term: 2000N/100mm

  • Short-term: 3000N/100mm

• Minimum Bending Radius:

  • Static: ≤ 50mm

  • Dynamic: ≤ 100mm

• Transmission Rate: 10Gb/s within 2000 meters

• Operating Temperature: -20~+85°C

• Connector Options: LC, SC, FC, ST (customizable)

Key Advantages

• Ruggedized Protection: Five-layer armored steel ring with Kevlar and metal weave provides superior resistance to crushing, cutting, and environmental hazards.

• High Strength & Flexibility: Kevlar reinforcement enhances tensile strength without compromising flexibility.

• Low Signal Attenuation: Ensures stable and high-speed data transmission over long distances.

• TPU Outer Jacket: Exceptional resistance to wear, UV radiation, and extreme temperatures, making it suitable for outdoor and harsh environments.

• Compact and Lightweight: 5.0mm diameter design for easy deployment and transport.

• Versatile Connectivity: Compatible with LC, SC, FC, and ST connectors for various networking and communication needs.

Application Scenarios

• Field Communication: Ideal for military, emergency response, and temporary communication networks.

• Outdoor Events & Broadcasting: Provides reliable high-speed optical transmission for concerts, sports events, and live streaming.

• Industrial & Harsh Environments: Suitable for mining, oil & gas, and other demanding industrial applications.

• Data Centers & Backbone Networks: Supports long-distance high-speed connections for enterprise and telecom infrastructure.

• Security & Surveillance Systems: Ensures stable optical connectivity for outdoor and remote CCTV setups.

This 4-Core Single-Mode Armored Tactical Fiber Optic Cable is the perfect solution for applications requiring high durability, flexibility, and superior performance in tough environments.
